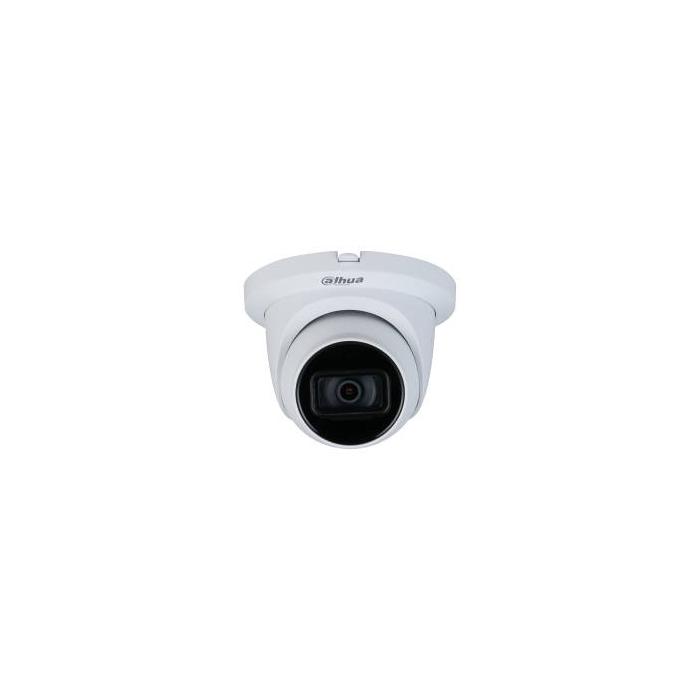

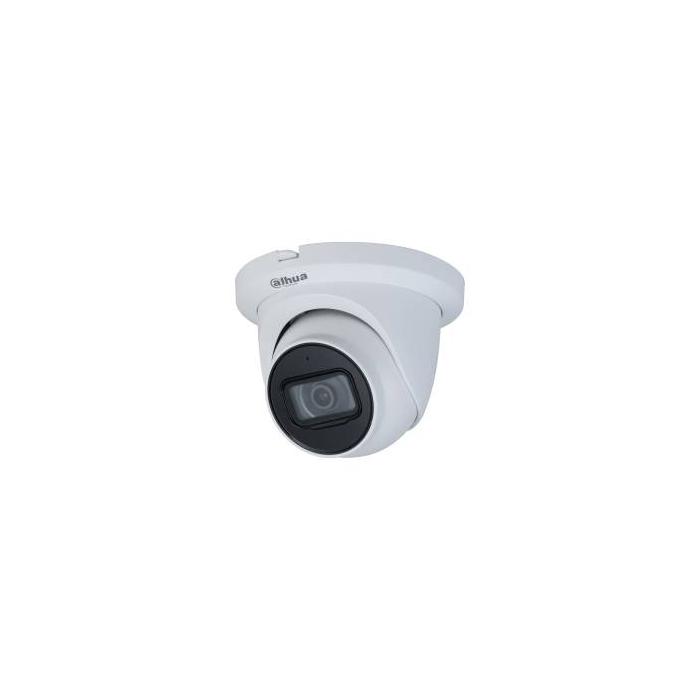

Dahua Technology Lite HAC-HDW1231TMQ-A Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
More info
Brand: DAHUA TECHNOLOGY
34.30 €Stock available: 0 units.
Unavailable
SKU:
106379
PRC:
526186
EAN:
6923172506887
PN:
DH-HAC-HDW1231TMQN-A-0280B
Description
White pad-type CCTV security camera designed for ceiling or wall installation both indoors and outdoors. The Dahua Technology Lite HAC-HDW1231TMQ-A offers a resolution of 1920 x 1080 pixels and works with wired connectivity. Its housing combines metal and plastic and achieves IP67 protection against dust and water, with a weight of 420 g. It features wide dynamic range (WDR) to balance scenes with marked light contrasts and works with a minimum illumination of 0.002 lx. You can orient the camera with pan, tilt and rotation control: the pan range reaches 0 to 360 degrees, the tilt 0 to 90 degrees and the rotation completes the full 360 degrees. White balance is adjustable in automatic or manual mode, as is the shutter speed, and the camera trigger is electronic.
Specifications
Performance
- Type: CCTV security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Certification: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Design
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: White
- Housing material: Metal, Plastic
- International Protection (IP) code: IP67
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.002 lx
- Angle of rotation: 360°
- Tilt angle range: 0 - 90°
- Pan range: 0 - 360°
- White balance: Auto, Manual
- Camera shutter type: Electronic
- Camera shutter speed: PAL: 1/25 s–1/100,000 s/PAL: 1/25 s–1/100,000 s
- Adjustment shutter speed: Auto/Manual
Image sensor
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Number of lenses: 1
- Detect distance: 82.8 m
- Observe distance: 33.1 m
- Recognize distance: 16.6 m
- Focal length range: 2.8 - 3.6 - 6 mm
- Maximum aperture number: 1.6
- Identify distance: 8.3 m
Night vision
- Night vision: Yes
- Night vision distance: 60 m
- LED type: IR
- Number of illumination LEDs: 2
Video
- Maximum resolution: 1920 x 1080 pixels
- Total megapixels: 2 MP
- Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
- Supported video modes: 720p, 1080p
- Frame rate: 30 fps
- Analog signal format system: PAL
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Privacy masking: Yes
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Smart IR: Yes
Audio
- Audio input channels: 1 channels
- Signal-to-Noise Ratio (SNR): 65 dB
Network
- Ethernet LAN: No
- Wi-Fi: No
- Bluetooth: No
Storage
- Built-in HDD: No
Ports & interfaces
- BNC output ports: 1
Security
- Mirror: Yes
Power
- Power source type: DC
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -40 - 60 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Height: 99.1 mm
- Diameter: 12.2 cm
- Weight: 420 g
Packaging data
- Package weight: 620 g
Packaging content
- Number of cameras: 1
