Name: D-Link DWL-8620AP wireless access point 2533 Mbit/s White Power over Ethernet (PoE)
Brand: D-LINK
Availability: OutOfStock

D-Link DWL-8620AP wireless access point 2533 Mbit/s White Power over Ethernet (PoE)

Not avaliable

D-Link DWL-8620AP wireless access point 2533 Mbit/s White Power over Ethernet (PoE). More info

Amount

Brand: D-LINK

SKU: 85995 PRC: 299617 EAN: 790069441400 PN: DWL-8620AP

Description

Specifications

Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate: 2533 Mbit/s
Maximum data transfer rate (2.4 GHz): 800 Mbit/s
Maximum data transfer rate (5 GHz): 1733 Mbit/s
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE
Automatic channel selection: Yes
MIMO: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Fast roaming: Yes
Band steering: Yes
Airtime Fairness (ATF): Yes
Quality of Service (QoS) support: Yes

Security

Security algorithms: AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
MAC address filtering: Yes
Number of SSID supported: 32
Auto Wireless Distribution System (WDS): Yes

Protocols

Management protocols: SNMP v1/v2c/v3

Management features

Command-line interface (CLI): Yes

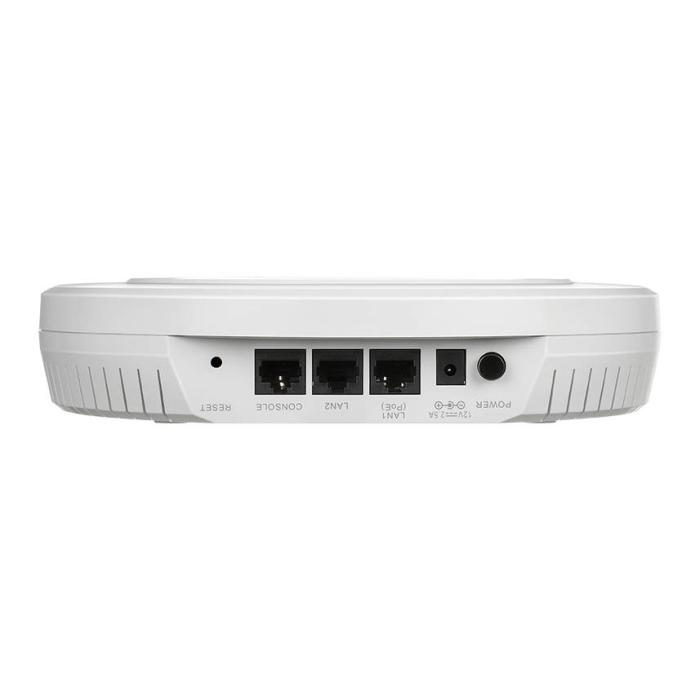

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
AC input voltage: 12 V
Input current: 2.5 A
Power consumption (max): 24.24 W

Design

Product colour: White
Housing material: Plastic

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antennas quantity: 2
Antenna gain level (max): 4 dBi

Technical details

Shipping (inner) case length: 44.9 cm
Shipping (inner) case width: 31.2 cm
Shipping (inner) case height: 32.8 cm
Shipping (inner) case net weight: 7.33 kg
Products per shipping (inner) case: 5 pc(s)
Pallet gross weight (air): 222.3 kg
Master (outer) cases per pallet (air): 24 pc(s)
Products per pallet (air): 120 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 144.7 cm
Pallet gross weight (sea): 272 kg
Master (outer) cases per pallet (sea): 30 pc(s)
Products per pallet (sea): 150 pc(s)
Pallet height (sea): 177.5 cm
Shipping (inner) case gross weight: 8.2 kg

Certificates

Certification: CE

Weight & dimensions

Width: 220 mm
Depth: 220 mm
Height: 47 mm
Weight: 790 g

Packaging data

Package width: 295 mm
Package depth: 296 mm
Package height: 94 mm
Package weight: 1.47 kg

Packaging content

Quantity per pack: 1 pc(s)
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 0 - 40%
Operating temperature (T-T): -20 - 65 °C
Storage temperature (T-T): 10 - 90 °C
Storage relative humidity (H-H): 5 - 95%

Logistics data

Harmonized System (HS) code: 85176990
