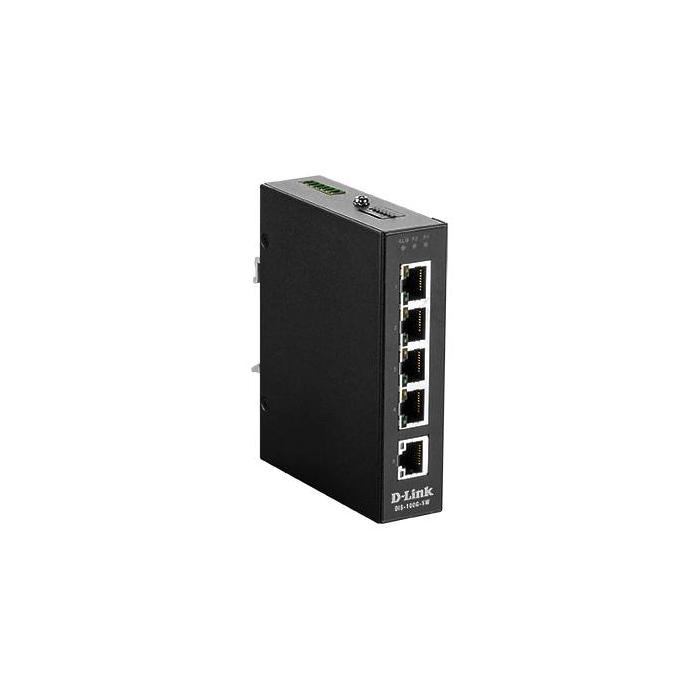

D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

Not avaliable

D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black.   More info

Brand: D-LINK
SKU: 80713 PRC: 210545 EAN: 790069437908 PN: DIS-100G-5W

Description

Specifications

Management features

  • Switch type: Unmanaged
  • Switch layer: L2
  • Traffic shaping: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3z
  • 10G support: No
  • Full duplex: Yes
  • Flow control support: Yes
  • Broadcast storm control: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • Switching capacity: 10 Gbit/s
  • Forwarding rate: 7.44 Mpps
  • MAC address table: 2000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: No
  • Product colour: Black
  • LED indicators: LAN, Power
  • Wall mountable: Yes

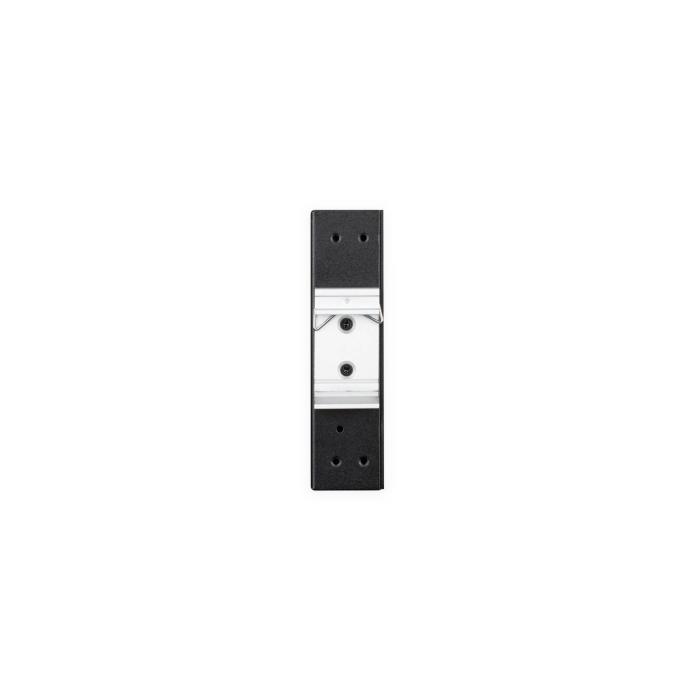

  • DIN rail mounting: Yes
  • Electromagnetic compatibility: FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)

Power

  • DC input voltage: 12 - 58 V
  • Power consumption (max): 3.57 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): -40 - 75 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Heat dissipation: 12.18 BTU/h

Weight & dimensions

  • Width: 112.2 mm
  • Depth: 29.1 mm
  • Height: 89.4 mm
  • Weight: 300 g

Packaging data

  • Package width: 140 mm
  • Package depth: 178 mm
  • Package height: 83 mm
  • Package weight: 500 g

Technical details

  • Shipping (inner) case height: 20.5 cm
  • Shipping (inner) case width: 30.5 cm
  • Shipping (inner) case length: 44 cm
  • Shipping (inner) case net weight: 5 kg
  • Products per shipping (inner) case: 10 pc(s)
  • Pallet gross weight (air): 220 kg
  • Master (outer) cases per pallet (air): 36 pc(s)
  • Products per pallet (air): 360 pc(s)
  • Pallet gross length: 120 cm
  • Pallet gross width: 110 cm
  • Pallet height (air): 136.5 cm
  • Pallet gross weight (sea): 321.6 kg
  • Master (outer) cases per pallet (sea): 54 pc(s)
  • Products per pallet (sea): 540 pc(s)
  • Pallet height (sea): 198 cm
  • Shipping (inner) case gross weight: 5.64 kg

Certificates

  • Certification: IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE

Logistics data

  • Harmonized System (HS) code: 85176990
