Description

Specifications

Features


  • UPS topology: Double-conversion (Online)
  • Output power capacity: 1 kVA
  • Output power: 900 W
  • Waveform: Pure sine
  • Input operation voltage (min): 160 V
  • Input operation voltage (max): 300 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (min): 208 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Maximum current: 4.5 A
  • Surge energy rating: 345 J
  • Response time: 0 ms
  • Efficiency (ECO mode): 95%
  • Input power factor: 0.98
  • Output power factor: 0.9
  • Crest factor: 3:1
  • ECO mode: Yes
  • Emergency Power Off (EPO): Yes
  • Output voltage Total Harmonic Distortion (THD): 3%
  • EMI/RFI noise filtering: Yes
  • Power protection features: Overload
  • Audible alarm(s): Yes
  • Audible alarm modes: Battery replacement, Fault, Overload alarm

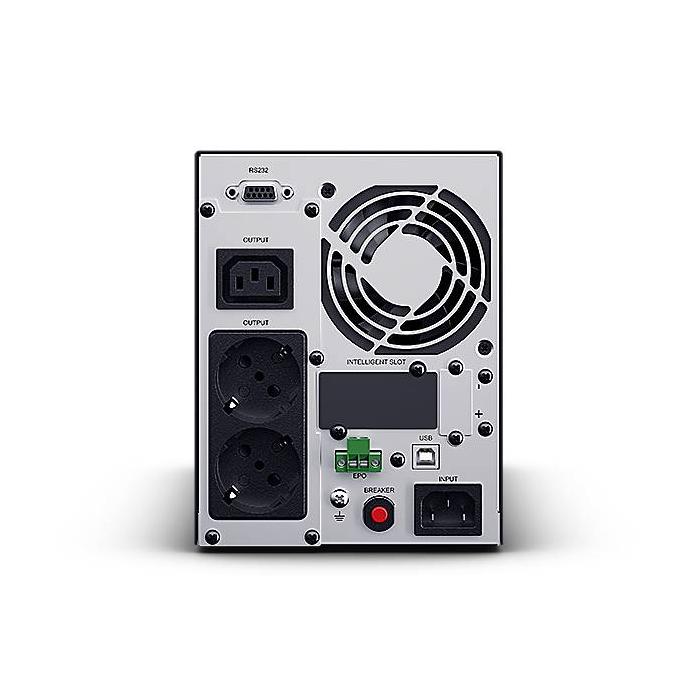

Ports & interfaces


  • AC outlet types: IEC 320
  • Power plug: C13 coupler
  • AC outlets quantity: 3 AC outlet(s)
  • USB port: Yes

Battery


  • Battery technology: Sealed Lead Acid (VRLA)
  • Typical backup time at full load: 4 min
  • Typical backup time at half load: 11 min
  • Battery life (max): 4 year(s)
  • Charging current: 1.5 A

Design


  • Form factor: Tower
  • Housing material: Metal
  • Cable length: 1.5 m
  • Built-in fan: Yes
  • Product colour: Black
  • Display type: LCD

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 50 °C
  • Operating relative humidity (H-H): 20 - 90%
  • Storage relative humidity (H-H): 10 - 90%
  • Operating altitude: 0 - 1500 m
  • Non-operating altitude: 0 - 1500 m

Certificates


  • Compliance certificates: CE, RoHS

Packaging content


  • Cables included: USB cable
  • Manual: Yes

Weight & dimensions


  • Width: 140 mm
  • Depth: 327 mm
  • Height: 191 mm
  • Weight: 9.4 kg

Packaging data


  • Package width: 241 mm
  • Package depth: 510 mm
  • Package height: 313 mm
  • Package weight: 14.6 kg

Logistics data


  • Harmonized System (HS) code: 8504408590
  • Country of origin: China
