Description

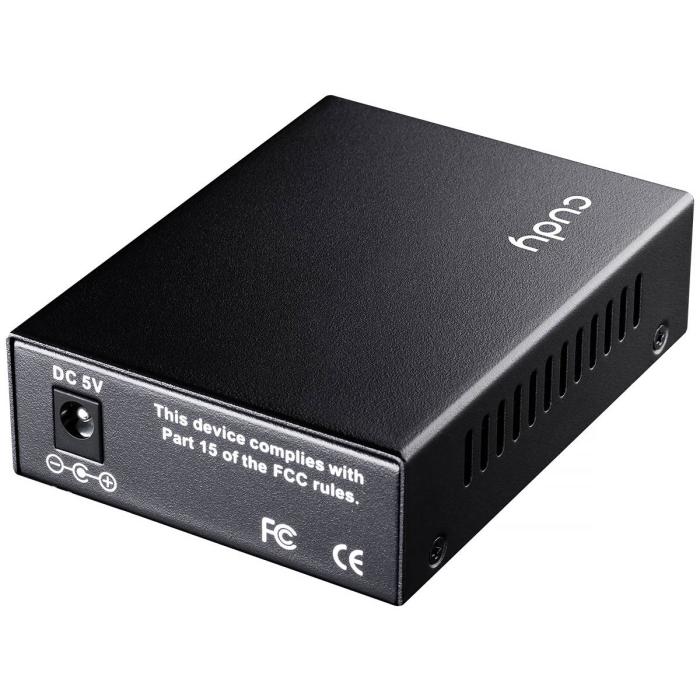

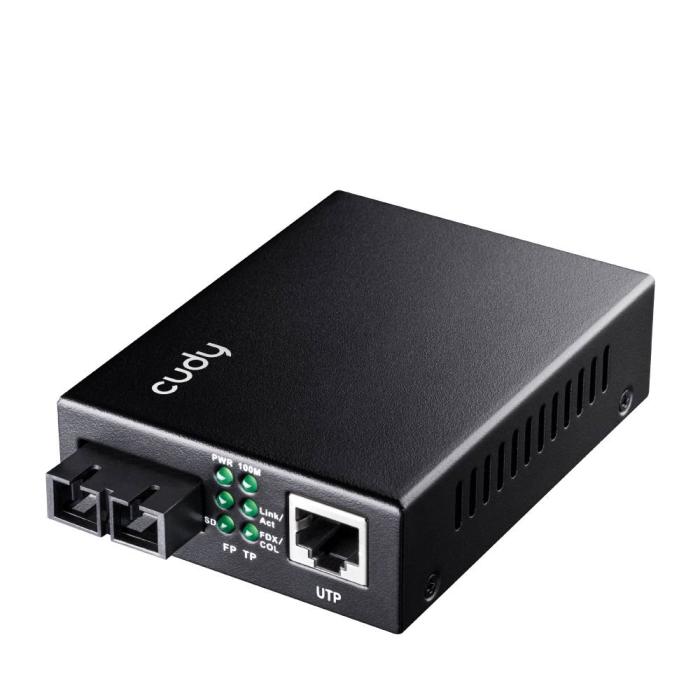

Converts copper to fibre signals with the CUDY MC100GSA-20 media converter, a Gigabit Ethernet unit in black designed for professional networks. This single-mode model operates at a wavelength of 1310 nm and achieves a maximum transfer distance of 20 km, with a sensitivity of 24 dBmW and a mean time between failures of 50,000 hours. It features one RJ-45 Ethernet port and one fibre channel port with an SC connector, plus support for 9 KB jumbo frames and Plug and Play functionality for immediate installation. LED indicators facilitate link monitoring, integrating a 9 KB buffer to manage traffic at 10, 100, or 1000 Mbit/s.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Jumbo frames support: Yes
- Jumbo frames: 9
Performance
- Maximum transfer distance: 20000 m
- Wavelength: 1310 nm
- Fiber mode structure: Single-mode
- Sensitivity: 24 dBmW
- Buffer size: 9 KB
- Mean time between failures (MTBF): 50000 h
Features
- Internal: No
- Plug and Play: Yes

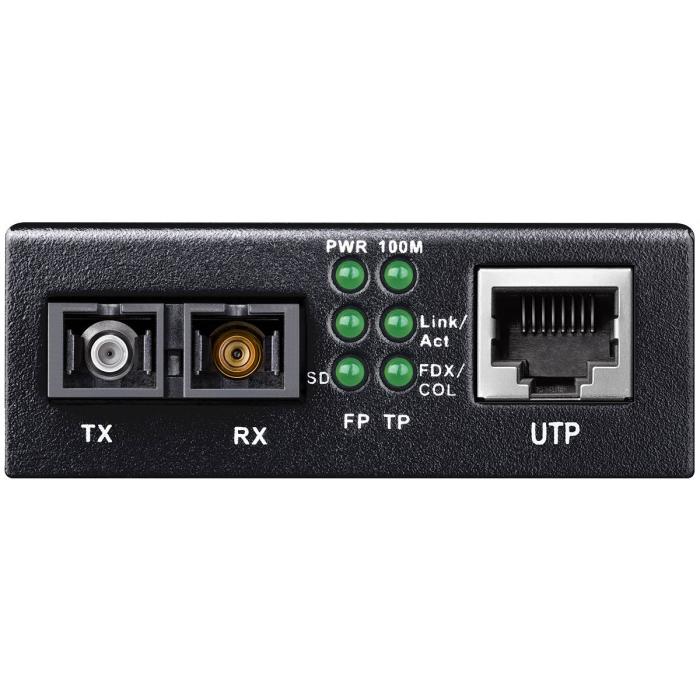

- LED indicators: Yes
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
Power

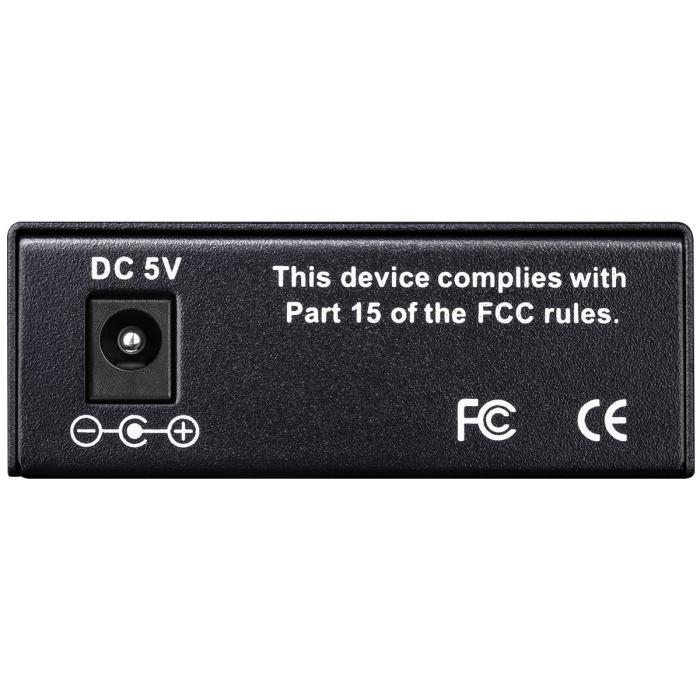

- Input voltage: 100 - 240 V
- Output voltage: 5 V
- Power consumption (typical): 3 W
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -45 - 80 °C
