Description

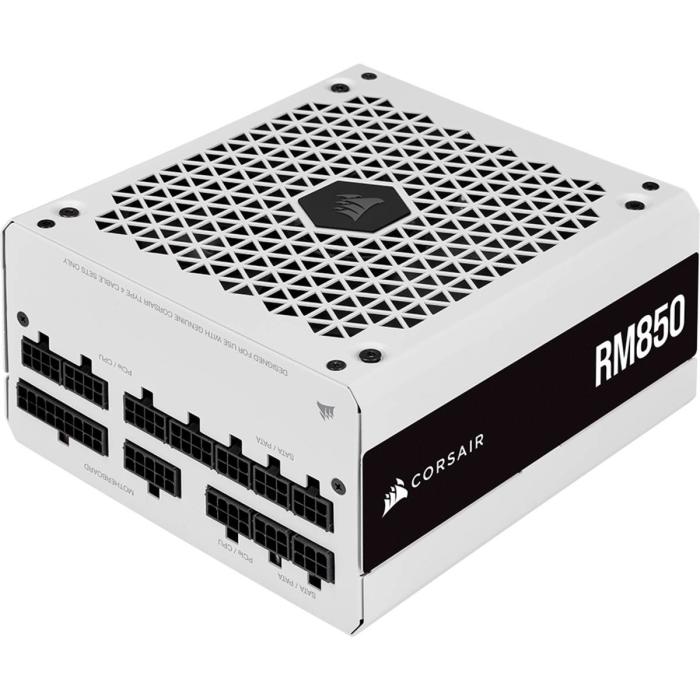

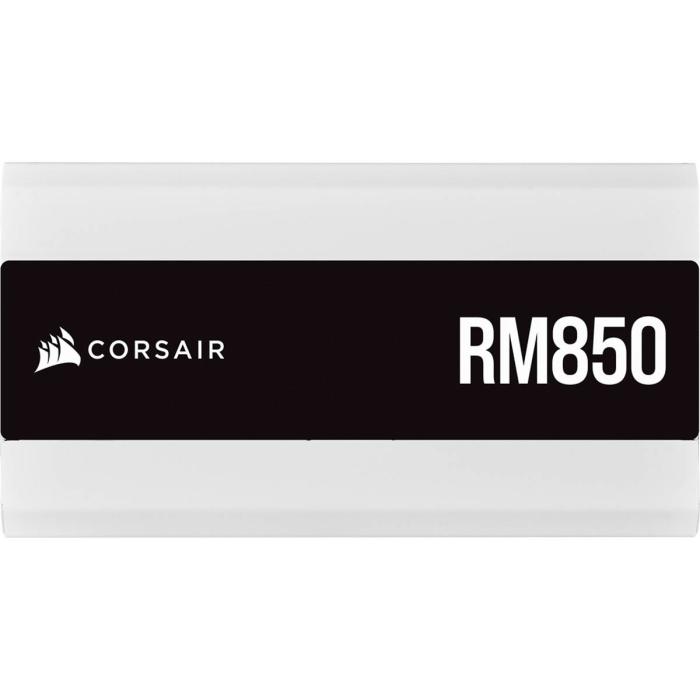

Corsair RM Series RPS0120 power supply unit in white, with 850 W total power and a 24-pin ATX main connector, designed for systems requiring stable and tidy power delivery. It offers an input voltage of 100-240 V with a current of 10-5 A, a frequency of 47-63 Hz, and a maximum output of 70.8 A on the +12 V line, ensuring performance for demanding components. It includes a 61 cm motherboard power cable, a 4+4-pin EPS connector, five 4-pin Molex connectors, and a 75 cm PCI Express cable for graphics cards. Its white design provides a clean finish that matches light-themed builds, maintaining the characteristic reliability of Corsair's RM series.
Specifications
Power
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 10 - 5 A
- Combined power (+3.3V): 150 W
- Combined power (+12V): 850 W
- Combined power (+5V): 150 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 70.8 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
Ports & interfaces

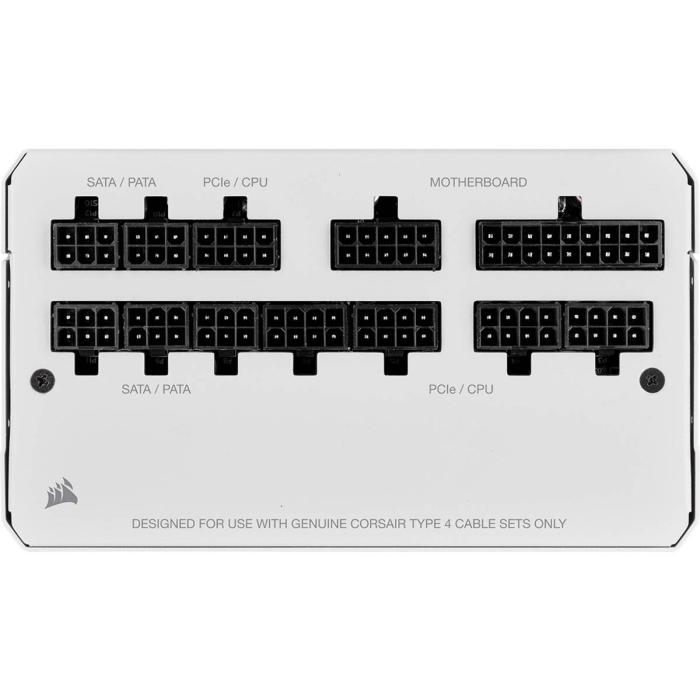

- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 61 cm
- SATA power cable length: 750, 850 mm
- Peripheral (Molex) power connectors (4-pin): 5
- Peripheral (Molex) power cable length: 750 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 75 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 65 cm

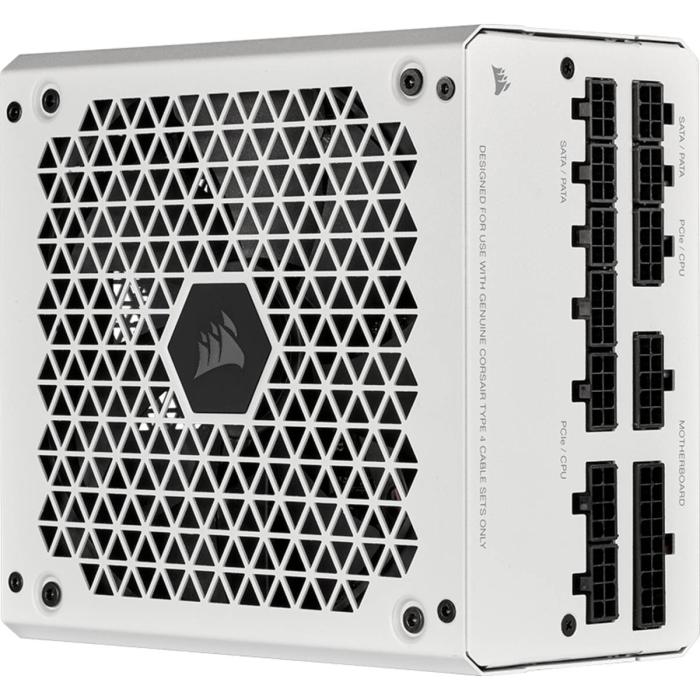

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.4
- Bearing technology: Rifle
- Mean time between failures (MTBF): 100000 h
Design

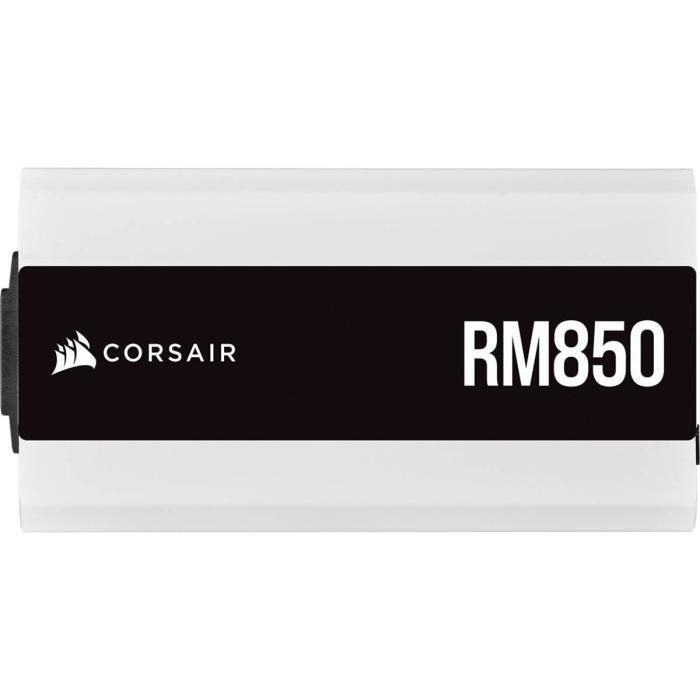

- Product colour: White
- Cooling type: Active

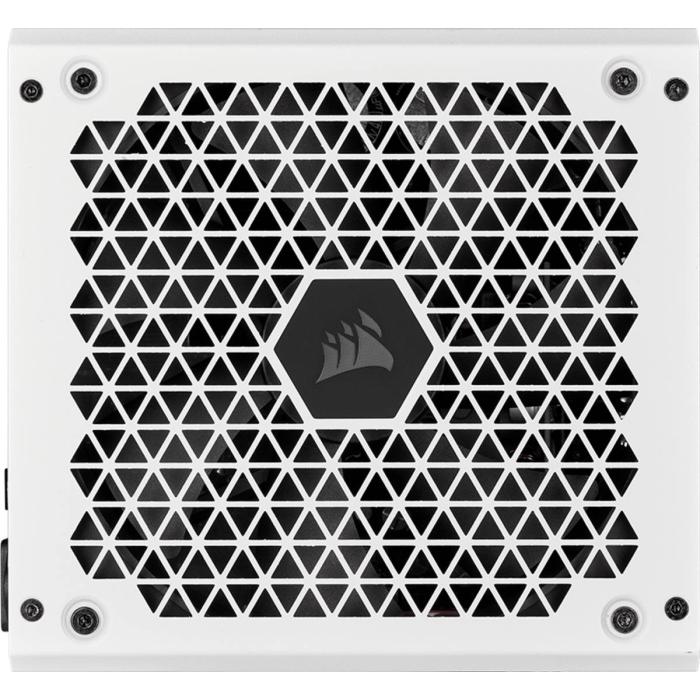

- Fan diameter: 14 cm
- Number of fans: 1 fan(s)

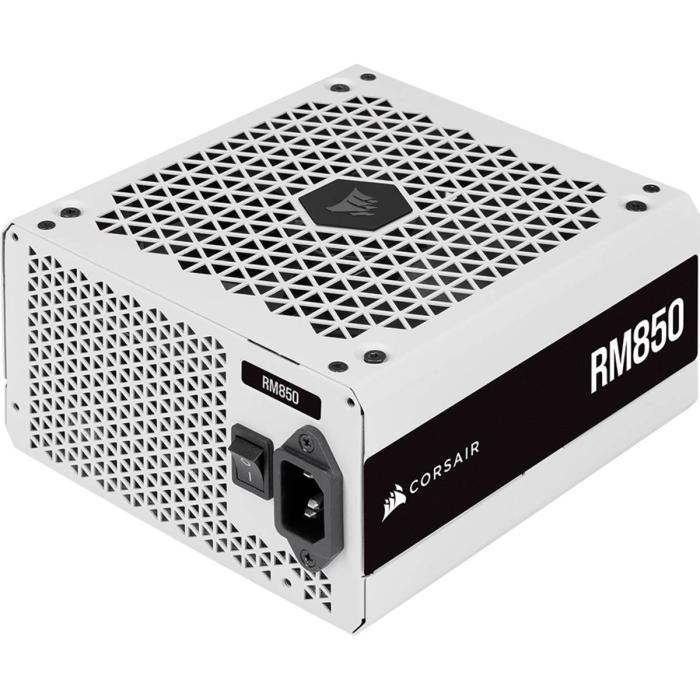

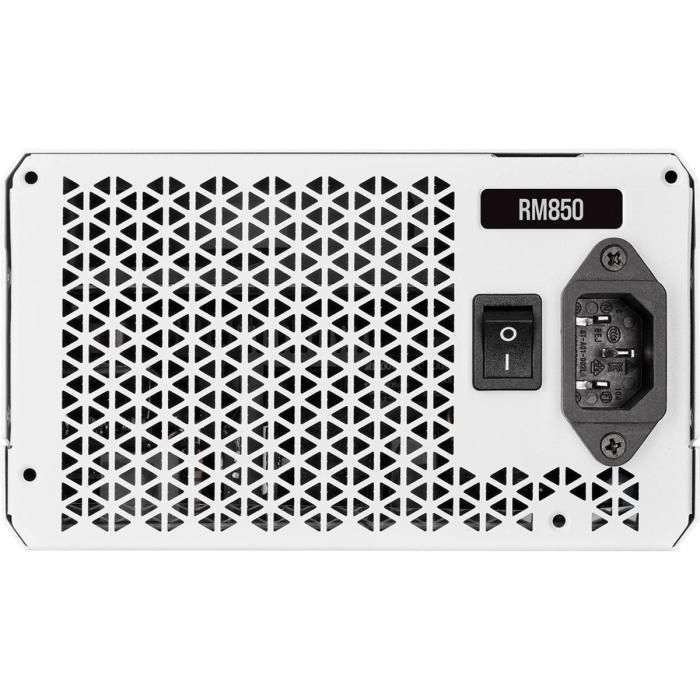

- On/off switch: Yes
Packaging content

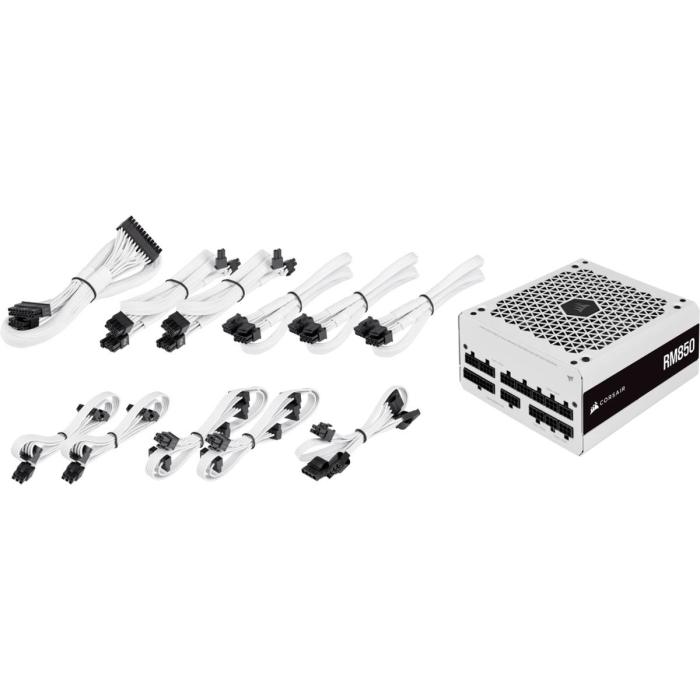

- Cables included: CPU, PATA, PCIe, SATA
Weight & dimensions
- Weight: 1.65 kg
Logistics data
- Harmonized System (HS) code: 84733020
