Description

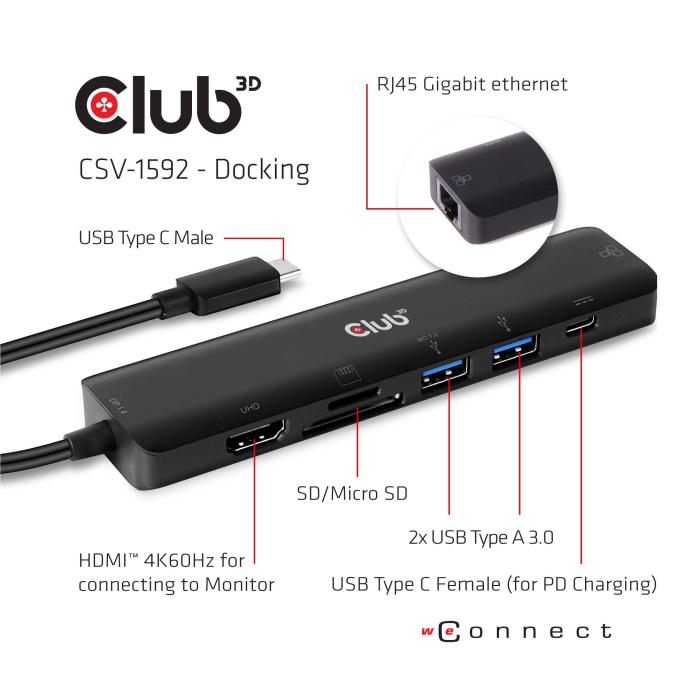

Connect the CLUB3D CSV-1592 USB Type-C port replicator, in black, to your laptop via USB 3.2 Gen 1 Type-C docking and expand your working options with two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-C port. Its HDMI 2.0 output delivers 4K Ultra HD video, and DisplayPort Alternate Mode over USB Type-C allows image and sound to be sent over the same link. It features an RJ-45 Ethernet LAN port with speeds of 10, 100 and 1000 Mbit/s for a stable network connection, and supports USB Power Delivery of up to 100 W, so you can power your laptop while using peripherals. USB power supply is supported and the device is compatible with brands such as Lenovo, Dell, Acer, Asus, MSI, Toshiba, Apple, HP and Razer. Weighing 69 g and measuring 136 x 14 x 34 mm (width x height x depth), it is easy to store and carry.
Specifications
Ports & interfaces
- Connectivity technology: Docking
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- HDMI version: 2.0
- Microphone in: No
- USB Type-C DisplayPort Alternate Mode: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Performance
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels
- Product colour: Black
- Plug and Play: Yes
- Charging function: Yes
- Country of origin: China
- Compatibility: Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer
- Certification: FCC, CE EMI
Power
- Power source type: USB
- Power connector: USB Type-C
Software
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes

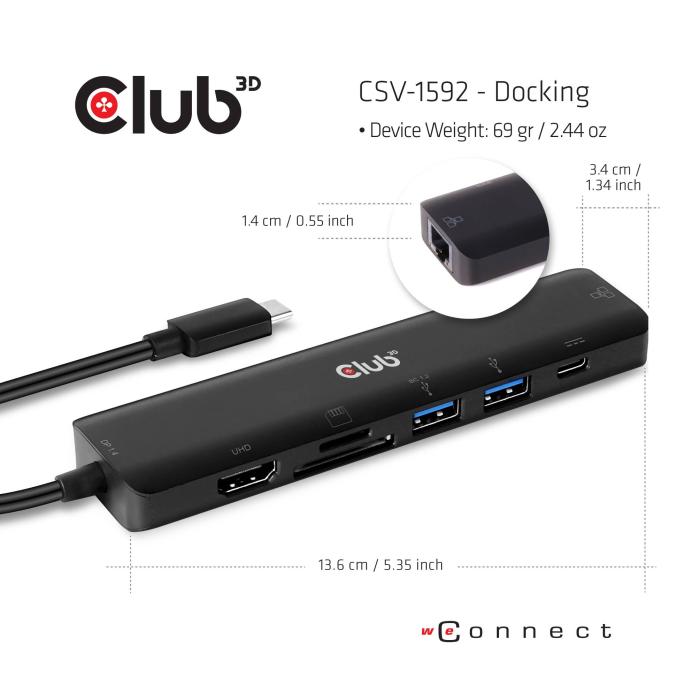

Weight & dimensions
- Width: 136 mm
- Depth: 34 mm
- Height: 14 mm
- Weight: 69 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 320 mm
- Package depth: 60 mm
- Package height: 30 mm
- Package weight: 110 g
Packaging content
- Manual: Yes
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84733020
