Description

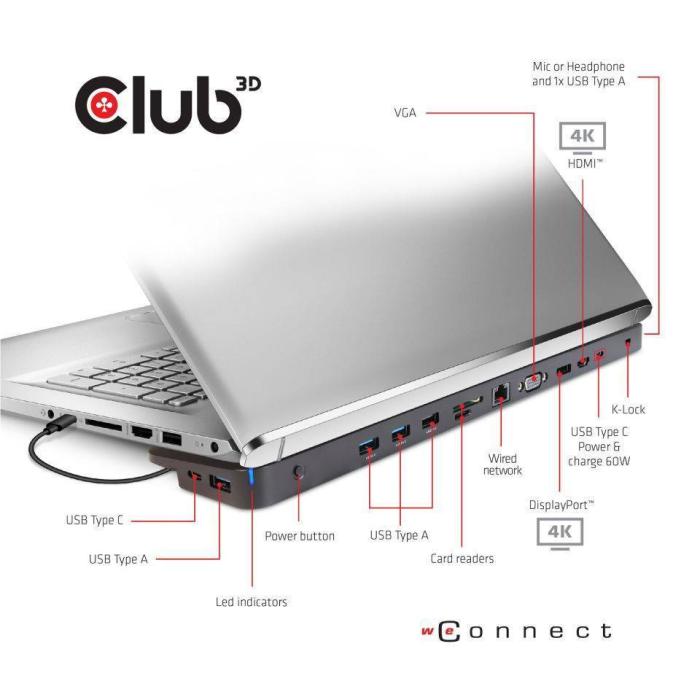

The CLUB3D CSV-1564W65 port replicator and stand, in black, connects to the laptop via a USB 3.2 Gen 1 Type-C host interface. With dimensions of 350 x 20 x 75 mm and a weight of 616 g, it includes two USB Type-A USB 3.2 Gen 1 ports, two USB 2.0 ports and two USB 3.2 Gen 1 Type-C ports. For video output it offers a DisplayPort port, an HDMI port and a VGA port. It features Ethernet and an RJ-45 port with 1000BASE-TX wiring technology that reaches a transfer speed of 1000 Mbit/s under the IEEE 802.3 standard. It has a 3.5 mm headphone connector and a combined headphone and microphone output. It supports USB power delivery and USB PowerShare, so you can charge devices through its ports.
Specifications
Ports & interfaces
- Connectivity technology: Docking
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
- PowerShare: Yes
- USB Power Delivery (USB PD): Yes
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: No
- Combo headphone/mic port: Yes
- Headphone connectivity: 3.5 mm
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 1000 Mbit/s
- Copper ethernet cabling technology: 1000BASE-TX
- Networking standards: IEEE 802.3
Performance
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
- HD type: 4K Ultra HD

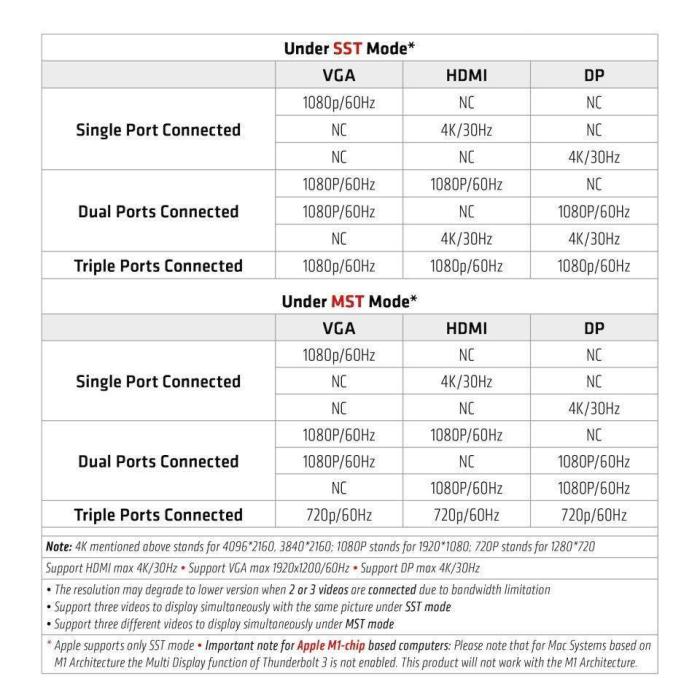

- Maximum digital resolution: 4096 x 2160 pixels
- Maximum refresh rate: 60 Hz
- Product colour: Black
Power
- Power source type: AC
- Power connector: USB Type-C

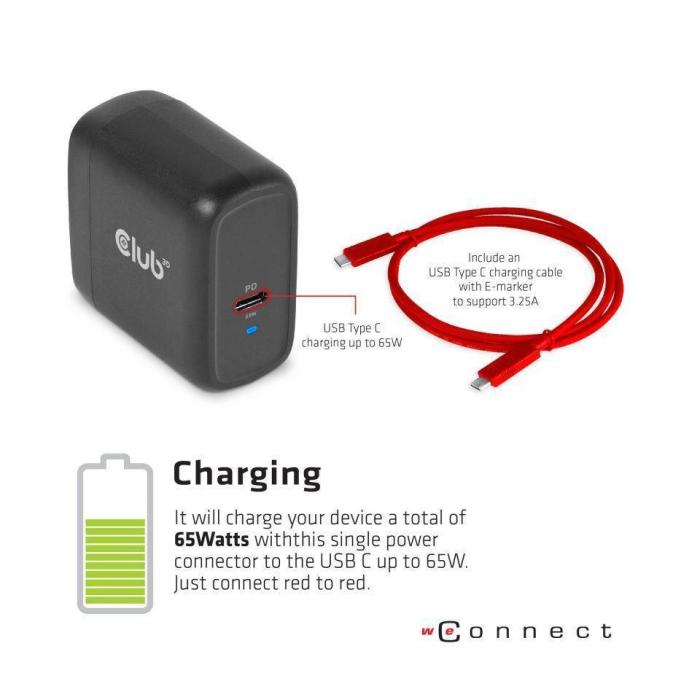

- Power supply: 100 W
Software
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes

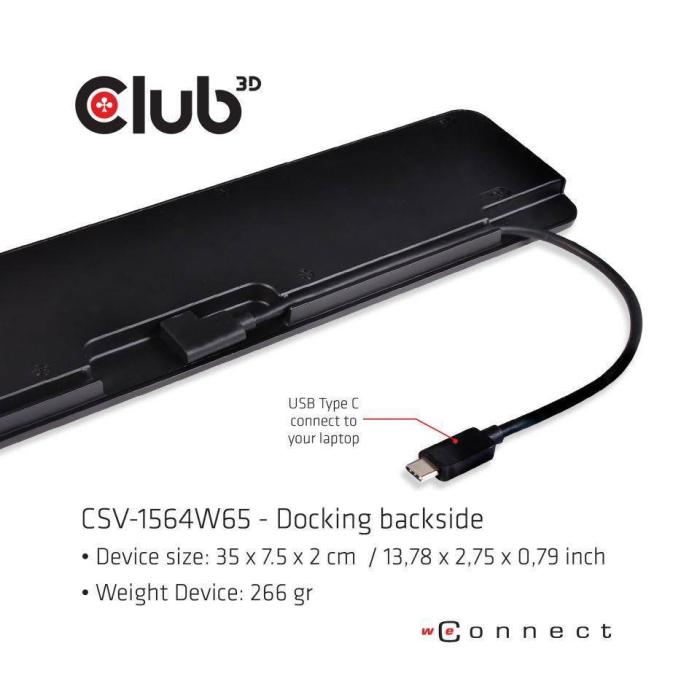

Weight & dimensions
- Width: 350 mm
- Depth: 75 mm
- Height: 20 mm
- Weight: 616 g
Packaging data
- Quantity per pack: 1 pc(s)
Packaging content
- Cables included: USB Type-C
- AC adapter included: Yes
