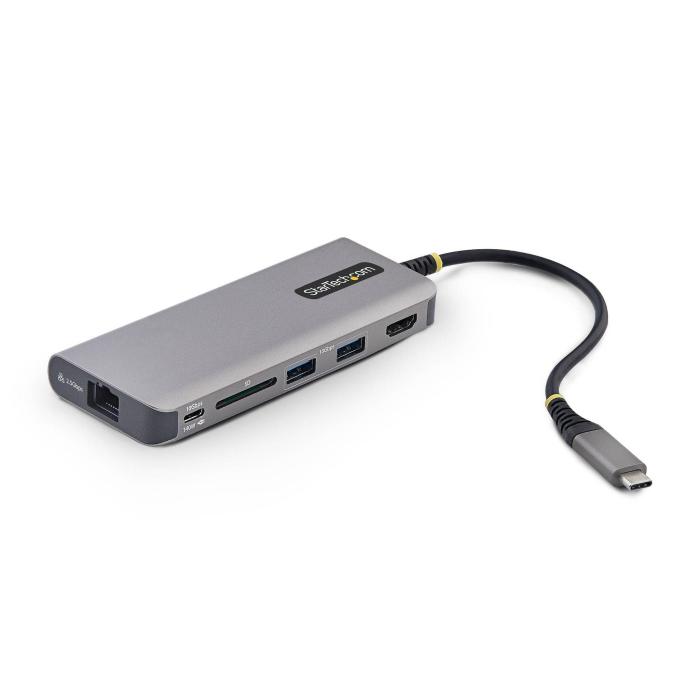

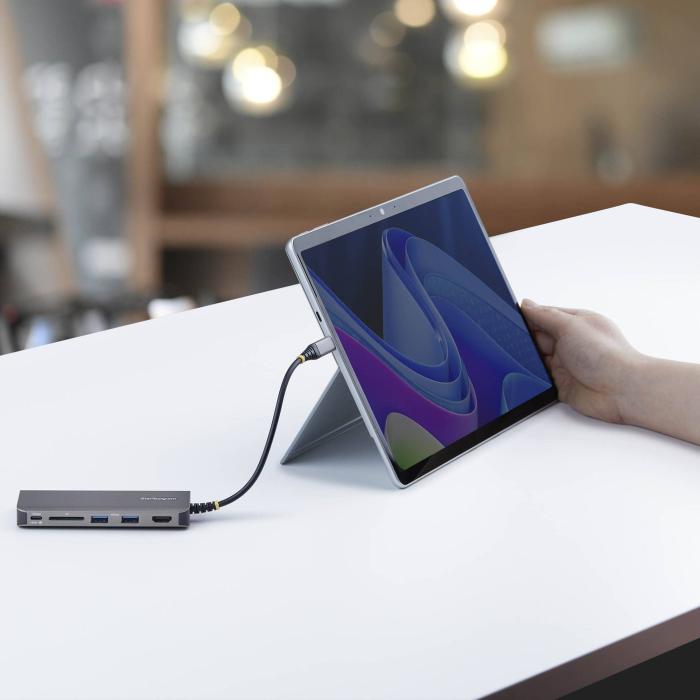

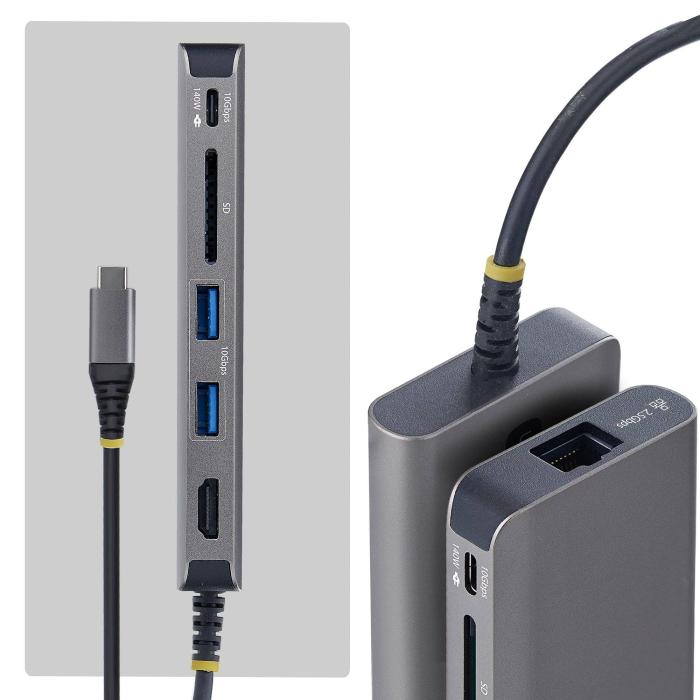

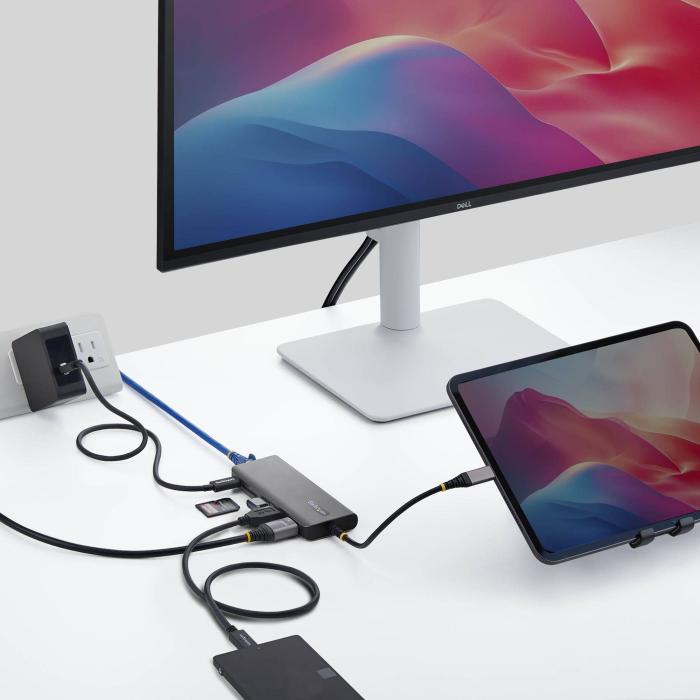

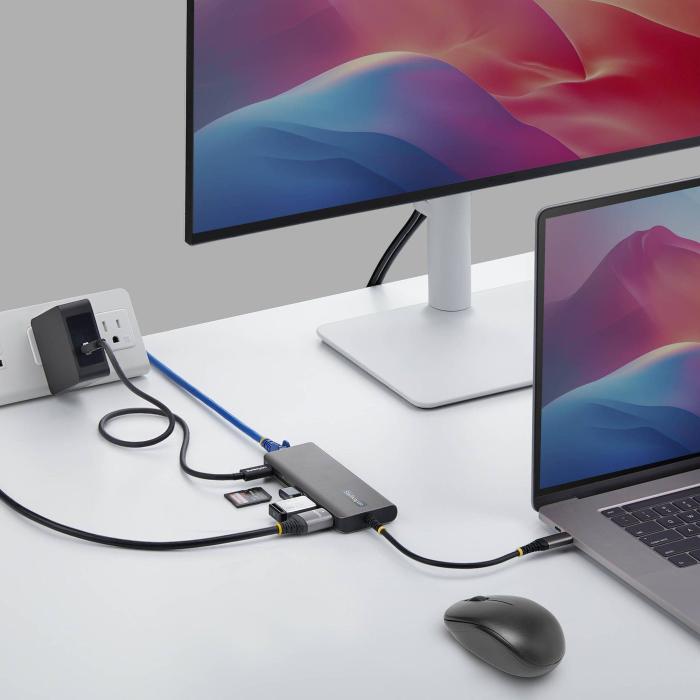

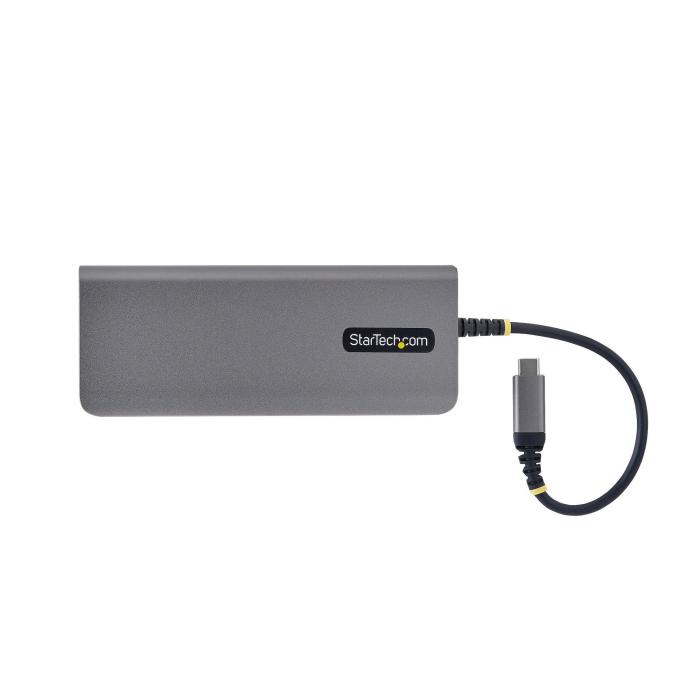

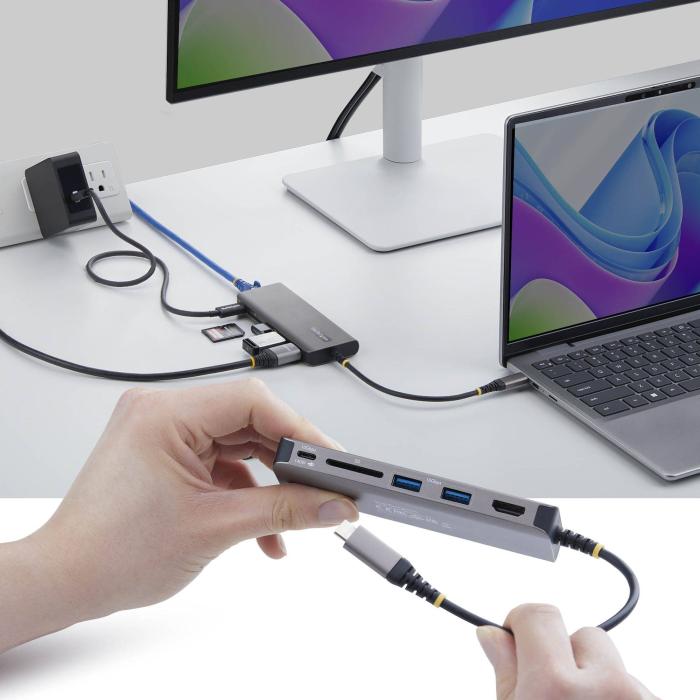

StarTech.com USB-C to HDMI Multiport Adapter, 140W PD Charging, 4K 60Hz, 3-Port USB 10Gbps Hub, SD Card Slot, 2.5GbE, Mini Dock for MacBook / Dell / Thinkpad / HP
More info
Brand: STARTECH.COM
55.86 €
46.17 €
without VAT
Stock available: 28 units.
Get it
on the
September 16
/
September 17
SKU:
131310
PRC:
650632
EAN:
65030904162
PN:
177B-USBC-MULTIPORT
Description
The StarTech.com 177B-USBC-MULTIPORT port replicator, in grey, adds versatility to your laptop by connecting via USB 3.2 Gen 2 Type-C. It includes two USB Type-A ports and one Type-C port of the same generation, plus an HDMI 2.0 output with support for DisplayPort Alternate Mode. Its Ethernet port supports speeds of up to 2500 Mbit/s, and the built-in SD card reader facilitates file transfer. With USB Power Delivery 3.2 power delivery of up to 140 W and an aluminium and plastic housing, it offers a practical solution to expand your device's connectivity.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.2
- USB Power Delivery up to: 140 W
- HDMI ports quantity: 1
- HDMI version: 2.0
- Microphone in: No
- USB Type-C DisplayPort Alternate Mode: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Full duplex: Yes
Performance
- Card reader integrated: Yes
- Compatible memory cards: SD
- Data transfer rate: 10 Gbit/s
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels
- Number of displays supported: 1
- Product colour: Grey
- UASP support: Yes
- Housing material: Aluminium, Plastic
- Mean time between failures (MTBF): 28434 h
Power
- Power source type: USB
- Power consumption (max): 20 W
- USB cable length: 0.12 m
Software
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe
- Linux operating systems supported: Yes
- Mobile operating systems supported: iPadOS, iOS
Operational conditions
- Operating temperature (T-T): -10 - 45 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 50 mm
- Depth: 125 mm
- Height: 15 mm
- Weight: 100 g
Packaging data
- Package width: 190 mm
- Package depth: 57 mm
- Package height: 19 mm
- Package weight: 141 g
Packaging content
- User guide: Yes
Technical details
- Compliance certificates: RoHS, CE
Logistics data
- Products per master (outer) case: 80 pc(s)
- Master (outer) case width: 425 mm
- Master (outer) case length: 205 mm
- Master (outer) case height: 260 mm
Other features
- Chipset: VIA - VL600, VIA - VL109, VIA - VL822, Realtek - RTL8156BG, Genesys Logic - GL3224
