Description

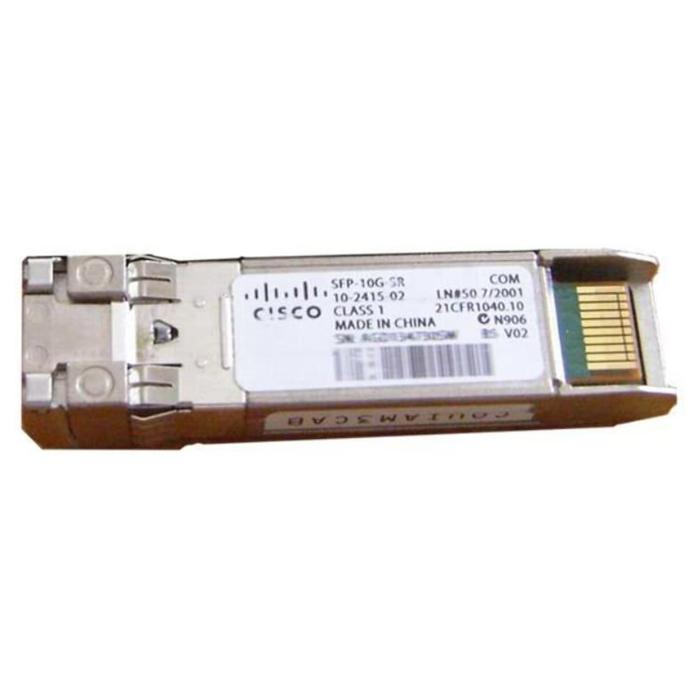

Cisco SFP+ transceiver module, reference SFP-10G-SR-S=, designed for multimode fibre optic networks with a maximum transfer speed of 10000 Mbit/s and a wavelength of 850 nm. This component, employing 10GBASE-SR technology, offers a full-duplex system and an LC connector with PC polish, compatible with IEEE 802.3, 802.3ab, 802.3ae and 802.3u standards. It includes support for Auto MDI/MDI-X and supports hot-plug connection, with MSA certification. Its compact dimensions of 8.5 mm in height and 13.4 mm in width make it suitable for space-constrained environments, operating over a wide temperature range from -40 to 85 °C and relative humidity from 0 to 95%.
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC, PC
- SFP transceiver standard: SR
- Wavelength: 850 nm
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
- Cabling technology: 10GBASE-SR
- Duplex system: Full
- Auto MDI/MDI-X: Yes
Features
- Hot-Plug support: Yes
Certificates
- Certification: MSA
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 13.4 mm
- Depth: 56.5 mm
- Height: 8.5 mm
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 143 mm
- Package depth: 158.8 mm
- Package height: 44.5 mm
- Package weight: 90.7 g
Logistics data
- Harmonized System (HS) code: 85369010
- Country of origin: China
