Description

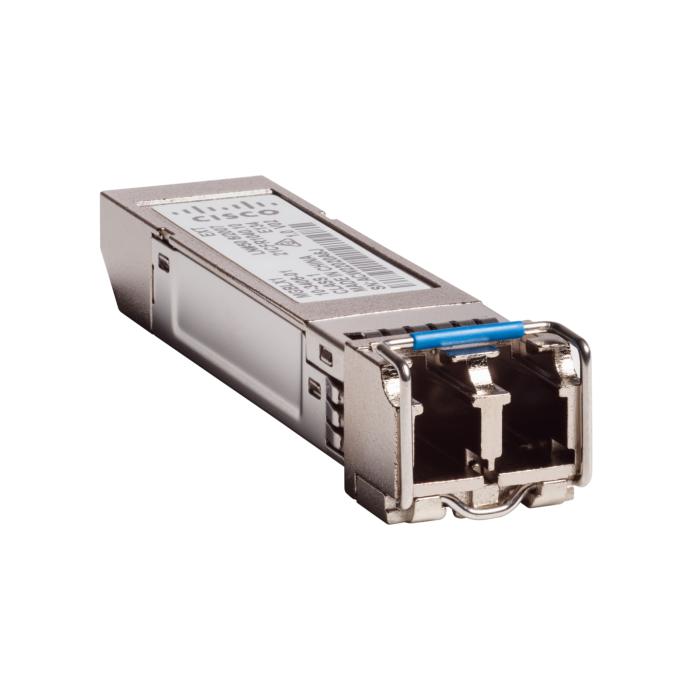

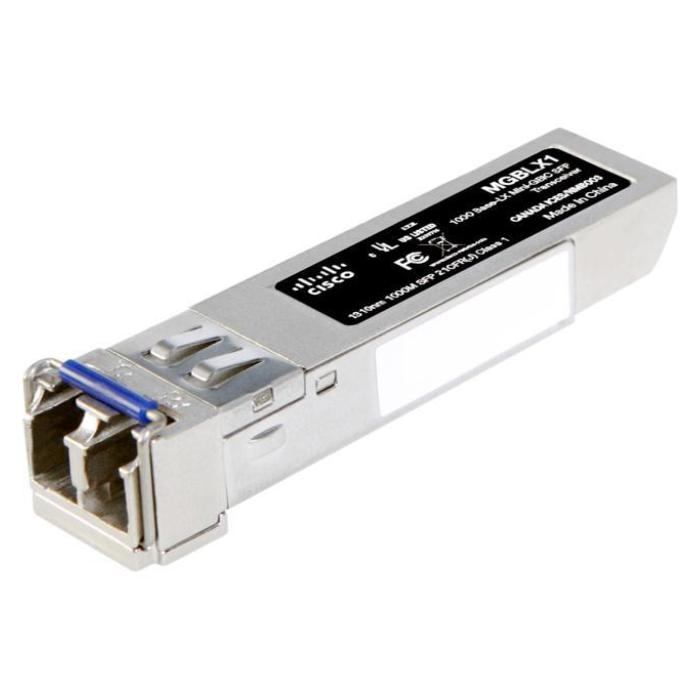

The Cisco MGBLX1 SFP Transceiver turns this 1000BASE-LX SFP module into a wired 1000 Mbit/s optical module using 1000Base-LX technology with a 1310 nm wavelength, designed to achieve a maximum transfer distance of 10,000 metres over fibre. It is compatible with the Plug and Play standard and supports hot-swap, making installation and replacement easy without interrupting service, with an energy consumption of only 1 W. Its compact dimensions, with a height of 8.5 mm, a width of 55.7 mm and a depth of 13.4 mm, and a weight of 20 g, make it suitable for compact equipment. It operates over a temperature range of 0 to 70 °C and supports a relative operating humidity of 10 to 85%, while in storage it tolerates from -40 to 85 °C with a humidity of 5 to 90%.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Cabling technology: 1000Base-LX
Performance
- Maximum transfer distance: 10000 m
- Wavelength: 1310 nm
Features
- Hot-swap: Yes
- Plug and Play: Yes
Ports & interfaces
- Connectivity technology: Wired
Power
- Power consumption (typical): 1 W
Weight & dimensions
- Width: 55.7 mm
- Depth: 13.4 mm
- Height: 8.5 mm
- Weight: 20 g
Operational conditions
- Storage relative humidity (H-H): 5 - 90%
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 10 - 85%
Packaging data
- Package width: 81.3 mm
- Package depth: 127 mm
- Package height: 25.4 mm
- Package weight: 50 g
Certificates
- Safety: FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2
- Certification: FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B.
Logistics data
- Country of origin: China
- Quantity per pack: 1 pc(s)
- Harmonized System (HS) code: 85176990
Other features
- Transmit power range: -9.5 - -3 dBmW
- Dimensions (WxDxH): 13.4 x 55.7 x 8.5 mm
- Interface: SFP
- Connector(s): LC-LC
- Full duplex: Yes
- Fiber type: SMF
