Description

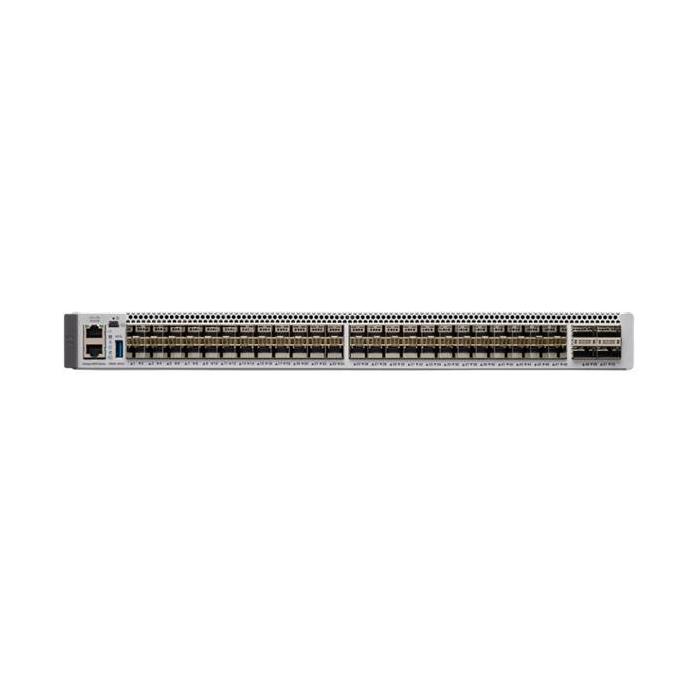

Cisco Catalyst 9500 - Network Advantage - Managed L3 switch - Switch - 48-port managed L2/L3 grey. Managed L2/L3 switch from the Catalyst 9500 series, with Network Advantage license and 48 SFP28 ports plus 4 QSFP28 ports totalling 52 fibre optic channels, offering a switching capacity of 3200 Gbit/s and a MAC address table of 82,000 entries. This Cisco equipment supports up to 4094 VLANs, policy-based routing, QoS, multicast with Multicast FIB and full duplex, as well as data encryption with 256-bit AES to protect the network. With its 10G functionality and comprehensive management, it is designed for enterprise environments requiring advanced traffic control and high optical port density. Its grey colour and L3 layer position it as a robust solution for network cores or aggregation in demanding infrastructures.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports type: No
- Fiber ports quantity: 52
- QSFP28 ports quantity: 4
- SFP28 ports quantity: 48
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3
- 10G support: Yes
- Full duplex: Yes
- Policy-based routing: Yes
- VLAN support: Yes
- Number of VLANs: 4094
Data transmission
- Switching capacity: 3200 Gbit/s
- MAC address table: 82000 entries
Security
- Security algorithms: 256-bit AES
Multicast features
- Multicast support: Yes
- Multicast features: Multicast FIB
Protocols
- Management protocols: SNMPv1, SNMPv2c, SNMPv3
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Grey
Performance
- Built-in processor: Yes
- Processor frequency: 2400 MHz
- Memory type: DRAM
- Internal memory: 16000 MB
- Flash memory: 16000 MB
Power
- Redundant power supply (RPS) support: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 65 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
Logistics data
- Harmonized System (HS) code: 85176990
