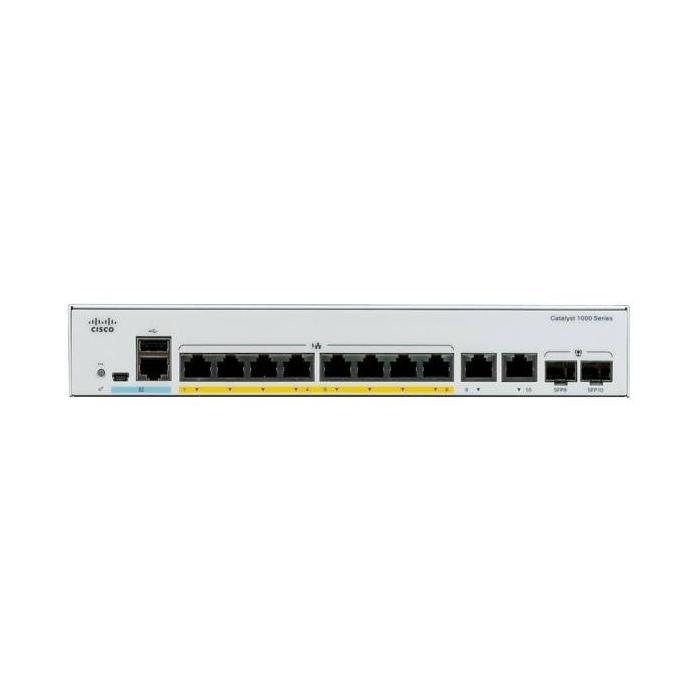

Cisco Catalyst 1000-8P-2G-L Network Switch, 8 Gigabit Ethernet (GbE) PoE+ Ports, 670W PoE Budget, two 1 G SFP/RJ-45 Combo Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-8P-2G-L)
More info
Brand: CISCO
573.00 €Stock available: 0 units.
Unavailable
SKU:
101509
PRC:
338819
EAN:
889728248792
PN:
c1000-8p-2g-l
Description
The Cisco Catalyst C1000-8P-2G-L managed switch, in grey, offers 8 RJ-45 Gigabit Ethernet (10/100/1000) ports with Power over Ethernet (PoE) support and 2 combo SFP ports for expanded connectivity. Its Layer 2 features include web-based management, command-line interface (CLI), traffic classification, ARP inspection and storm control, as well as support for MIB and QoS. It manages up to 256 VLANs and supports features such as link aggregation and spanning tree protocol, with an RJ-45/Mini-USB console port and a USB 2.0 port for local configuration.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Traffic classification: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
- Console port: RJ-45/Mini-USB
- USB 2.0 ports quantity: 1
Network
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3
- 10G support: No
- Full duplex: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-negotiation: Yes
- VLAN support: Yes
- Number of VLANs: 256
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 16000 entries
- Static route: Yes
- Number of static routes: 16
- Jumbo frames support: Yes
- Jumbo frames: 10240
Security
- DHCP features: DHCP snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- IGMP entries: 1024
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- Authentication: Web-based authentication
- Authentication type: RADIUS
Multicast features
- Multicast support: Yes
- IPv4 multicast entries: 1024
- IPv6 multicast entries: 1024
Protocols
- Management protocols: SNMP
Design
- Product colour: Grey
- LED indicators: Yes
- Market segment: Business
Performance
- Built-in processor: Yes
- Processor model: ARM7
- Processor frequency: 800 MHz
- Memory type: DRAM
- Internal memory: 512 MB
- Flash memory: 256 MB
- Mean time between failures (MTBF): 1786412 h
Power
- AC input voltage: 110 - 220 V
- AC input frequency: 50 - 60 Hz
- Input current: 0.22 - 0.27 A
- Power consumption (typical): 21.3 W
- Power consumption (max): 22 W
- Power plug type: Type C
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+
- Power over Ethernet (PoE) power per port: 15 W
- Total Power over Ethernet (PoE) budget: 67 W
Other features
- Packaging content: C1000-8P-2G-L Switch, Accessory Kit, 1 printed document
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 4500 m
Weight & dimensions
- Width: 268.2 mm
- Depth: 184.9 mm
- Height: 43.9 mm
- Weight: 1.55 kg
Packaging data
- Package width: 349.2 mm
- Package depth: 387.4 mm
- Package height: 160.3 mm
- Package weight: 3.83 kg
Technical details
- Products per shipping (inner) case: 1 pc(s)
Certificates
- Certification: UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/N
Logistics data
- Quantity per pack: 1 pc(s)
- Country of origin: China
- Harmonized System (HS) code: 85176990
- Products per master (outer) case: 1 pc(s)
