Description

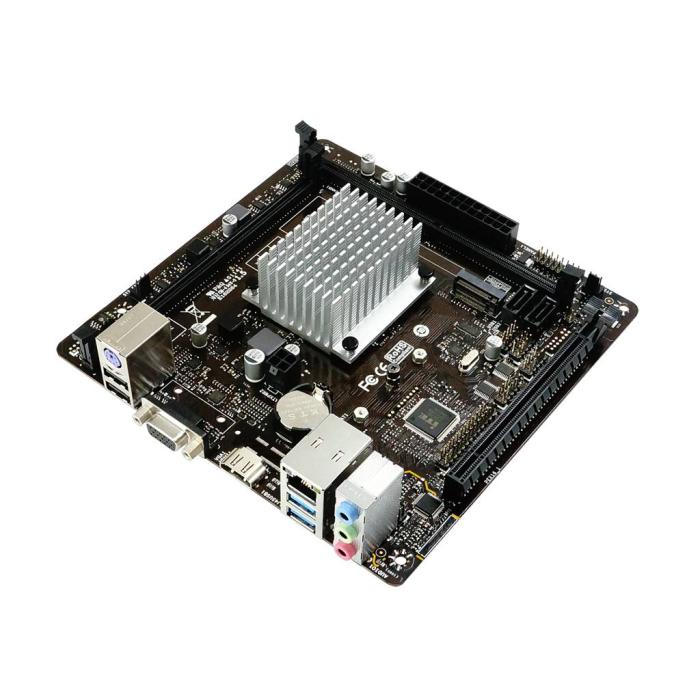

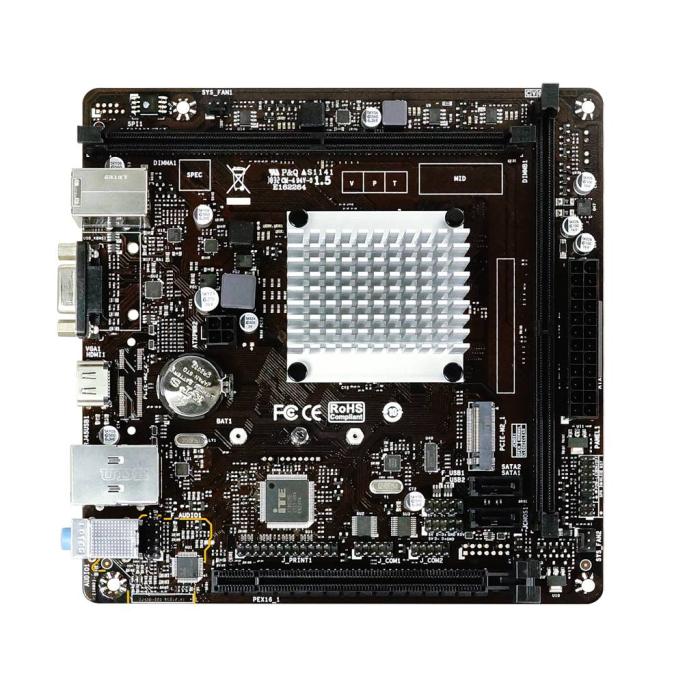

The BIOSTAR J4125NHU motherboard in mini ITX form factor is designed to integrate an Intel Celeron J4125 quad-core processor, offering efficient performance for everyday tasks and compact systems. It supports up to 8 GB of DDR4-SDRAM memory across two DIMM slots, with support for speeds of 1866, 2133 and 2400 MHz and dual-channel configuration, as well as non-ECC modules. For storage, it features two SATA III connectors and one M.2 slot with a PCI Express 2.0 interface, compatible with hard drives and SSDs, managing up to two drives. On the graphics side, it integrates support for DirectX 12.0 and OpenGL 4.4, enabling adequate video output for basic and multimedia use. This mini ITX motherboard is a practical option for building low-power systems or HTPCs.
Specifications
Processor
- Processor manufacturer: Intel
- Compatible processor series: Intel® Celeron®
- Maximum number of SMP processors: 1
- Processor model: J4125
- Processor cores: 4
- Maximum internal memory supported by processor: 8 GB
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 1866, 2133, 2400 MHz
- Maximum internal memory: 8 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 2.0, SATA III
- Number of HDDs supported: 2
Graphics
- Graphics card family: Intel
- Graphics card: Intel® UHD Graphics 600
- OpenGL version: 4.4
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 2
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- Peripheral (Molex) power connectors (4-pin): 1
- Number of COM connectors: 1

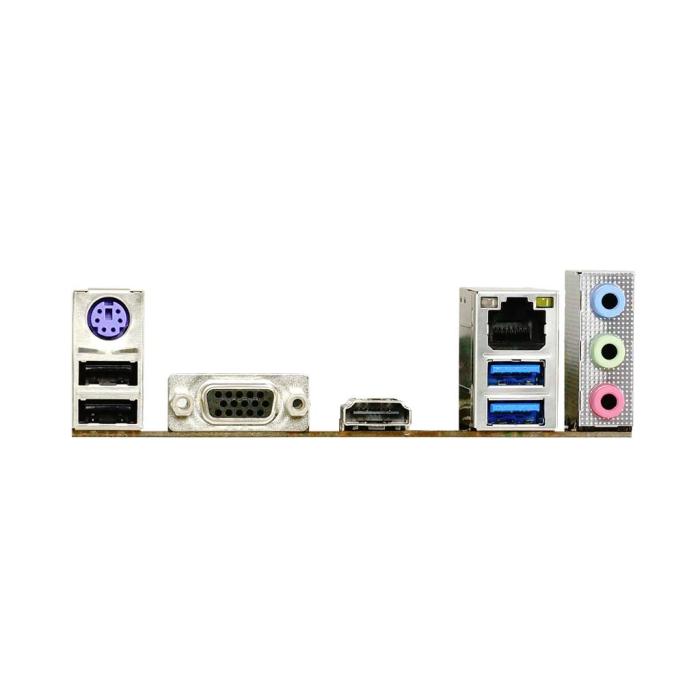

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
Network
- Ethernet LAN: Yes
- LAN controller: Realtek RTL8111H
Features
- Audio chip: Realtek ALC887
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: mini ITX
- Motherboard chipset family: Intel
- Windows operating systems supported: Yes
Expansion slots
- PCI Express x16 (Gen 2.x) slots: 2
BIOS
- BIOS type: UEFI
Weight & dimensions
- Width: 170 mm
- Depth: 170 mm
