Description

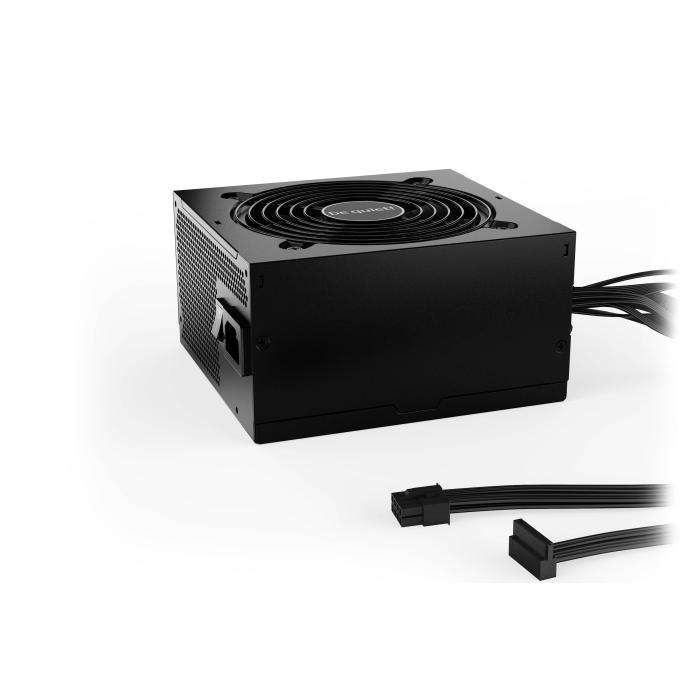

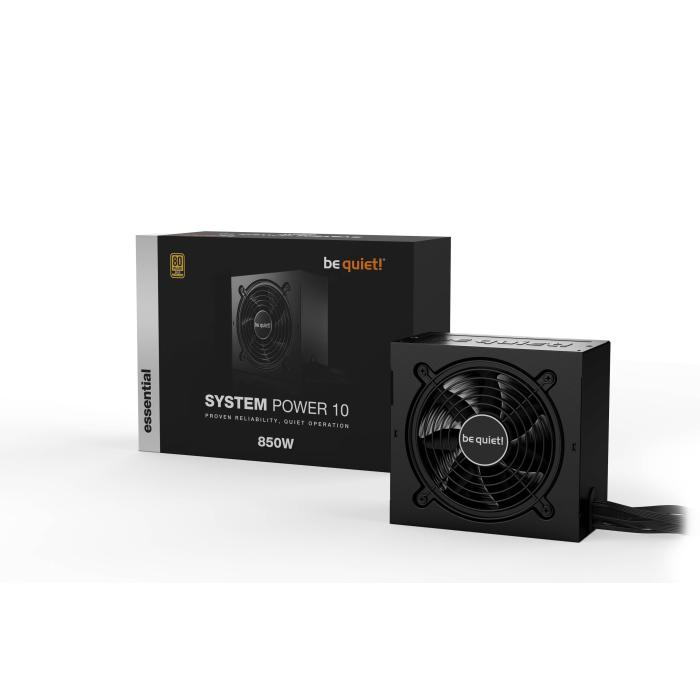

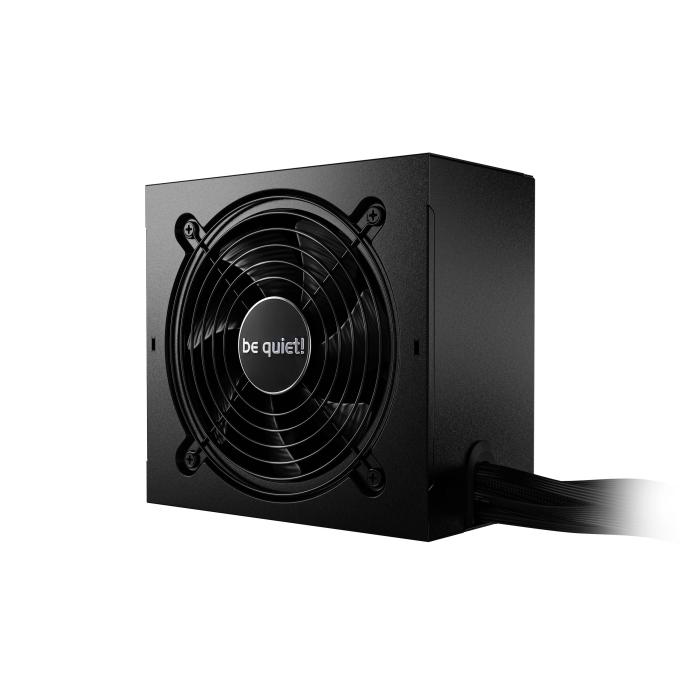

The be quiet! System Power 10 is an 850 W ATX power supply unit with 93.4% efficiency certification and active power factor correction. Its black design comes in dimensions of 160 x 150 x 86 mm (width x height x depth) and a weight of 2.14 kg, making it easy to integrate into most cases. It supports an AC input voltage of 200 to 240 V and an input current of 5 A, and its hold-up time is 17 ms. It distributes the load across its rails: it offers 40 A on +12 V1 and 36 A on +12 V2, with a combined power of 849.6 W on +12 V. It completes the distribution with 22 A on both +3.3V and +5V, 3 A on +5Vsb and 0.3 A on -12V. The combined powers are distributed as 120 W for +5 V, 15 W for +5 VSB and 3.6 W for -12V, all with a Power Good signal delay margin of 100 to 150 ms.
Specifications
Power
- Total power: 850 W
- AC input voltage: 200 - 240 V
- AC input frequency: 50 Hz
- Input current: 5 A
- Power factor: 0.97
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 849.6 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 22 A
- Max output current (+12V1): 40 A
- Max output current (+12V2): 36 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 17 ms
- Efficiency: 93.4%
- Power Good signal delay range: 100 - 150 ms
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

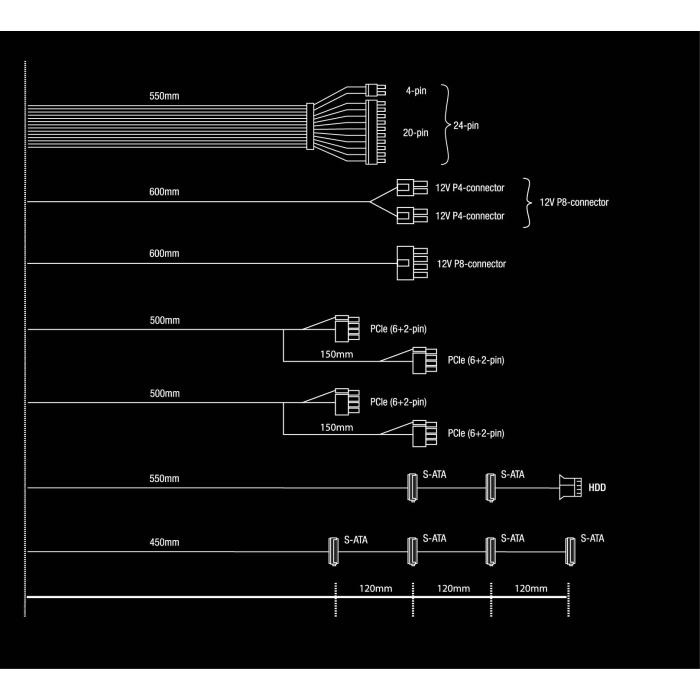

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 6
- Number of PATA power connectors: 1
- SATA power cable length: 450,550,570,670,690,790 mm
- Peripheral (Molex) power connectors (4-pin): 1
- Peripheral (Molex) power cable length: 790 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 65 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 60 cm
- ATX power connector (20+4 pin): Yes
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.52
- EPS version: 2.92
- Noise level: 30.7 dB
- Bearing technology: Rifle
- Mean time between failures (MTBF): 100000 h
- Certification: CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia)
- Country of origin: Germany
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 2000 RPM
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 160 mm
- Depth: 86 mm
- Height: 150 mm
- Weight: 2.14 kg
Packaging data
- Manual: Yes
- Manual languages: German, English, Spanish, French, Polish, Russian
- Package width: 220 mm
- Package depth: 300 mm
- Package height: 100 mm
- Package weight: 2.6 kg
Technical details
- Sustainability certificates: CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE
- Warranty period: 5 year(s)
Other features
- Screws included: Yes

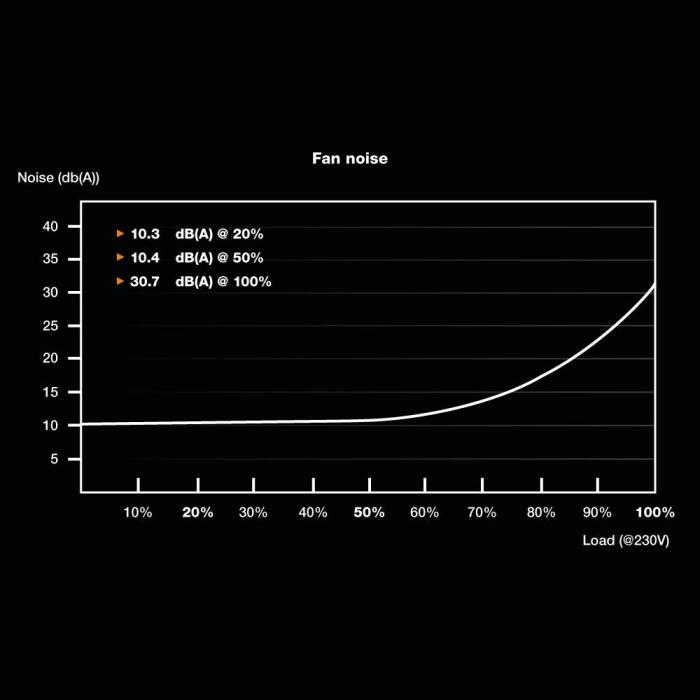

- Noise level (silent mode, <30%): 10.3 dB
- Noise level (quiet mode, 50%): 10.4 dB
- Noise level (full-load mode, 100%): 30.7 dB
