Description

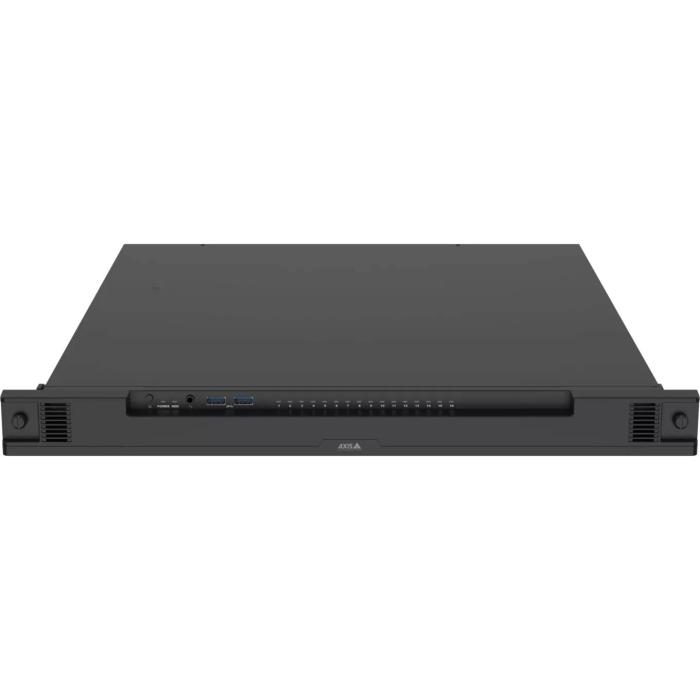

The S2216 Mk II in 1U format with a black finish is a network video recorder with 16 input channels and a maximum resolution of 7680 x 4320 pixels, designed for integration into professional video surveillance deployments. It features 16 GB of DDR5 memory, a 256 GB SSD, and two 4 TB HDDs installed, expandable to four drives and a total capacity of 16 TB, with support for RAID levels 0, 1, and 10. This AXIS unit handles a data transfer rate of 256 Mbit/s, recording in 1080p at 30 fps, and offers connectivity via two USB 3.2 Gen 1 ports, two USB 2.0 ports, and two HDMI outputs for managing and viewing connected cameras.
Specifications
Performance
- Video input channels: 16 channels
- Video recording modes: 1080p
- Maximum resolution: 7680 x 4320 pixels
- Internal memory: 16000 MB
- Internal memory type: DDR5
- Throughput data rate: 256 Mbit/s
- Maximum frame rate: 30 fps
Hard drive
- Number of HDDs installed: 2
- HDD capacity: 4 TB
- Number of HDDs supported: 4
- Maximum storage capacity: 16 TB
- RAID support: Yes
- RAID levels: 0, 1, 10
Solid state drive
- Number of SSDs installed: 1
- SSD capacity: 256 GB

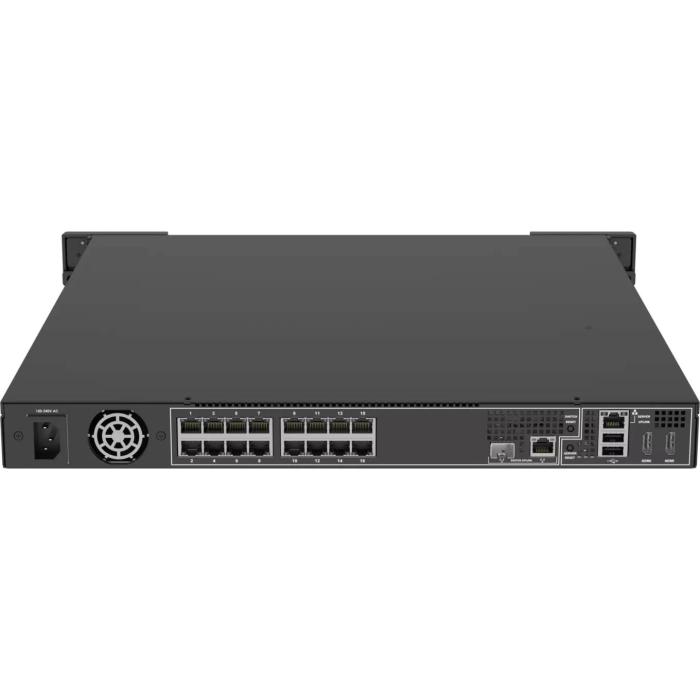

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 16
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 16
- HDMI ports quantity: 2
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Fiber ports quantity: 1
Features
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Certification: FIPS 140–2 Level 2, UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM
Processor
- Built-in processor: Yes
Power
- Power consumption (max): 130 W
- Power consumption (typical): 110 W
- AC input voltage: 100-240 V
- AC input frequency: 50/60 Hz
- Total Power over Ethernet (PoE) budget: 520 W
System requirements
- Windows operating systems supported: Windows 11
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): -40 - 65%
- Storage temperature (T-T): 10 - 90 °C
- Storage relative humidity (H-H): 10 - 90%
Technical details
- Compliance certificates: Trade Agreements Act (TAA)
Weight & dimensions
- Width: 483 mm
- Depth: 440 mm
- Height: 45 mm
- Weight: 11 kg
Packaging content
- Cables included: AC
