Axis 02446-002 security camera IP security camera Outdoor 3840 x 2160 pixels Wall

Axis 02446-002 security camera IP security camera Outdoor 3840 x 2160 pixels Wall

Axis 02446-002 security camera IP security camera Outdoor 3840 x 2160 pixels Wall

Name: Axis 02446-002 security camera IP security camera Outdoor 3840 x 2160 pixels Wall
Brand: AXIS
SKU: 451116
Price: 3557 EUR
Availability: OutOfStock

More info

Brand: AXIS

3,557,00 €

Stock available: 0 units.

Unavailable

SKU: 101574 PRC: 451116 EAN: 7331021077379 PN: 02446-002

Description

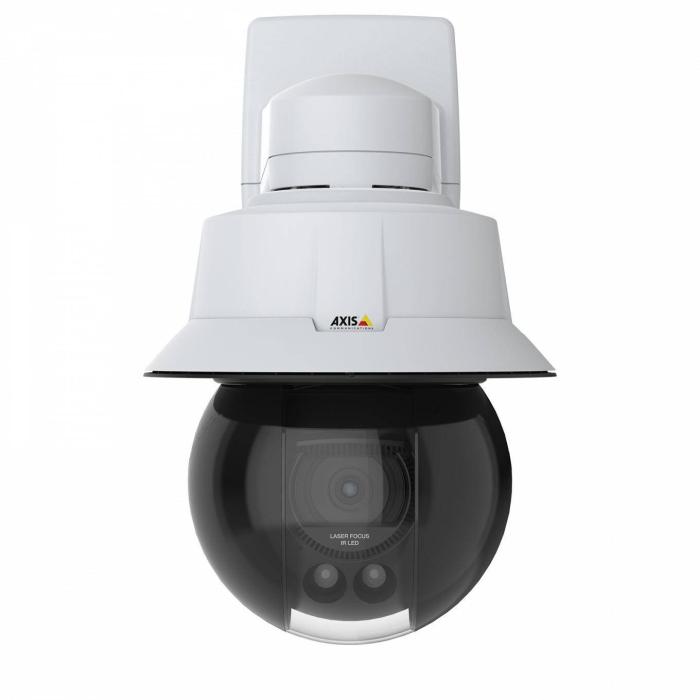

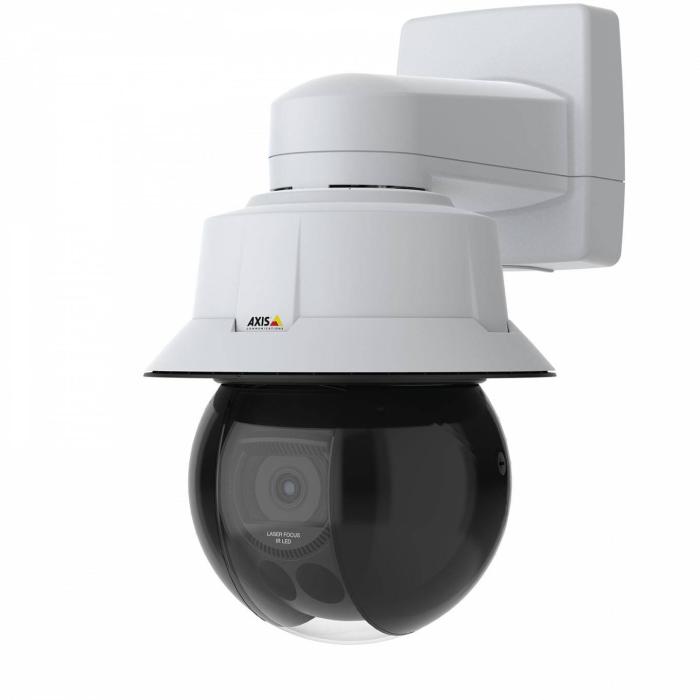

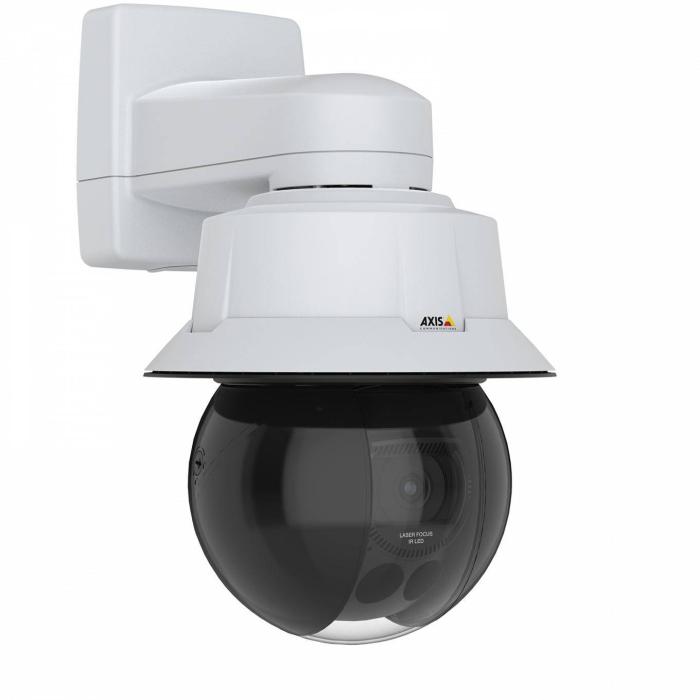

Axis 02446-002 IP security camera for outdoor use offers 3840 x 2160 pixels resolution and wall mounting with a white aluminium and polycarbonate housing. It includes day/night mode, infrared cut-off filter, wide dynamic range (WDR) and auto-tracking with PTZ control, along with an integrated ARTPEC-7 processor. Its robust design features IP66, IP67 and IK10 ratings, and supports a minimum illumination of 0.11 lx, with recording tour options and 19 languages. Connectivity is wired and placement is designed for outdoor use, providing versatile operation for fixed surveillance.

Specifications

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
Auto-tracking: Yes
Tour recording: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Processor model: ARTPEC-7
Built-in processor: Yes
Number of languages: 19
Languages support: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Pol
Certification: EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,

Design

Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10
Mounting type: Wall
Product colour: White

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.11 lx
Lens viewing angle, horizontal: 58.5°
Lens viewing angle, vertical: 34.9°
Tilt angle range: -90 - 20°
Tilt speed: 500 °/sec
Pan speed: 550 °/sec
Camera shutter speed: 1/8500 - 1/5 s

Image sensor

Optical sensor size: 25.4 / 2 mm (1 / 2")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 31x
Digital zoom: 12x
Focal length range: 6.91 - 214.64 mm
Auto focus: Yes
Maximum aperture number: 4.6
Minimum aperture number: 1.36

Night vision

Night vision: Yes
Night vision distance: 200 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Video compression formats: H.264, H.265, M-JPEG
Video recording: Yes
Frame rate: 25 fps
Video streaming: Yes
Privacy masking: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3bt
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: SD, SDHC, SDXC
Flash memory: 512 MB
Internal memory: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Digest authentication: Yes
Network access storage (NAS): Yes

Power

Power source type: PoE
AC input voltage: 100 - 240 V
Power consumption (typical): 17 W
Power consumption (max): 51 W

Operational conditions

Operating temperature (T-T): -50 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 261 mm
Diameter: 23.9 cm
Weight: 4.8 kg

Packaging content

Number of cameras: 1
Manual: Yes
Packaging content: Windows decoder 1-user license, 60 W Midspan (including power cable), IP66 rated network connector, repaint template, paint pape
