Description

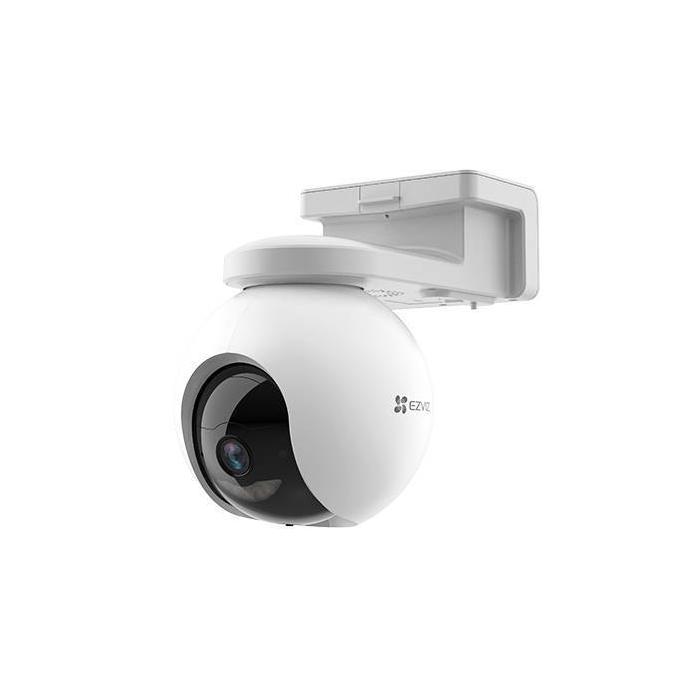

The EZVIZ HB8 is a spherical IP security camera for outdoor use with a resolution of 2560 x 1440 pixels, designed for ceiling or wall mounting. Its black and white finish combines weather resistance with a compact form factor, and it features day/night mode and an infrared cut-off filter to record even with minimal illumination of 0 lx. Thanks to its PTZ control, it offers auto-tracking and allows the tilt angle to be adjusted from 0 to 65°, with a diagonal field of view of 100°. Connectivity is both wireless and wired, with an operating frequency of 2400 to 24835 MHz, and the integrated light facilitates surveillance in complete darkness.
Specifications
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired & Wireless
- PTZ control: Yes
- Auto-tracking: Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Built-in light: Yes
- Operating frequency: 2400 - 24835 MHz
Design
- Form factor: Spherical
- Mounting type: Ceiling/wall
- Product colour: Black, White
- Weatherproof: Yes
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0 lx
- Lens viewing angle, horizontal: 83°
- Lens viewing angle, vertical: 44°
- Lens viewing angle, diagonal: 100°
- Tilt angle range: 0 - 65°
- Pan range: 0 - 340°
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 3 mm (1 / 3")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Maximum aperture number: 1.6
- Fixed focal length: 4 mm
Night vision
- Night vision: Yes
- Night vision distance: 15 m
- LED type: IR
Video
- Maximum resolution: 2560 x 1440 pixels
- Total megapixels: 4 MP
- Video compression formats: H.264, H.265
- Supported graphics resolutions: 2560 x 1440
- Frame rate: 15 fps
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Bit rate: 2 Mbps
Audio
- Built-in speaker(s): Yes
- Built-in microphone: Yes
- Audio detection: Yes
Network
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Wi-Fi data rate (max): 150 Mbit/s
- Bluetooth: No
- Channel bandwidth: 20 MHz
Storage
- Built-in HDD: No
- Flash memory: 32000 MB
Security
- Password protection: Yes
- Video motion detection: Yes
- Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
- Intelligent Video Surveillance (IVS) system features: Human detection
- Motion sensor: Yes
- Motion sensor technology: Passive infrared (PIR) sensor
- Anti-flicker: Yes
- Heartbeat: Yes
- Digital watermark: Yes
Power
- Battery capacity: 10400 mAh
- Power source type: Battery
- Power consumption (max): 10 W
- DC output voltage: 5
- DC output current: 2 A
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 186 mm
- Depth: 166 mm
- Height: 116 mm
- Weight: 803 g
Packaging data
- Package width: 216 mm
- Package depth: 145 mm
- Package height: 203 mm
- Package weight: 1.06 kg
Sustainability
- Sustainability compliance: Yes
- Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE
Packaging content
- Number of cameras: 1
- Cables included: USB
- Screws included: Yes
- Drilling template included: Yes
- Manual: Yes
