Description

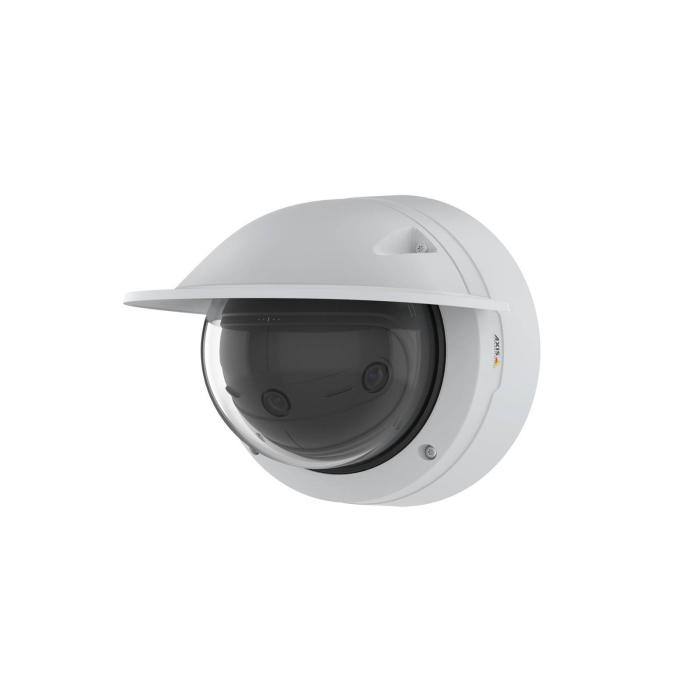

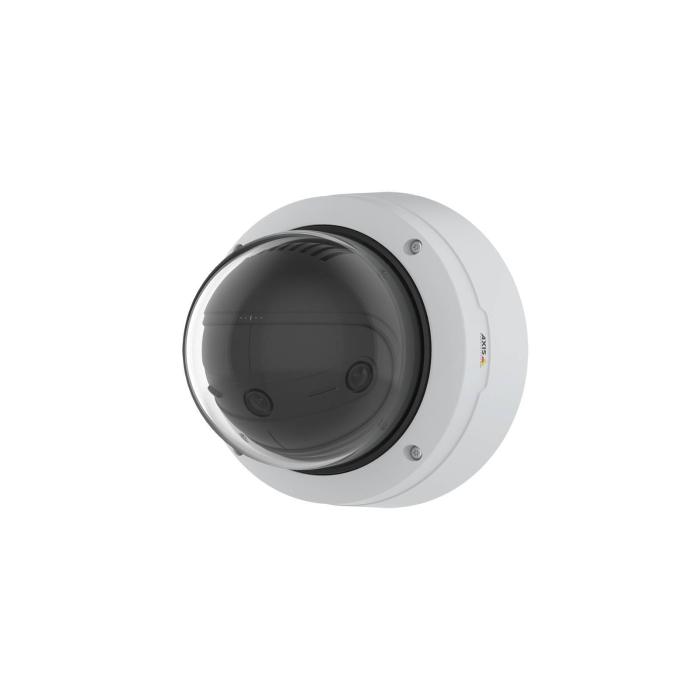

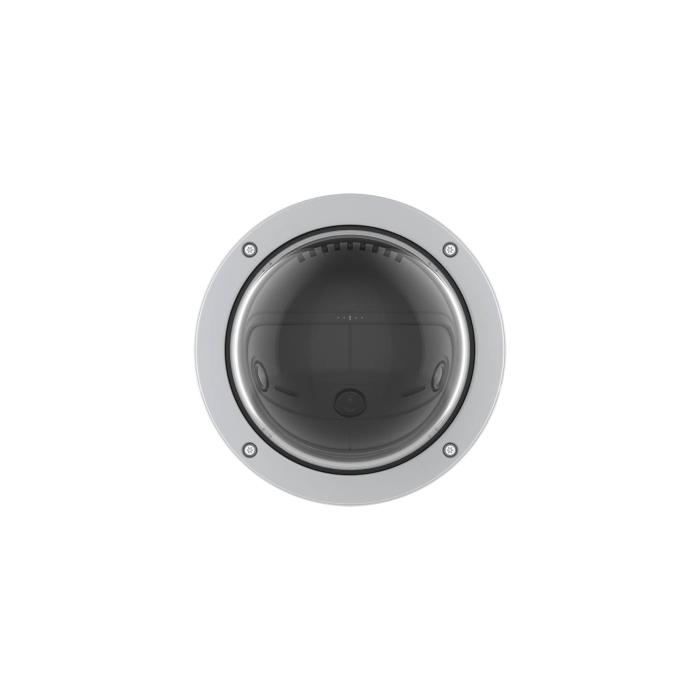

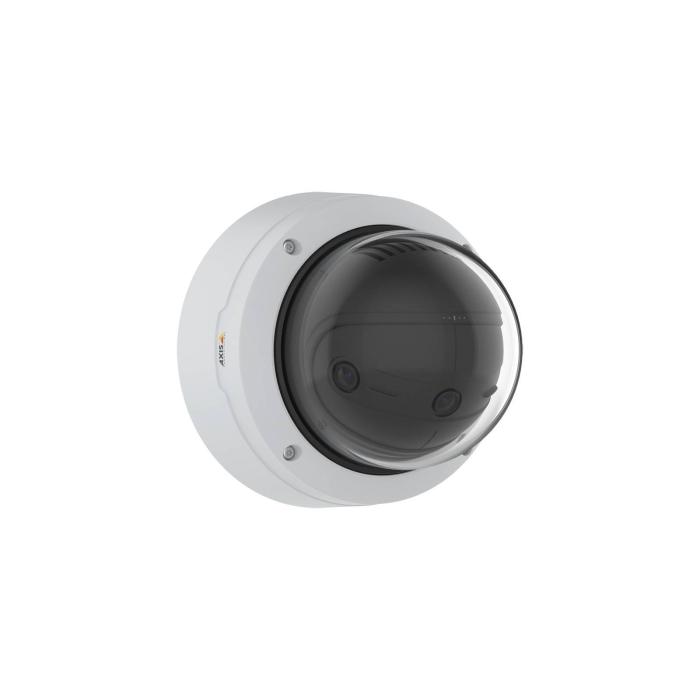

The Axis 02060-001 security camera is an IP security model for outdoor use offering a resolution of 5120 x 2560 pixels, with a wide dynamic range (WDR) and day/night mode with an infrared cut filter for clear capture in low-light conditions, down to 0.05 lx. Its aluminium and polycarbonate housing in white features IP66 and IP67 protection and IK10 impact resistance, and supports ceiling or wall mounting with pan and tilt control covering a horizontal angle of 180° and vertical of 90°. Wired, this video camera is designed for reliable surveillance and covers a wide area without the need for complex adjustments.
Specifications
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Number of languages: 11
- Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
- Certification: EAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A
Design
- Mounting type: Ceiling/wall
- Product colour: White
- Housing material: Aluminium, Polycarbonate (PC)
- International Protection (IP) code: IP66, IP67
- IK code: IK10
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.05 lx
- Lens viewing angle, horizontal: 180°
- Lens viewing angle, vertical: 90°
- Tilt angle range: 0 - 50°
- Pan range: -180 - 180°
- Camera shutter speed: 1/91000 - 1/25, 1/50000 - 1/25 s
Image sensor
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Maximum aperture number: 2
- Fixed focal length: 3.2 mm
Video
- Maximum resolution: 5120 x 2560 pixels
- Total megapixels: 13 MP
- Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
- Frame rate: 30 fps
- Video streaming: Yes
- Noise reduction: Yes
- Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Audio
- Audio system: 2-way
- Voice codecs: G.711, G.726, OPUS
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Networking standards: IEEE 802.1x, IEEE 802.3at
- Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS , TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UP
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- Flash memory: 512 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Microphone in: Yes
Security
- Password protection: Yes
- IP address filtering: Yes
- Security algorithms: EAP-TLS, FIPS 140-2
- HTTPS encryption: Yes
Management features
- Web-based management: Yes
Power
- Power source type: PoE
- Power consumption (typical): 11 W
- Power consumption (max): 18 W
Operational conditions
- Operating temperature (T-T): -40 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 100%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 206 mm
- Height: 221 mm
- Weight: 2.2 kg
Packaging content
- Number of cameras: 1
Logistics data
- Harmonized System (HS) code: 85258900
