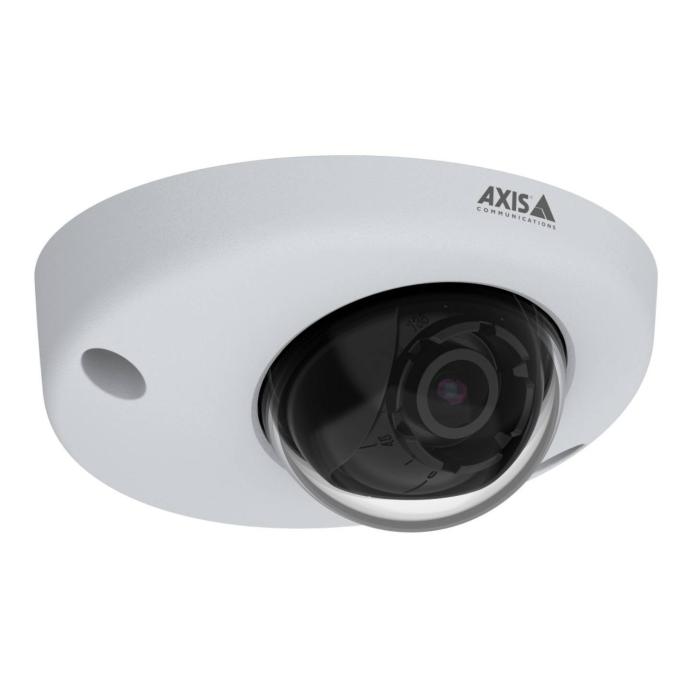

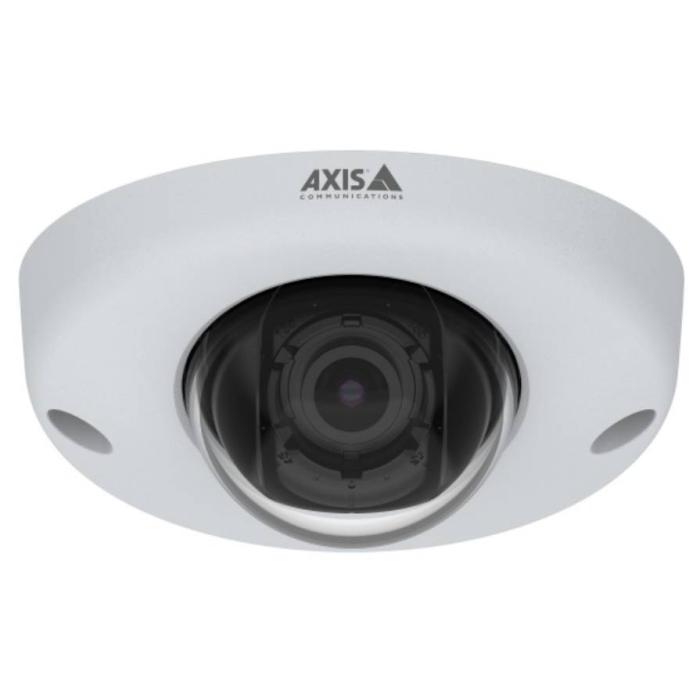

Axis 01933-001 security camera Dome IP security camera 1920 x 1080 pixels Ceiling

Not avaliable

More info

Brand: AXIS
SKU: 114567 PRC: 361564 EAN: 7331021069275 PN: 01933-001

Description

Specifications

Performance

  • Type: IP security camera
  • Connectivity technology: Wired
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Certification: 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS

Design

  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black, White
  • Housing material: Aluminium
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Fog proof: Yes

Camera

  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.01 lx
  • Angle of rotation: 350°
  • Lens viewing angle, horizontal: 110°
  • Lens viewing angle, vertical: 62°
  • Tilt angle range: 15 - 90°
  • Pan range: -30 - 30°
  • Camera shutter speed: 1/33500 - 2 s

Image sensor

  • Number of sensors: 1
  • Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
  • Progressive scan: Yes
  • Sensor type: CMOS

Lens system

  • Number of lenses: 1
  • Maximum aperture number: 1.6
  • Fixed focal length: 2.8 mm

Video

  • Maximum resolution: 1920 x 1080 pixels
  • Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
  • Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080)
  • Frame rate: 45 fps
  • Video streaming: Yes
  • Image quality adjustment: Brightness, Contrast, Sharpness
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Image stabilizer: Yes
  • Bit rate control: Variable Bit Rate (VBR)

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II),
  • Number of users: 8 user(s)
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast

Storage

  • Flash memory: 512 MB
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

  • Ethernet LAN (RJ-45) ports: 1

Security

  • Password protection: Yes
  • Video motion detection: Yes
  • Active tampering alarm: Yes
  • IP address filtering: Yes
  • HTTPS encryption: Yes

Power

  • Power source type: PoE
  • Power consumption (typical): 4.2 W
  • Power consumption (max): 6.4 W

Operational conditions

  • Operating temperature (T-T): -40 - 55 °C
  • Storage temperature (T-T): -40 - 65 °C
  • Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

  • Width: 110 mm
  • Depth: 110 mm
  • Height: 49.5 mm
  • Weight: 410 g

Packaging content

  • Number of cameras: 1

Logistics data

  • Harmonized System (HS) code: 85258900
