Description

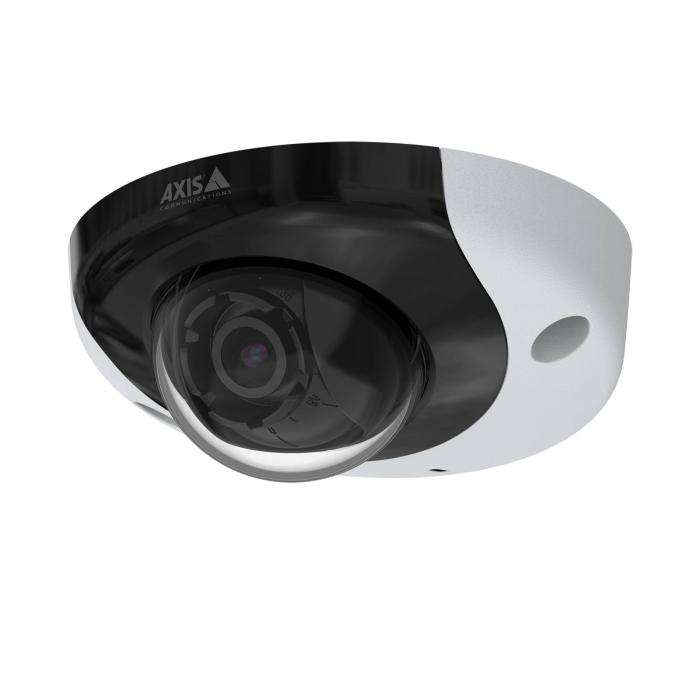

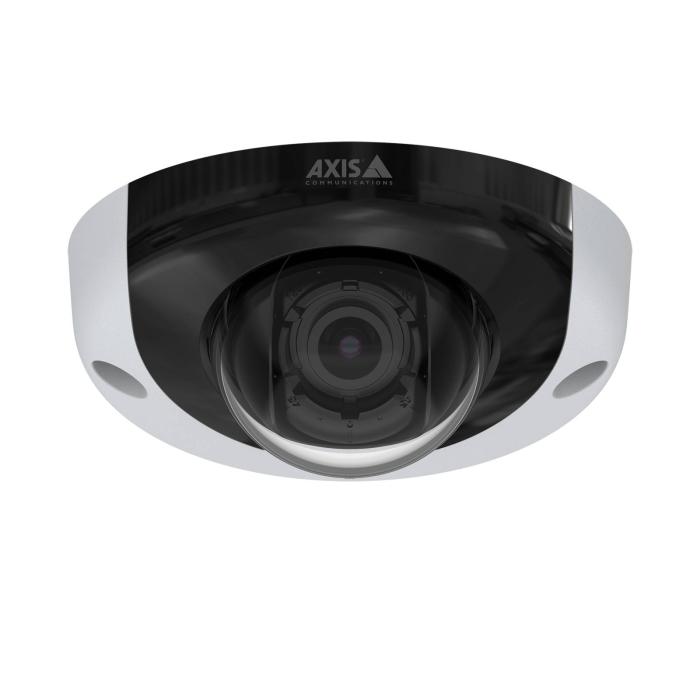

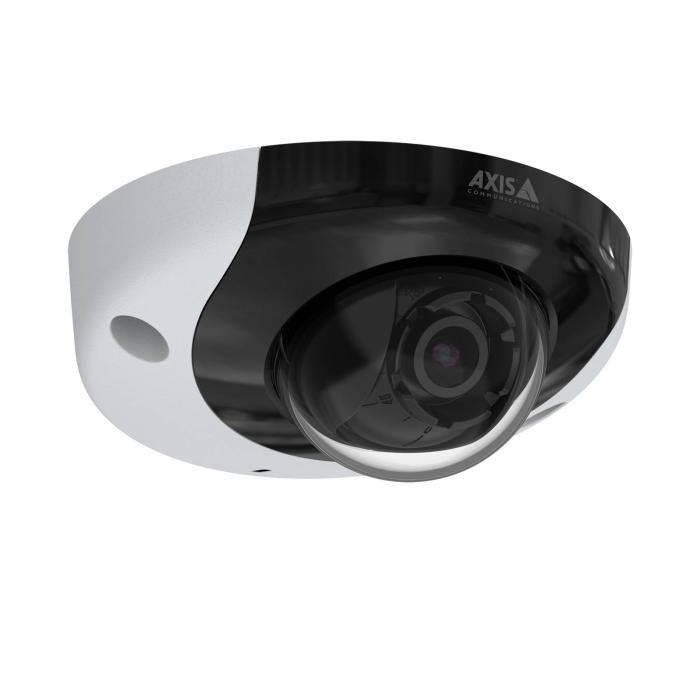

The Axis 01932-021 security camera, IP-type and dome format, is designed for ceiling mounting with an aluminium housing in black and white finishes. It offers a resolution of 1920 x 1080 pixels, a horizontal field of view of 110° and a vertical one of 62°, with digital PTZ control allowing pan movement between -30 and 30°. Its day/night mode and wide dynamic range (WDR) facilitate capture in variable light conditions, while its IP66/IP67 protection, IK10 rating and fog resistance ensure reliable operation outdoors. The connection is wired and includes preset points for agile management of orientation.
Specifications
Performance
- Type: IP security camera
- Connectivity technology: Wired
- PTZ control: Yes
- PTZ modes: Digital PTZ
- Preset points: Yes
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/
Design
- Form factor: Dome
- Mounting type: Ceiling
- Product colour: Black, White
- Housing material: Aluminium
- International Protection (IP) code: IP66, IP67
- IK code: IK10
- Fog proof: Yes
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.01 lx
- Angle of rotation: 350°
- Lens viewing angle, horizontal: 110°
- Lens viewing angle, vertical: 62°
- Tilt angle range: 15 - 90°
- Pan range: -30 - 30°
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Number of lenses: 1
- Fixed focal length: 2.8 mm
Night vision
- Night vision: Yes
- Night vision distance: 15 m
- LED type: IR
- Infra-red wavelength: 940 nm
Video
- Maximum resolution: 1920 x 1080 pixels
- Total megapixels: 2 MP
- Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
- Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080)
- Frame rate: 45 fps
- Video streaming: Yes
- Image quality adjustment: Brightness, Contrast, Sharpness
- Privacy masking: Yes
- Text caption overlay: Yes
- Image stabilizer: Yes
- Bit rate control: Variable Bit Rate (VBR)
Audio
- Audio system: 1-way
- Audio formats supported: AAC-LC, G.711, LPCM, PCM
- Sample rate: 48 kHz
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II),
- Number of users: 8 user(s)
- Quality of Service (QoS) support: Yes
- Streaming method: Multicast
Storage
- Card reader integrated: Yes
- Flash memory: 512 MB
Ports & interfaces
- Microphone in: Yes
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- HTTPS encryption: Yes
Power
- Power source type: PoE
- Power consumption (typical): 6.6 W
- Power consumption (max): 11.8 W
Operational conditions
- Operating temperature (T-T): -40 - 55 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 95%
Weight & dimensions
- Width: 110 mm
- Depth: 110 mm
- Height: 49.4 mm
- Weight: 410 g
Packaging content
- Number of cameras: 10
- Manual: Yes
Logistics data
- Harmonized System (HS) code: 85258900
