Description

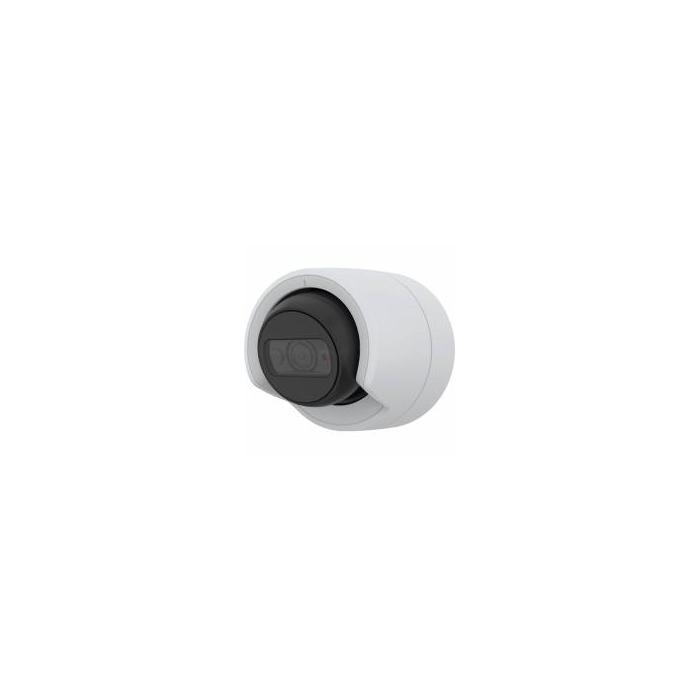

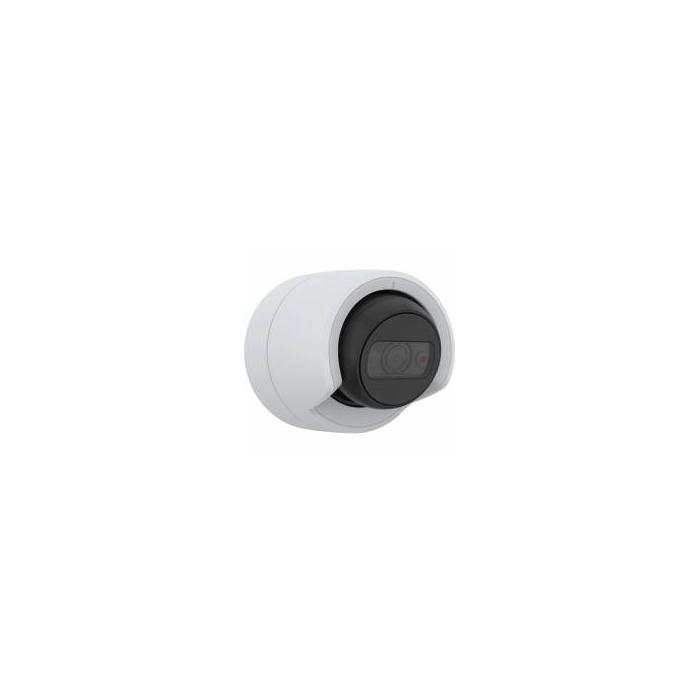

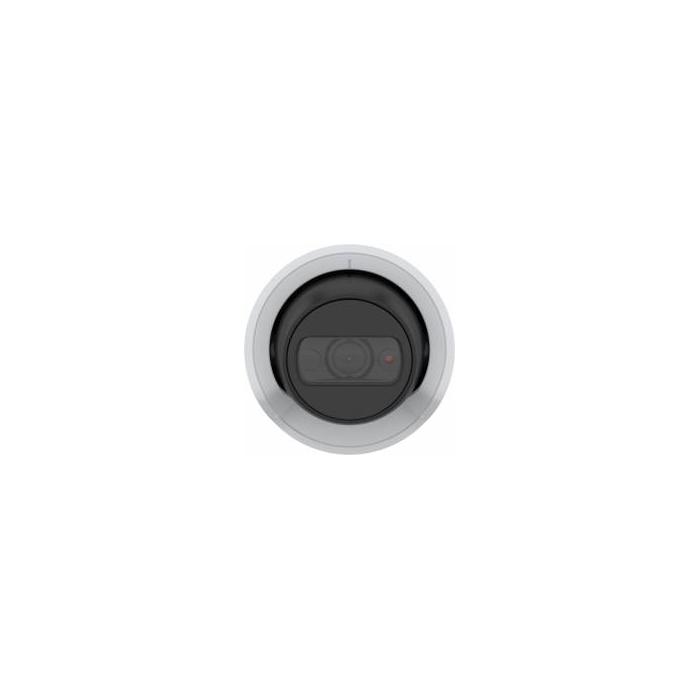

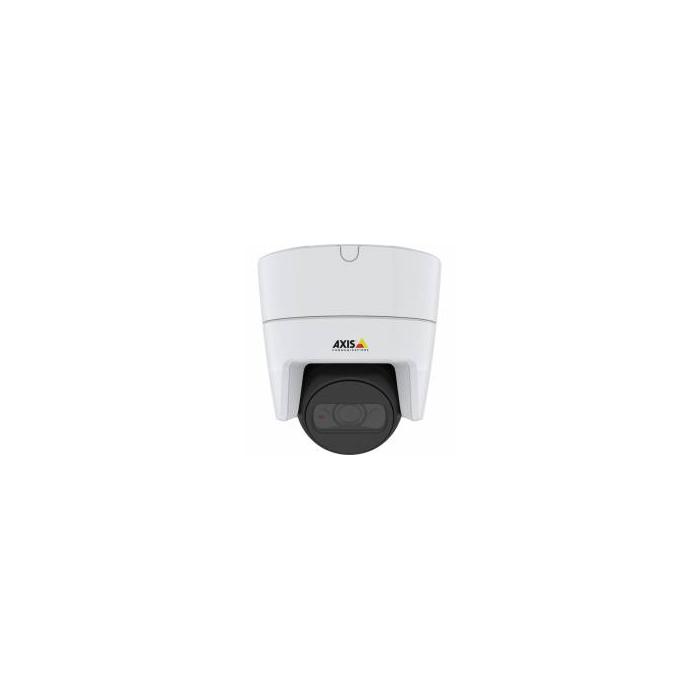

The Axis 01605-001 is an IP security camera with a cushion form factor, designed for ceiling or wall installation outdoors, with a white finish and IP66 and IK08 protection. It offers vision with a resolution of 2688 x 1512 pixels, a 130° horizontal angle, infrared cut-off filter, and day/night mode, as well as PTZ control with pan from -180 to 180°, tilt from 0 to 60°, and rotation of 190°. Its shutter speed ranges from 1/33500 to 1/5 seconds, with wired connectivity and controllable pan and tilt functions. This AXIS model incorporates cable transmission and is intended for continuous surveillance in demanding conditions, with angle and movement adjustment to cover wide areas.
Specifications
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired
- PTZ control: Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
- Certification: EN 55024, EN 55032 A, EN 55035, EN 61000-6-1,EN 61000-6-2, FCC 15 B A, KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A, ICES-3(A)/NMB-
Design
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: White
- International Protection (IP) code: IP66
- IK code: IK08
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0 lx
- Angle of rotation: 190°
- Lens viewing angle, horizontal: 130°
- Lens viewing angle, vertical: 72°
- Tilt angle range: 0 - 60°
- Pan range: -180 - 180°
- Camera shutter speed: 1/33500 - 1/5 s
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Number of lenses: 1
- Fixed focus: Yes
- Maximum aperture number: 2.1
- Fixed focal length: 2.4 mm
Night vision
- Night vision: Yes
- Night vision distance: 20 m
- LED type: IR
- Infra-red wavelength: 850 nm
Video
- Maximum resolution: 2688 x 1512 pixels
- Total megapixels: 4 MP
- Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG
- Supported graphics resolutions: 320 x 240, 2688 x 1512
- Frame rate: 30 fps
- Video streaming: Yes
- Image quality adjustment: Brightness, Contrast, Sharpness
- Privacy masking: Yes
- Bit rate control: Variable Bit Rate (VBR)
Network
- Ethernet interface type: Gigabit Ethernet
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), D
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- Flash memory: 512 MB
- Internal memory: 1024 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Password protection: Yes
- Video motion detection: Yes
- IP address filtering: Yes
- HTTPS encryption: Yes
Power
- Power source type: PoE
- Power consumption (typical): 4.6 W
- Power consumption (max): 8.7 W
Operational conditions
- Operating temperature (T-T): -30 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 100%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Height: 94 mm
- Diameter: 10.1 cm
- Weight: 390 g
Packaging content
- Number of cameras: 1
- Manual: Yes
Logistics data
- Harmonized System (HS) code: 85258900
