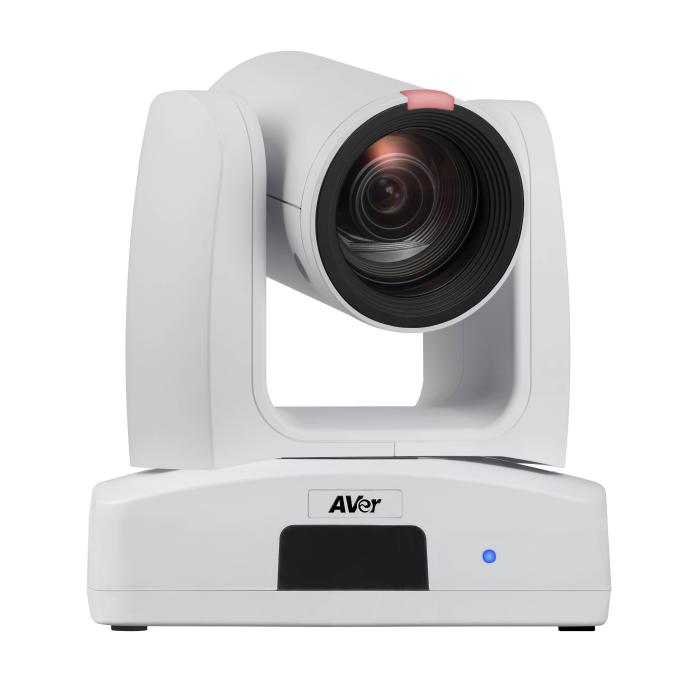

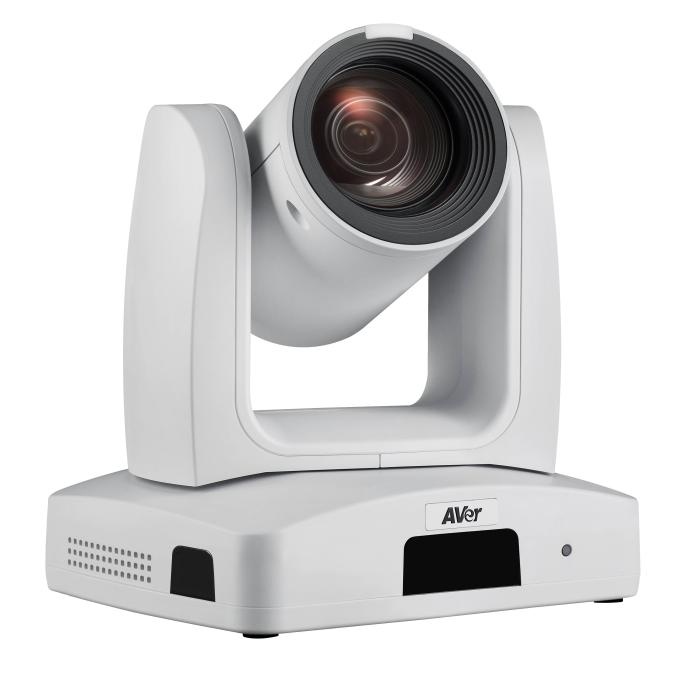

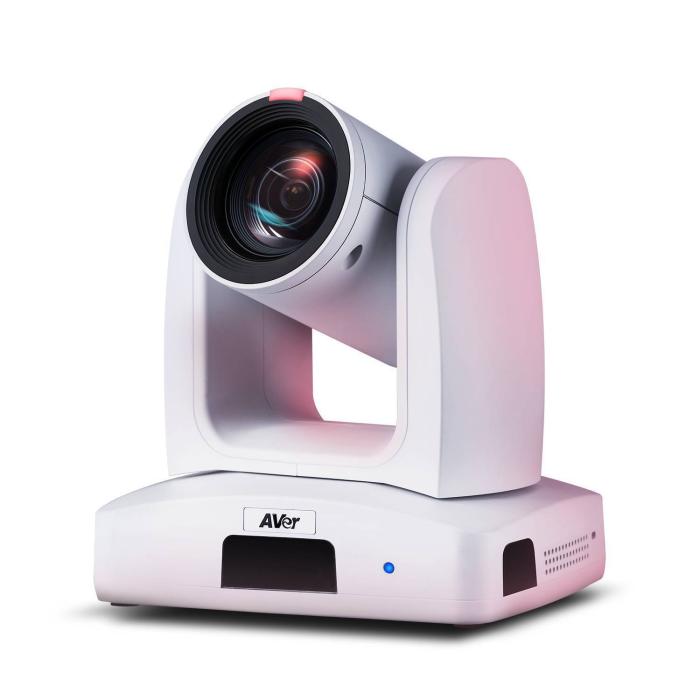

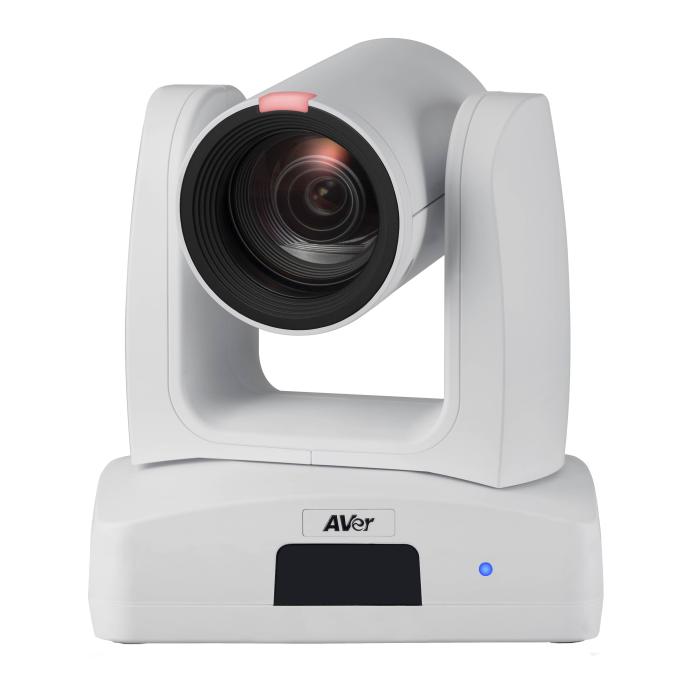

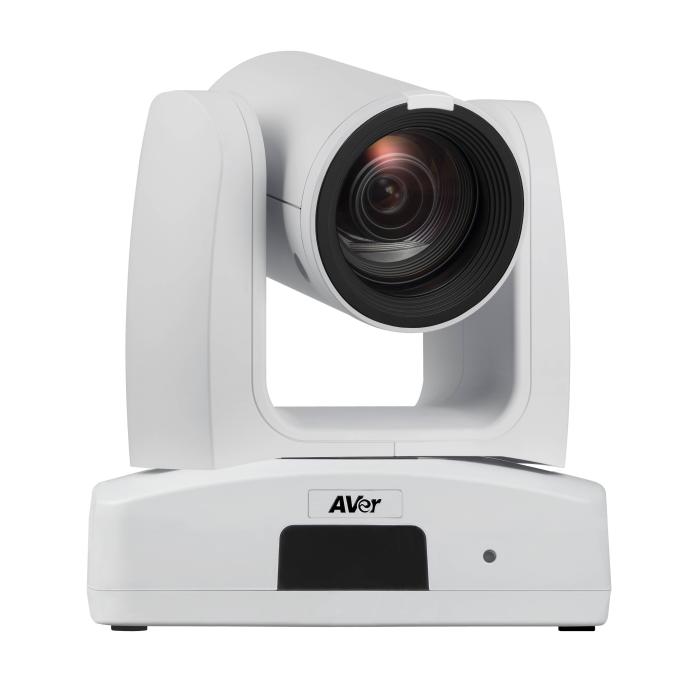

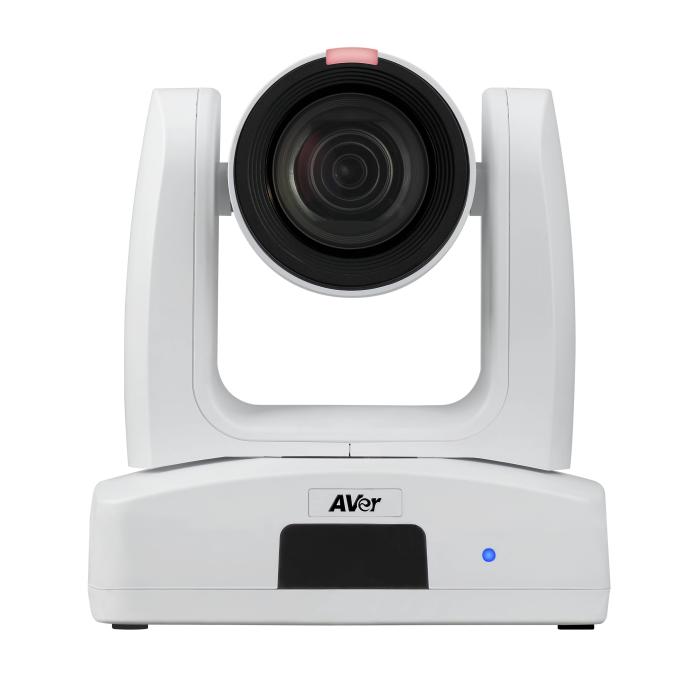

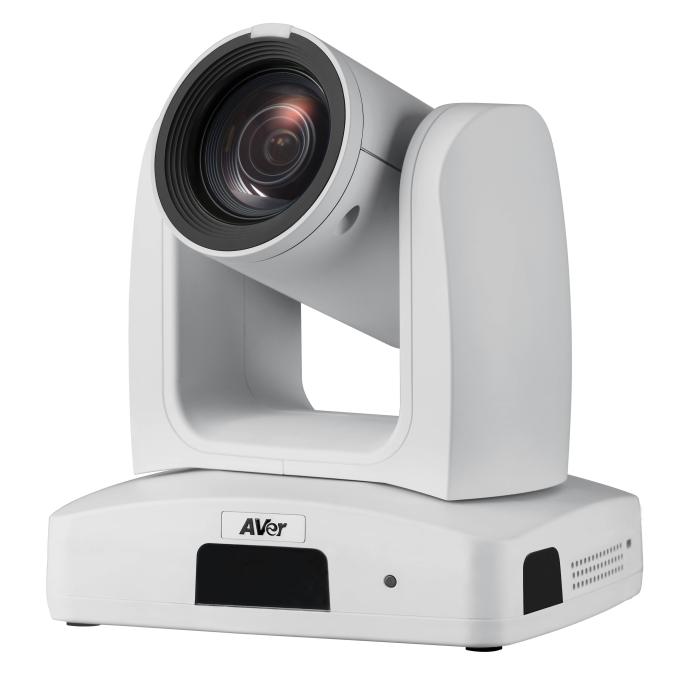

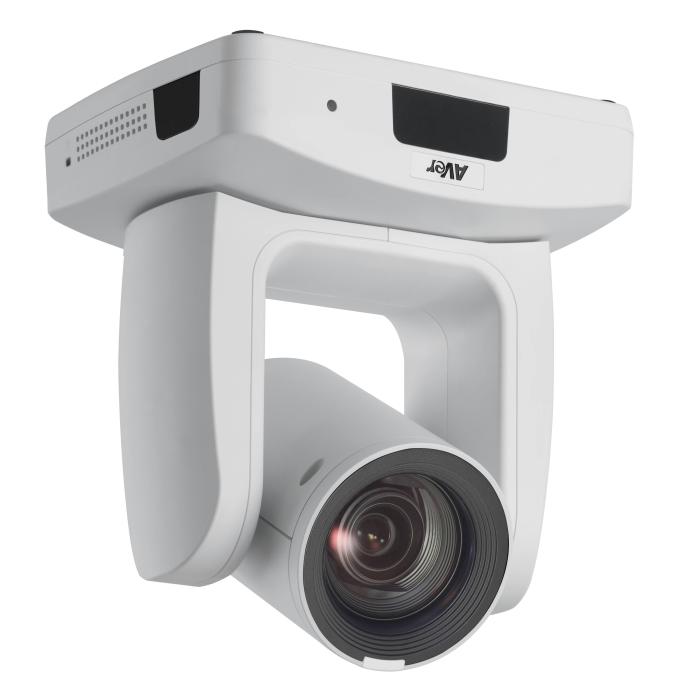

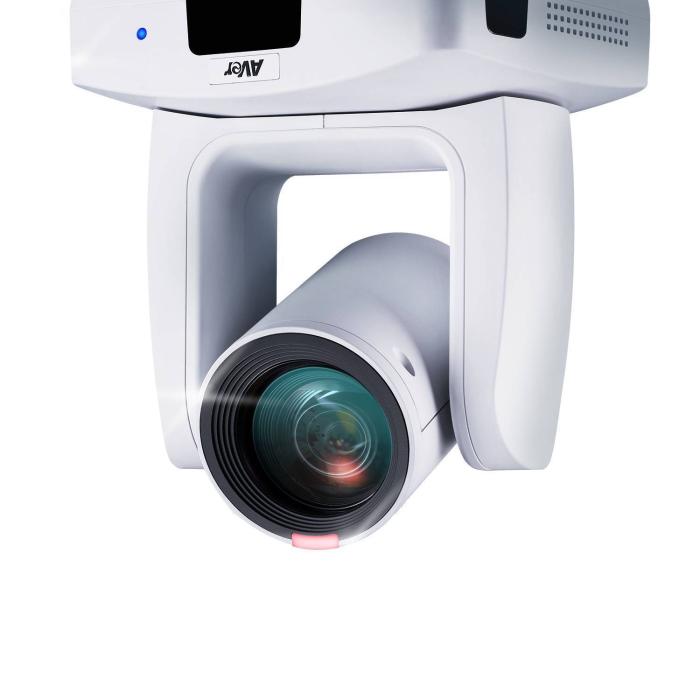

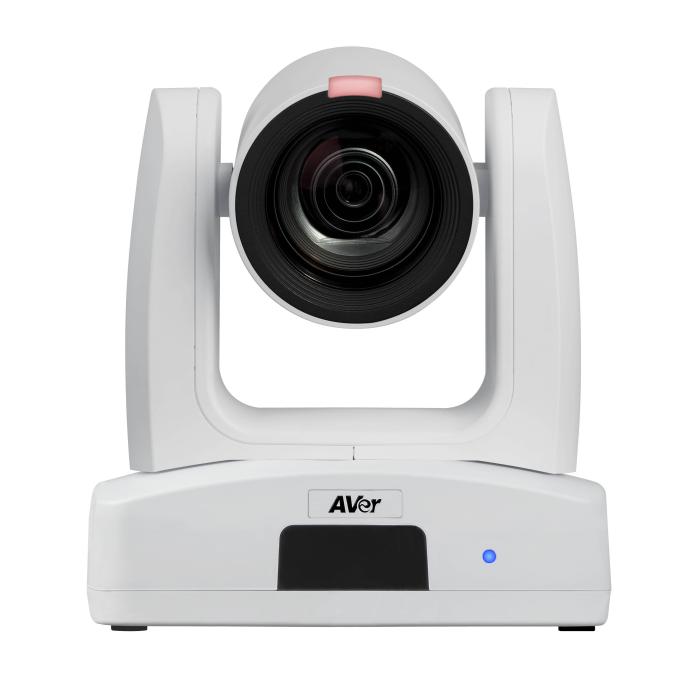

Name: AVer PTZ330UV2 8 MP White 3840 x 2160 pixels 60 fps Exmor 25.4 / 2.8 mm (1 / 2.8'')
Brand: AVER
Price: 2588.02 USD
Availability: InStock

AVer PTZ330UV2 8 MP White 3840 x 2160 pixels 60 fps Exmor 25.4 / 2.8 mm (1 / 2.8'')

$2,588.02

$2,588.02 without VAT

Amount

Brand: AVER

SKU: 106516 PRC: 527824 EAN: 4719552127696 PN: 61S3320000AH

Description

Specifications

Camera

Camera type: Single camera
Megapixel (approx.): 8 MP
Sensor type: Exmor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Zoom capability: Yes
Optical zoom: 30x
Digital zoom: 1x
Combined zoom: 30x
Focal length range: 4.5 - 135 mm
Field of view (wide): 69.2°
Field of view (tele): 2.8°
Horizontal field of view (wide): 62.3°
Horizontal field of view (tele): 2.5°
Vertical field of view (wide): 37.3°
Vertical field of view (tele): 1.4°
Minimum illumination: 0.46 lx
Progressive scan: Yes
Flip & mirror: Yes
White balance: ATW, Auto, Manual, One push
Focus adjustment: Auto/Manual
Wide Dynamic Range (WDR): Yes
Back Light Compensation (BLC): Yes
Number of camera presets: 10
Gain control type: Auto/Manual
PTZ control: Yes
PTZ protocols: Pelco-P/D, VISCA
3D NR (Noise Reduction): Yes
Snapshot: Yes
Face tracking: Yes
Photo feature: Yes

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 60 fps
Supported video modes: 720p, 1080p, 2160p
Video formats supported: M-JPEG, YUY2
Number of TV lines: 1400

Design

Product colour: White

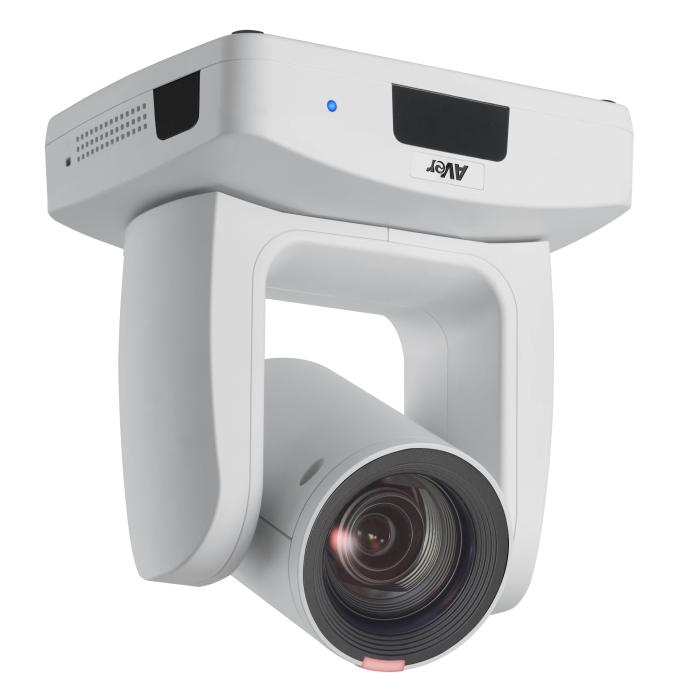

Mounting type: Stand/Wall mounting
Image stabilizer: Yes
Tilt angle range: -30 - 90°
Pan range: -170 - 170°
Tally light: Yes
Web-based management: Yes
Tilt speed (min): 0.1 °/sec
Tilt speed (max): 100 °/sec
Tilt preset speed: 200 °/sec
Pan speed (min): 0.1 °/sec
Pan speed (max): 100 °/sec
Pan preset speed: 200 °/sec
Cable management: Yes
Country of origin: Taiwan

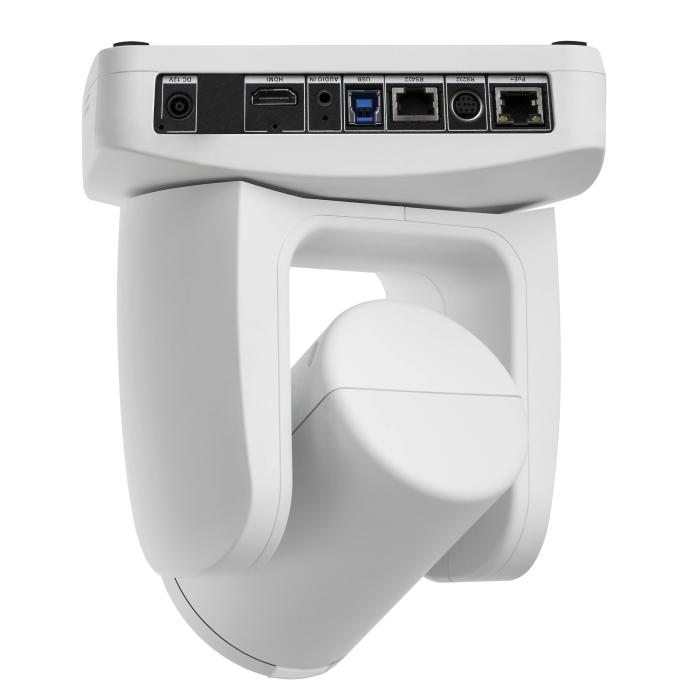

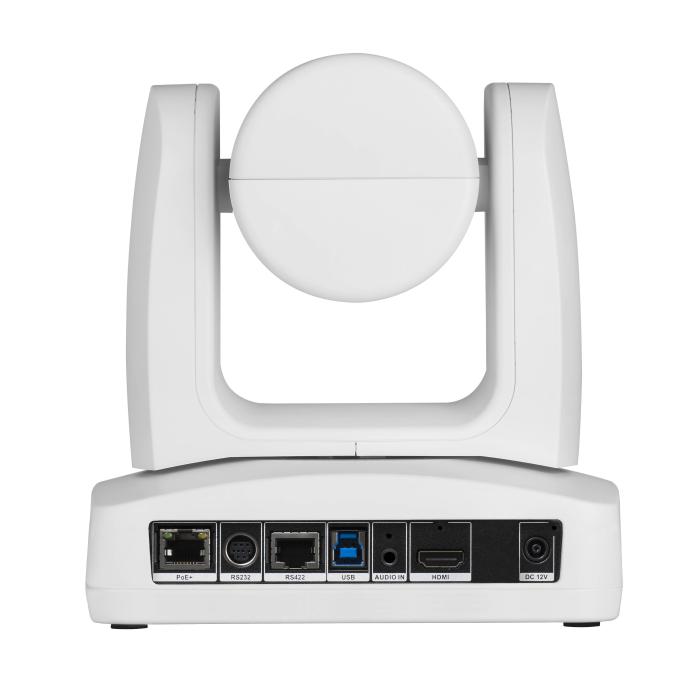

Ports & interfaces

HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 1
RS-232 ports: 1
RS-422 ports: 1
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
3G-SDI output: Yes
Line-in: Yes

Power

Power source type: DC
AC input frequency: 50/60 Hz
AC input voltage: 100-240 V
DC input voltage: 12 V
Input current: 2 A
Power consumption (typical): 19 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 20 - 95%

Packaging content

Power supply included: Yes
Remote control included: Yes
Cables included: RS-232
Warranty card: Yes
Screws included: Yes
Number of screws: 8
Mounting kit: Yes
AC adapter included: Yes
Cable ties included: Yes
Number of cable ties: 4
Mounting brackets included: Yes

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Other operating systems supported: iOS

Performance

Screen mirroring: Yes
Auto framing: Yes
Auto-tracking: Yes
Remote control function: Yes
Remote control type: IR
Cable lock slot: Yes
Cable lock slot type: Kensington

Audio

Audio channels: 2
Audio codecs: AAC-LC

Technical details

Warranty period: 2 year(s)

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Streaming capability: Yes
Network streaming: Yes
Multi-stream capability: 5: HDMI / RTSP / NDI HX2 / USB(4Kp60) & 3G-SDI(1080P60) or 4: HDMI / RTSP / NDI HX3(4Kp60) & 3G-SDI(1080P60)
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate range: 512 - 12000 Kbit/s
Network configuration: DHCP, IP Address Gateway, Subnet Mask, DNS
Supported network protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
