Description

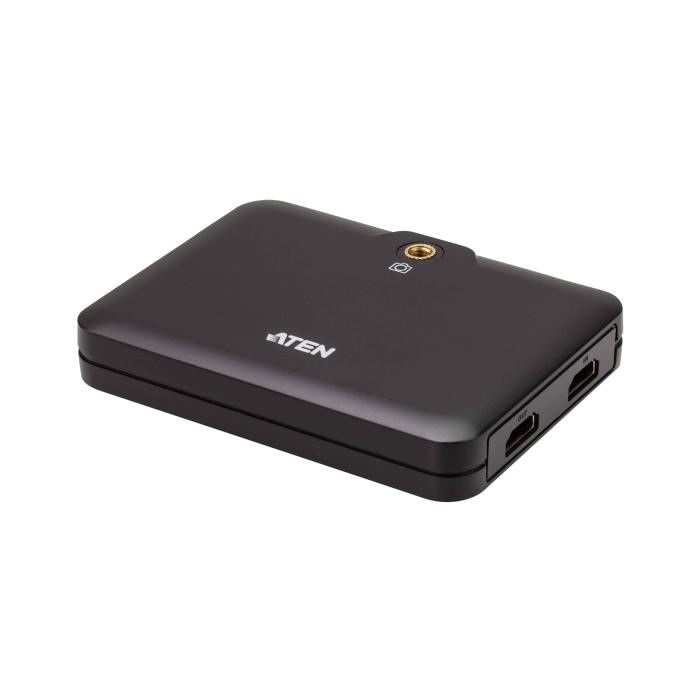

Connect your HDMI source to the ATEN CAMLIVE+ UC3021 and capture UVC video up to 2160p at 60fps to your computer via USB 3.2 Gen 1, all in a black plastic housing with a USB Type-B connector and one HDMI 2.0 input. This external capture device works plug and play, requiring no internal installation, and is compatible with Mac and Android. It also includes a 5V DC input socket for additional power and supports 480p, 720p, 1080p, and 2160p, with an HDMI output for monitoring while you record. A practical device for getting your video signal to a computer with a direct, hassle-free connection.
Specifications
Performance
- Product colour: Black
- Internal: No
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1)
- Plug and Play: Yes
- Housing material: Plastic
Video
- Maximum frame rate: 60 fps
- Supported video modes: 480p, 720p, 1080p, 2160p
Ports & interfaces
- USB port: Yes
- USB connector type: USB Type-B
- USB version: 3.2 Gen 1 (3.1 Gen 1)

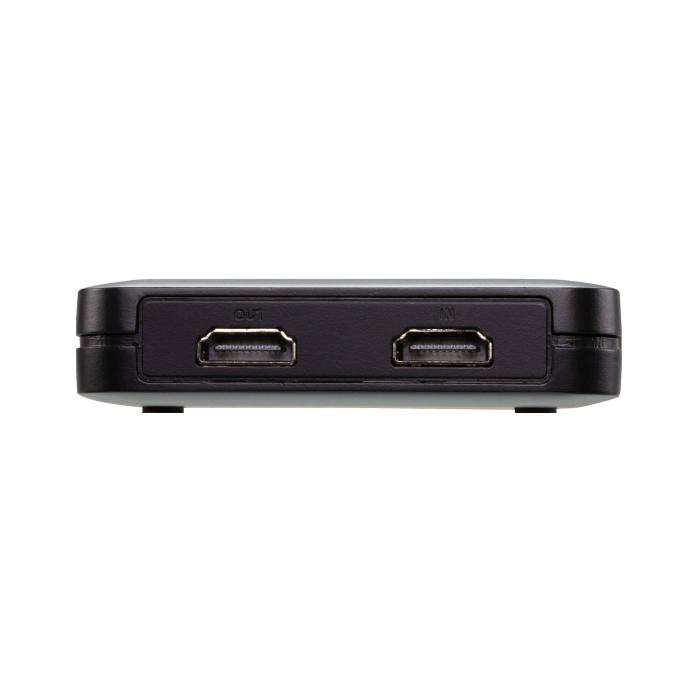

- HDMI ports quantity: 2
- HDMI in: 1
- Number of HDMI outputs: 1
- HDMI version: 2.0
- DC-in jack: Yes
Power
- AC input voltage: 5 V
Software
- Windows operating systems supported: Windows 10
- Mac compatibility: Yes
- Other operating systems supported: Android
System requirements
- Minimum processor: Intel i3 Dual Core 2.8Ghz
- Minimum RAM: 4000 MB
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
Weight & dimensions
- Width: 84.9 mm
- Depth: 114.9 mm
- Height: 20 mm
- Weight: 160 g
Other features
- Master (outer) case width: 326 mm
- Master (outer) case height: 162 mm
Packaging data
- Package weight: 280 g
- Package height: 62 mm
- Package width: 140 mm
- Package depth: 193 mm
Logistics data
- Products per master (outer) case: 10 pc(s)
- Master (outer) case gross weight: 3.42 kg
- Master (outer) case length: 345 mm
- Master (outer) case net weight: 1.6 kg
- Harmonized System (HS) code: 85176990
