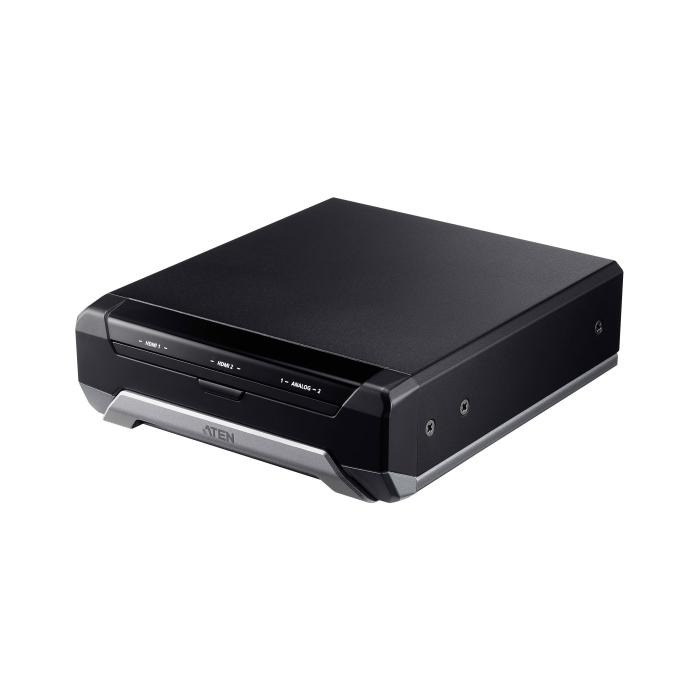

ATEN CAMLIVE™ PRO (Dual HDMI to USB-C UVC Video Capture)

$263.75

$263.75 without VAT

ATEN CAMLIVE™ PRO (Dual HDMI to USB-C UVC Video Capture). More info

Amount

Brand: ATEN

SKU: 86507 PRC: 304818 EAN: 4719264649721 PN: uc3022-at-g

Description

Specifications

Performance

Product colour: Black, Silver
Internal: No
Host interface: USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max): 3840 x 2160 pixels
Housing material: Metal

Video

Supported resolutions: 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50
Maximum frame rate: 60 fps
Supported video modes: 720p, 1080p, 2160p

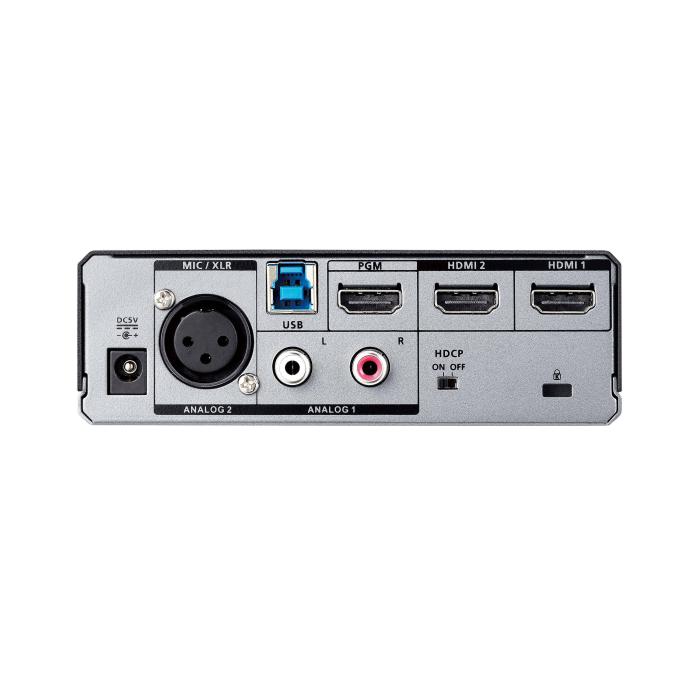

Ports & interfaces

USB port: Yes
USB connector type: USB Type-B
USB version: 3.2 Gen 1 (3.1 Gen 1)
HDMI ports quantity: 3
HDMI in: 2
Number of HDMI outputs: 1
Audio (L/R) in: 1
DC-in jack: Yes

Power

AC input voltage: 5 V

Software

Windows operating systems supported: Windows 10
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Other operating systems supported: Android, iOS

System requirements

Minimum processor: Intel i3 Dual Core 2.8Ghz
Minimum RAM: 4000 MB

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Technical details

Compliance certificates: RoHS

Weight & dimensions

Width: 151.8 mm
Depth: 130 mm
Height: 42.5 mm
Weight: 1.14 kg

Other features

Master (outer) case width: 283 mm
Master (outer) case height: 245 mm

Packaging data

Package weight: 1.64 kg
Package height: 220 mm
Package width: 95 mm
Package depth: 265 mm

Packaging content

AC adapter included: Yes
User guide: Yes

Logistics data

Products per master (outer) case: 5 pc(s)
Master (outer) case gross weight: 8.89 kg
Master (outer) case length: 520 mm
Master (outer) case net weight: 5.7 kg
Harmonized System (HS) code: 85176990
