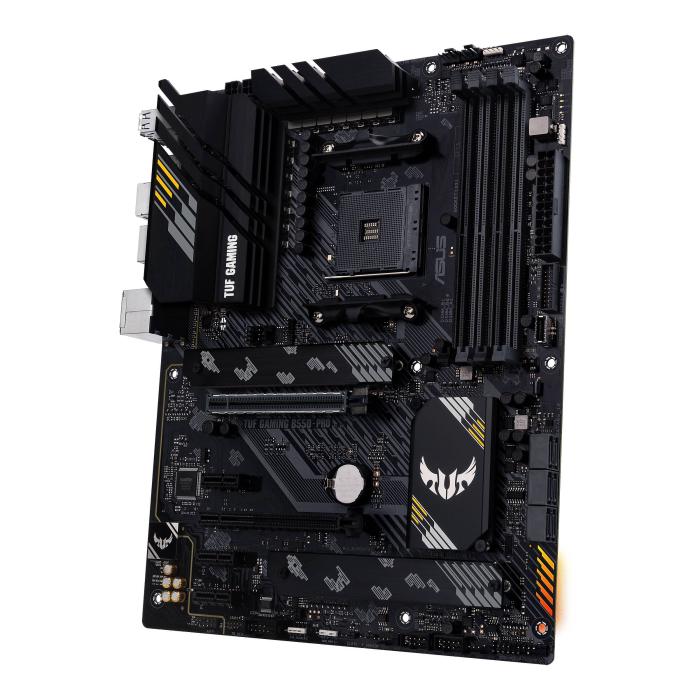

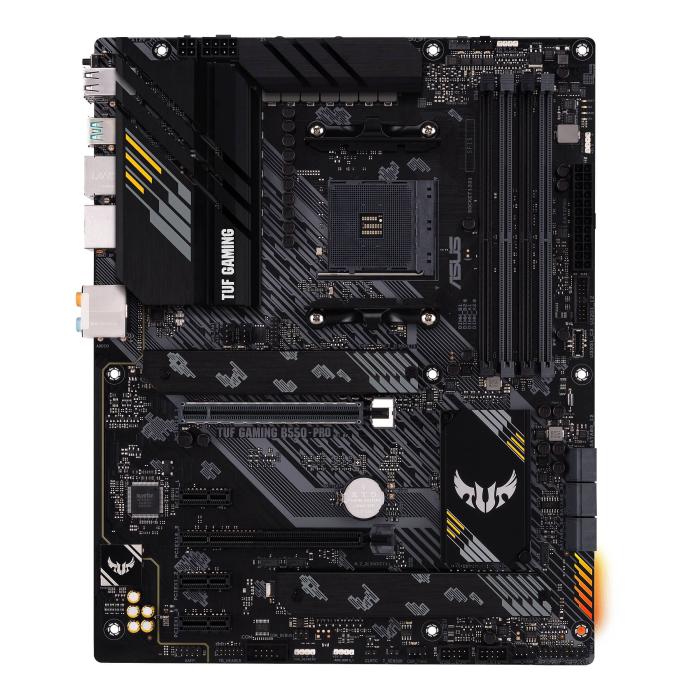

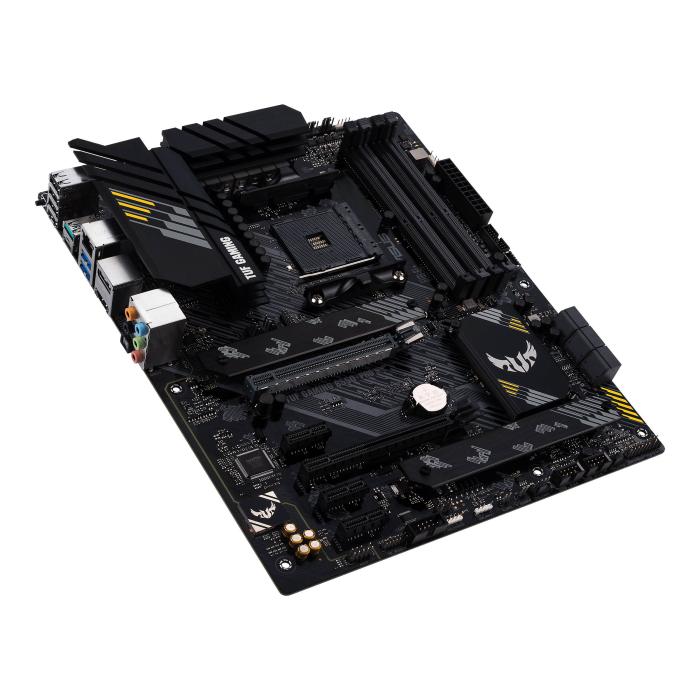

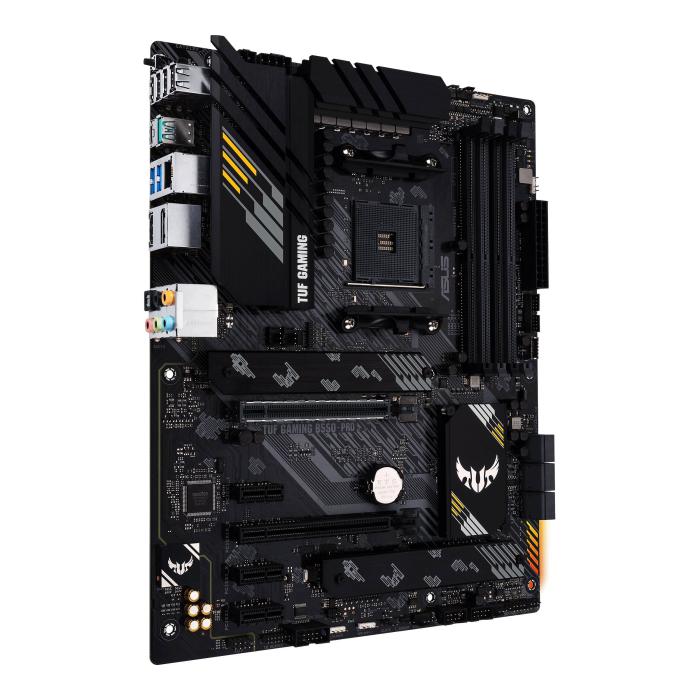

Name: ASUS TUF GAMING B550-PRO AMD B550 Socket AM4 ATX
Brand: ASUS
Price: 197.1 USD
Availability: InStock

ASUS TUF GAMING B550-PRO AMD B550 Socket AM4 ATX

$197.10

$197.10 without VAT

ASUS TUF GAMING B550-PRO AMD B550 Socket AM4 ATX. More info

Amount

Brand: ASUS

SKU: 86958 PRC: 309288 EAN: 4711081033721 PN: 90MB17R0-M0EAY0

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Athlon, AMD Ryzen 3000 Series
Supported processor sockets: Socket AM4

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4333, 4400, 4600 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 8
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: 2-Way CrossFireX
Maximum resolution: 3840 x 2160 pixels

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 6
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
Peripheral (Molex) power connectors (4-pin): 1
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
Thunderbolt headers: 1
12V power connector: Yes
RGB LED pin header: Yes

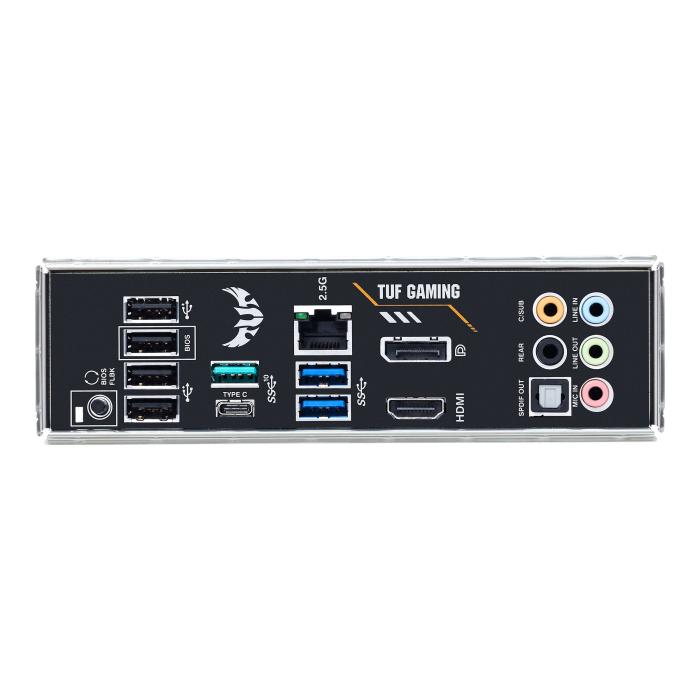

Rear panel I/O ports

Microphone in: Yes
S/PDIF out port: Yes
USB connector type: USB Type-A, USB Type-C
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Headphone outputs: 5

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125B
Wake-on-LAN ready: Yes
Wi-Fi: No

Features

Motherboard chipset: AMD B550
Audio chip: Realtek ALC S1200A
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 305 mm
Depth: 244 mm
Height: 68 mm

Packaging content

Cables included: SATA
Drivers included: Yes

Other features

Weight: 1.01 kg
