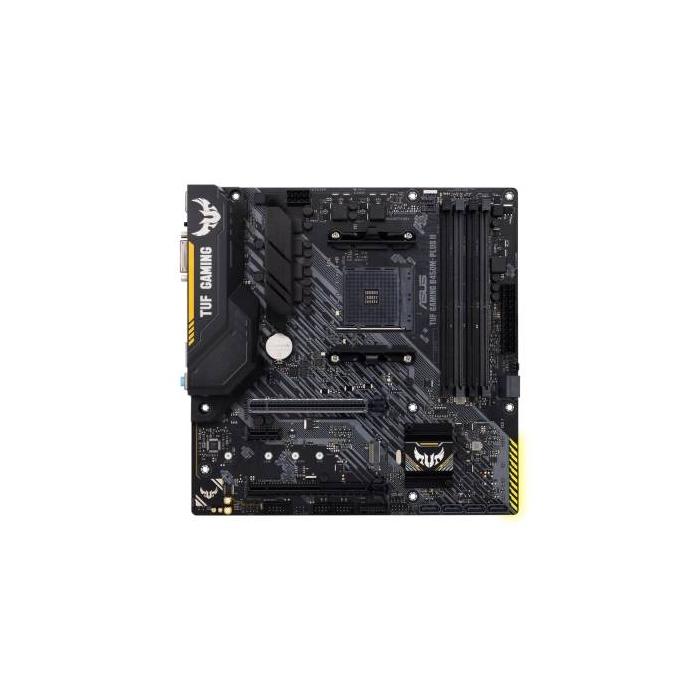

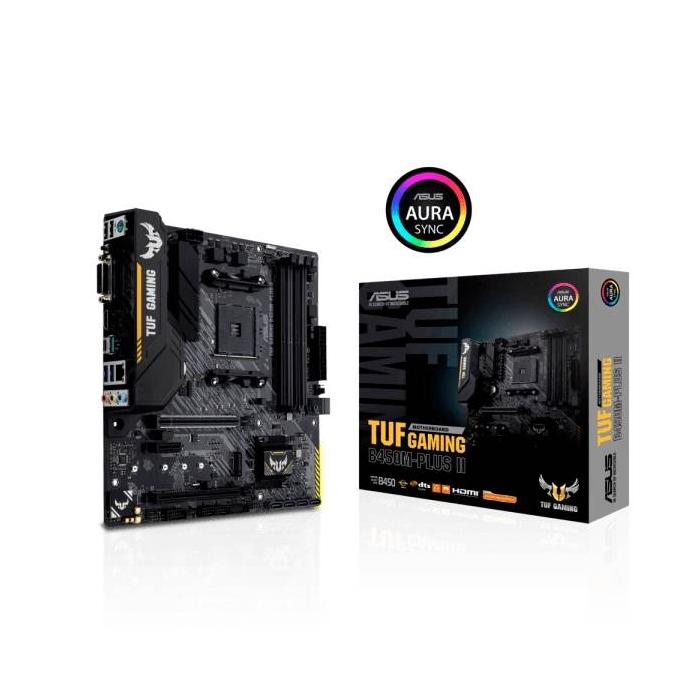

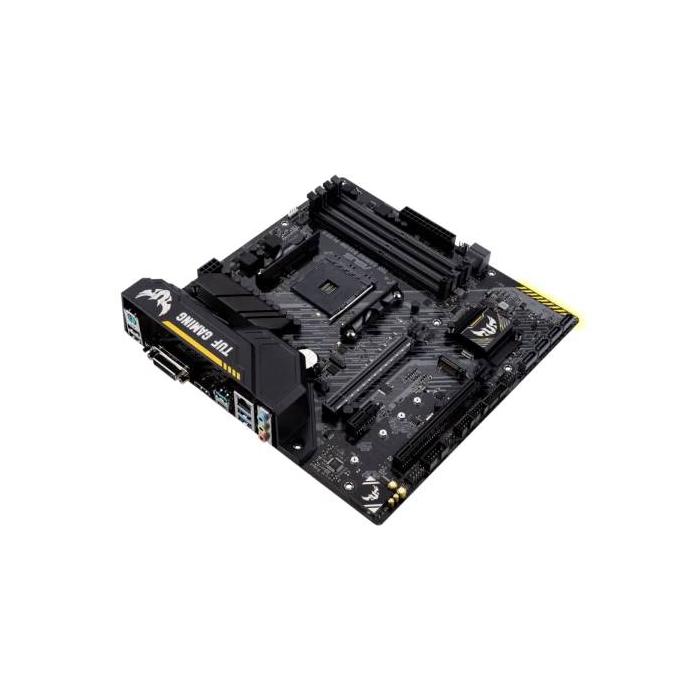

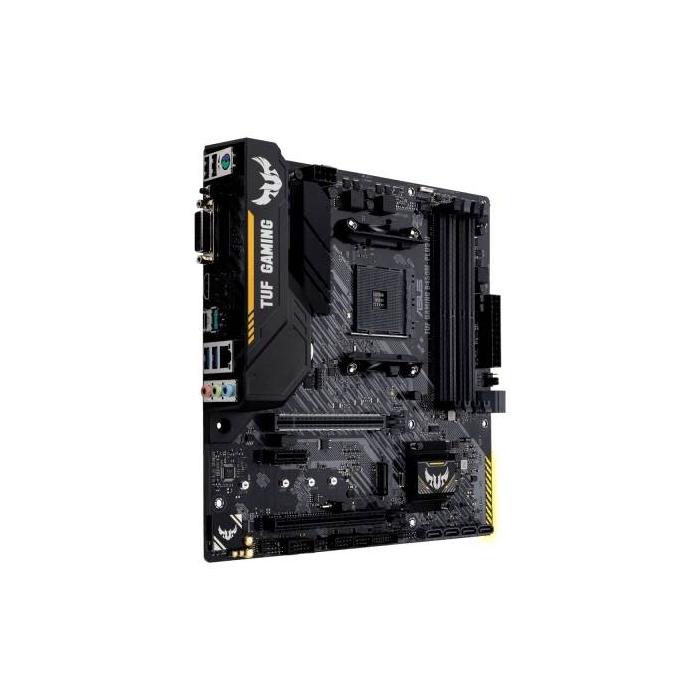

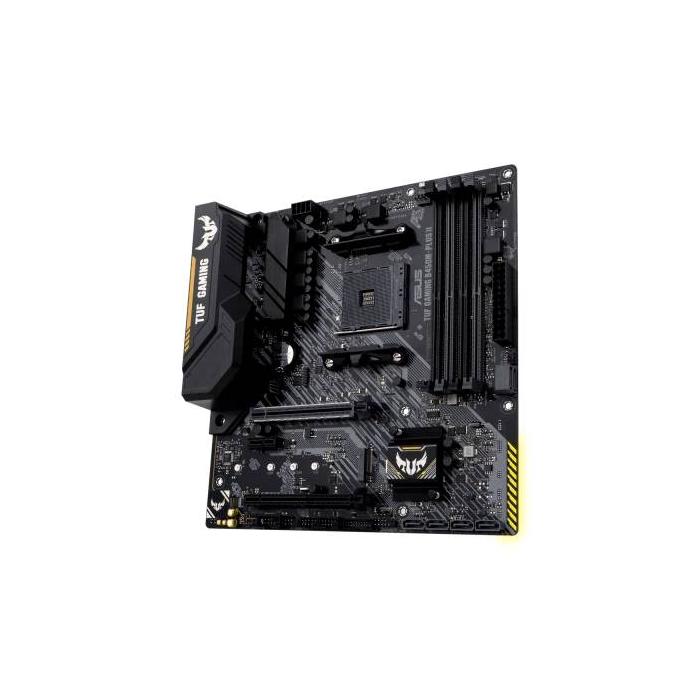

Name: ASUS TUF Gaming B450M-Plus II AMD B450 Socket AM4 micro ATX
Brand: ASUS
Price: 110.45 USD
Availability: InStock

ASUS TUF Gaming B450M-Plus II AMD B450 Socket AM4 micro ATX

$110.45

$110.45 without VAT

Amount

Brand: ASUS

SKU: 86212 PRC: 302058 EAN: 4718017927185 PN: 90MB1620-M0EAY0

Description

ASUS TUF Gaming B450M-Plus II, AMD, Socket AM4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen..., DDR4-SDRAM, 128 GB, DIMM

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series, AMD Ryzen

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 3000, 3200, 3400, 3466, 3533, 3600, 3733, 3866, 4000, 4400 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA, SATA II, SATA III
Number of storage drives supported: 7
RAID levels: 0, 1, 10

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 6
S/PDIF out connector: Yes
Audio connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
DVI-D ports quantity: 1
Headphone outputs: 1
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: AMD B450
Audio chip: Realtek ALC887
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots: 1
PCI Express x16 (Gen 2.x) slots: 3

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.1

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 259 mm

Packaging content

Cables included: SATA
Bundled software: Armoury Crate, Aura Creator, Aura Sync, AI Noise-Canceling Microphone, AI Suite 3, Performance And Power Saving Utility, TurboV
