ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Socket AM4 micro ATX

$116.17

$116.17 without VAT

ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Socket AM4 micro ATX. More info

Amount

Brand: ASUS

SKU: 116628 PRC: 321574 EAN: 4711081154273 PN: 90MB17F0-M0EAY0

Description

microATX, AMD A520 chipset, Socket AM4, 4xDDR4 DIMM slots, 7.1ch audio, Gigabit LAN, Wi-Fi, Bluetooth

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466, 4600, 4800 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Number of storage drives supported: 5
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 3840 x 2160 pixels

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

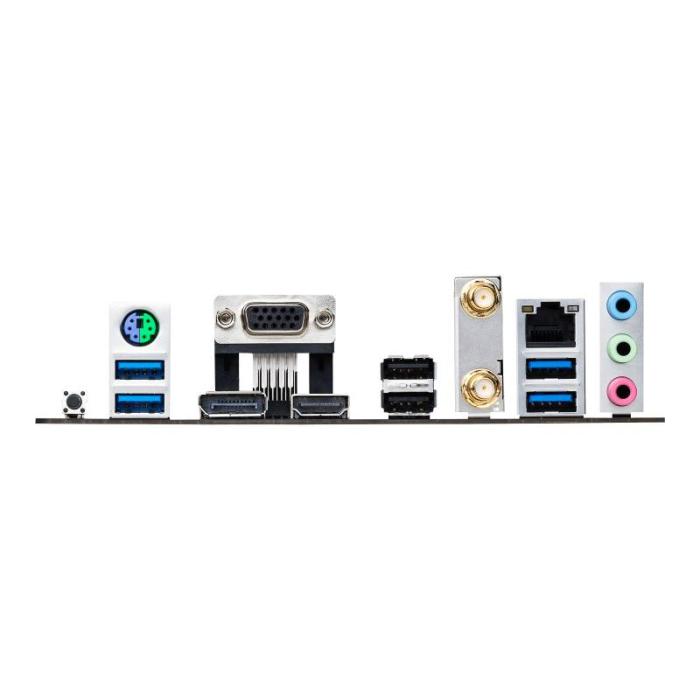

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Headphone outputs: 3
Microphone in: Yes
WiFi-AP antenna jack: 1
USB connector type: USB Type-A

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wake-on-LAN ready: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model: Realtek RTL8821CE
Bluetooth: Yes
Bluetooth version: 5.0

Features

Motherboard chipset: AMD A520
Audio chip: Realtek ALC887 / Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 67 mm

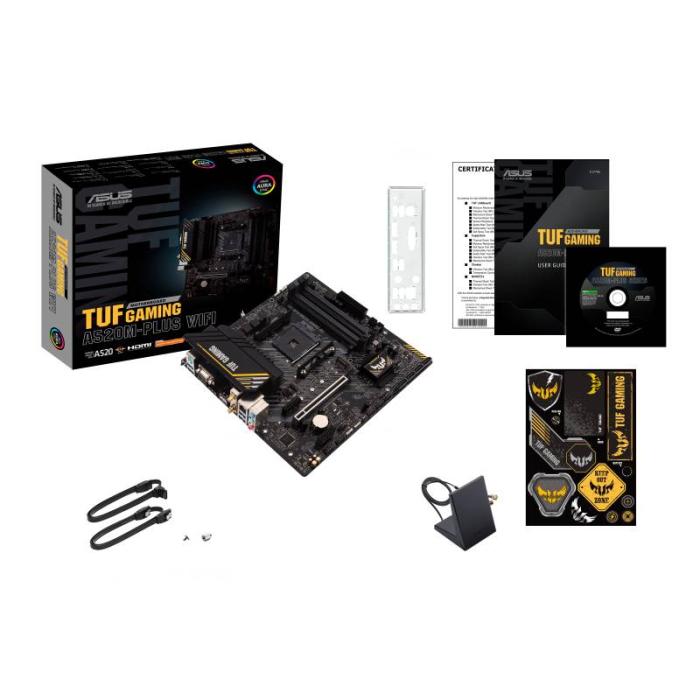

Packaging content

Cables included: SATA
Drivers included: Yes

Other features

Weight: 900 g
