Description

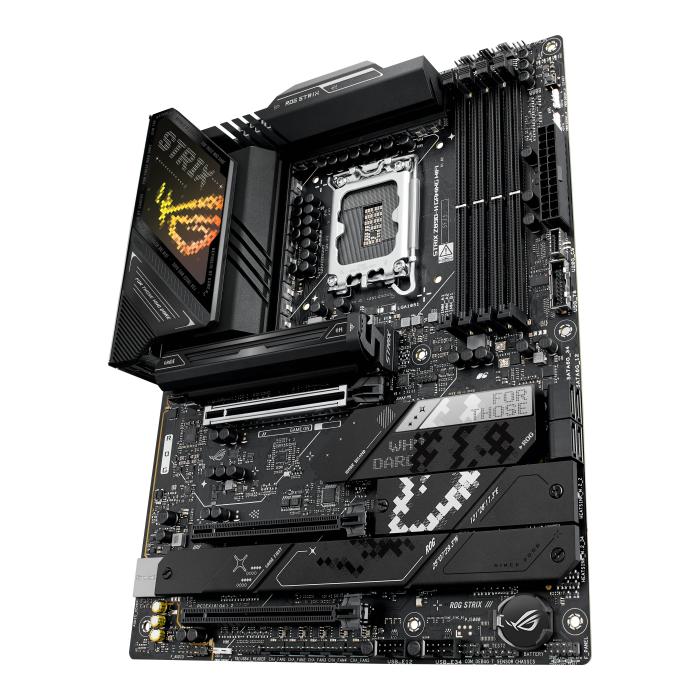

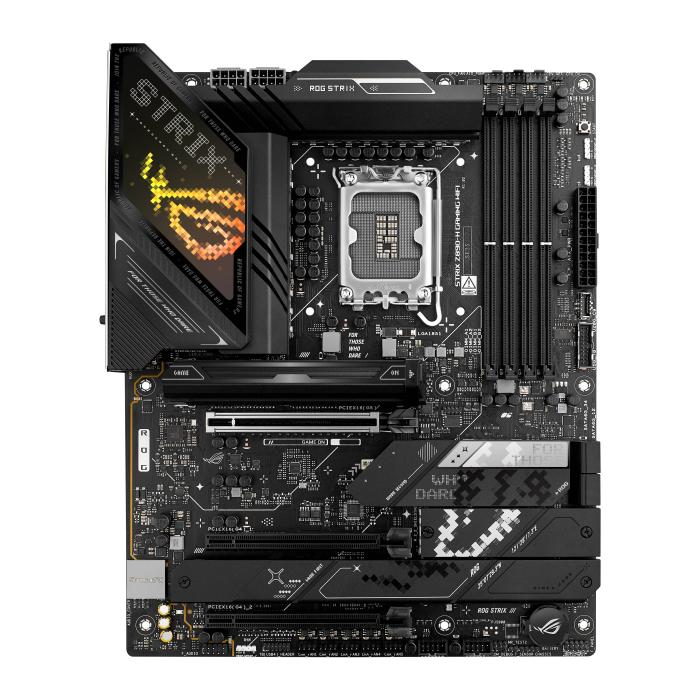

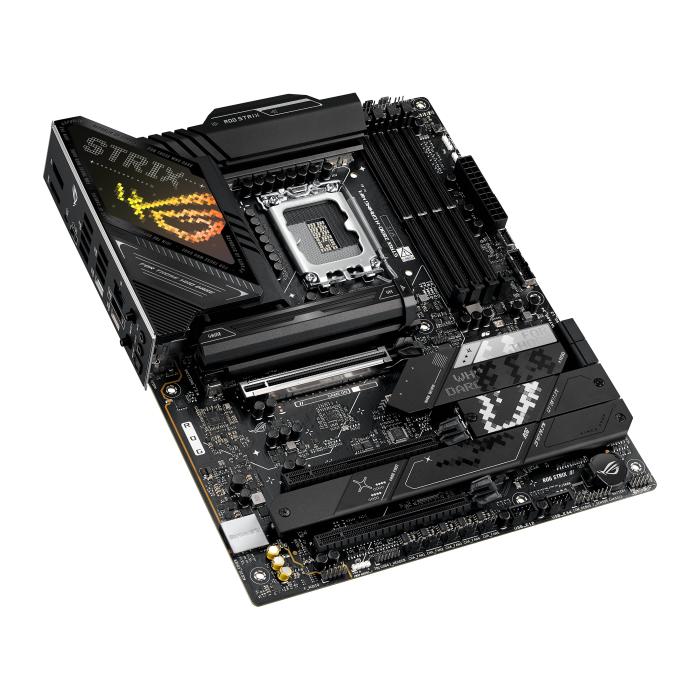

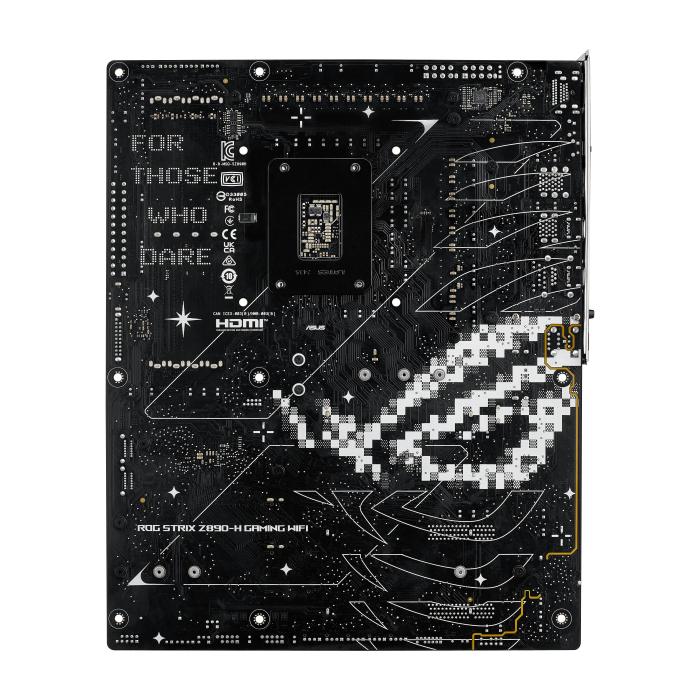

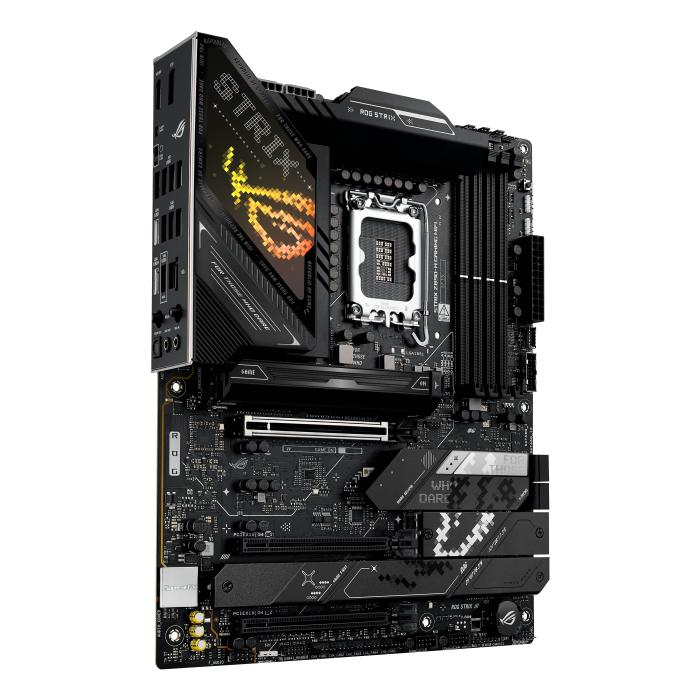

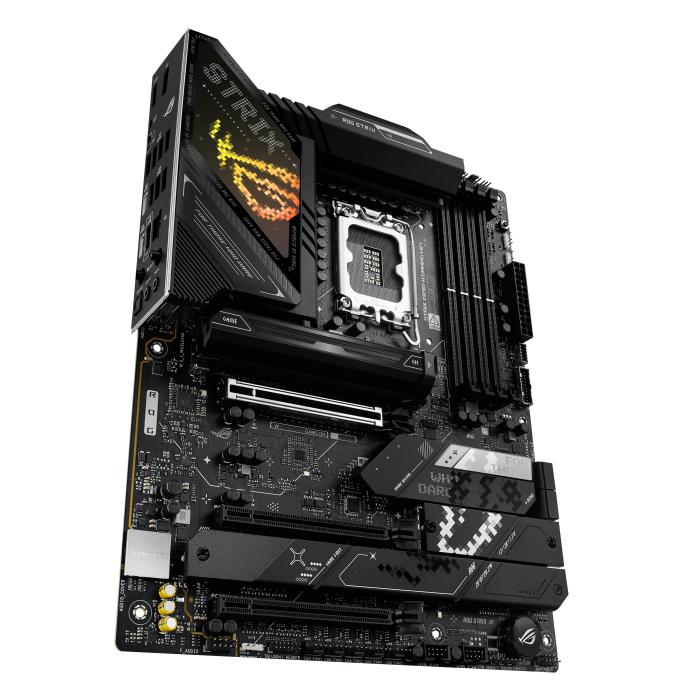

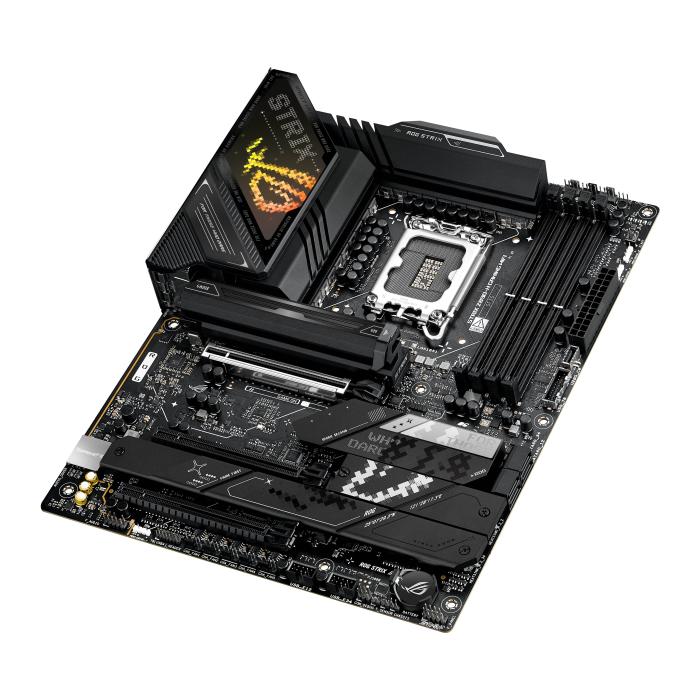

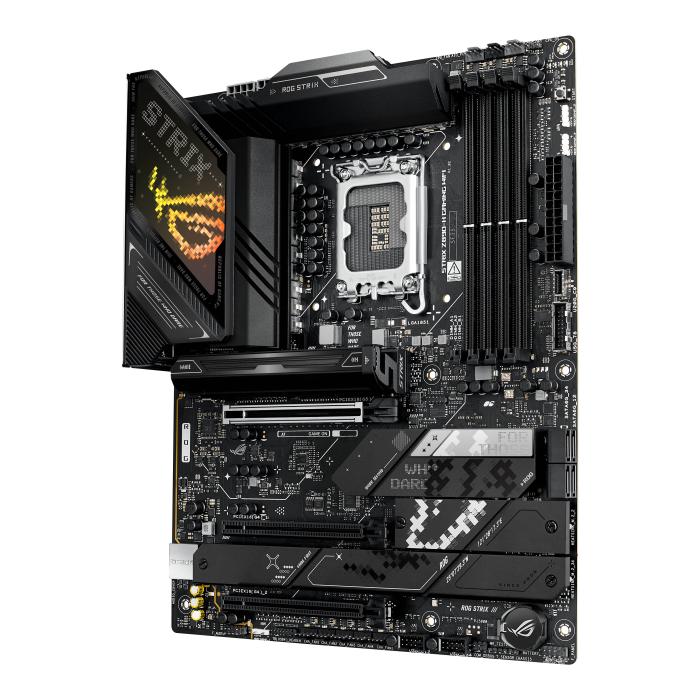

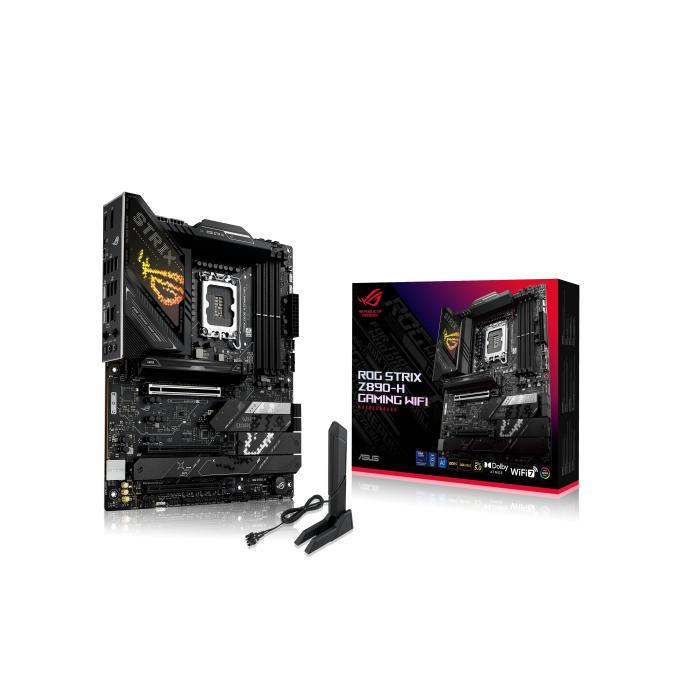

The ASUS ROG STRIX Z890-H GAMING WIFI motherboard is an ATX board with LGA 1851 socket (Socket V1) for Intel Core Ultra series 2 processors. It features four unbuffered DDR5-SDRAM DIMM slots, with dual channel support and up to 256 GB of memory, plus non-ECC ECC compatibility. For storage it supports HDD and SSD drives with M.2 and SATA III interfaces, totals eight compatible drives and allows RAID configuration at levels 0, 1, 5 and 10. All of this combines in an ATX form factor that fits standard desktop cases. An option for building a system with a latest-generation Intel platform and flexible storage.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Compatible processor series: Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 8
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 5
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 2
- Thunderbolt headers: 1
- 12V power connector: Yes
- Number of temperature sensor headers: 1

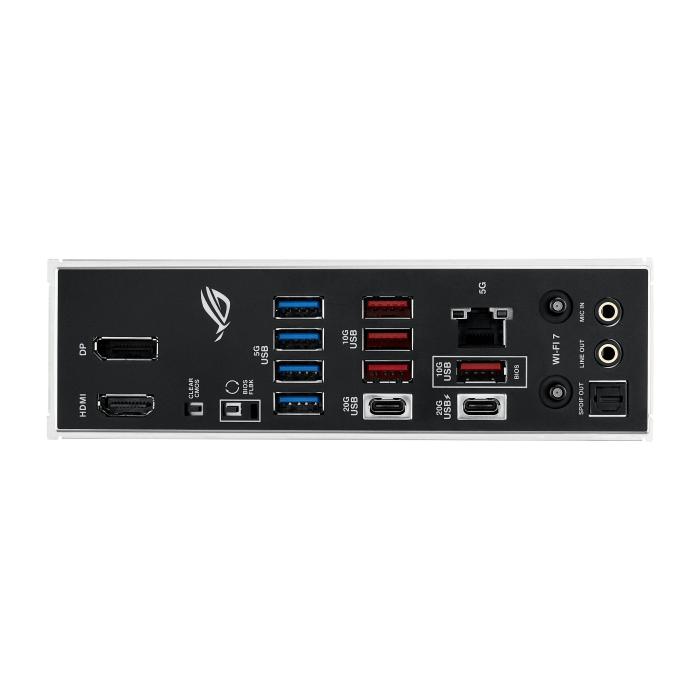

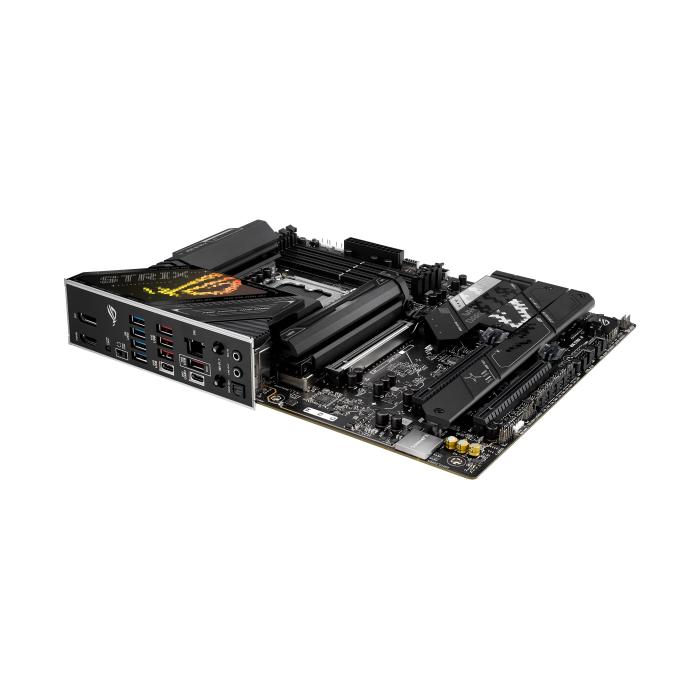

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
- USB 3.2 Gen 2x2 Type-C ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- S/PDIF out port: Yes
- WiFi-AP antenna jack: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: Intel Z890
- Audio chip: Realtek ALC1220P
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 4
- 1st M.2 largest key size: 22110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2580
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
- 4th M.2 largest key size: 2280
- 4th M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Packaging data
- Package width: 353 mm
- Package depth: 273 mm
- Package height: 68 mm
- Package weight: 2.52 kg
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm

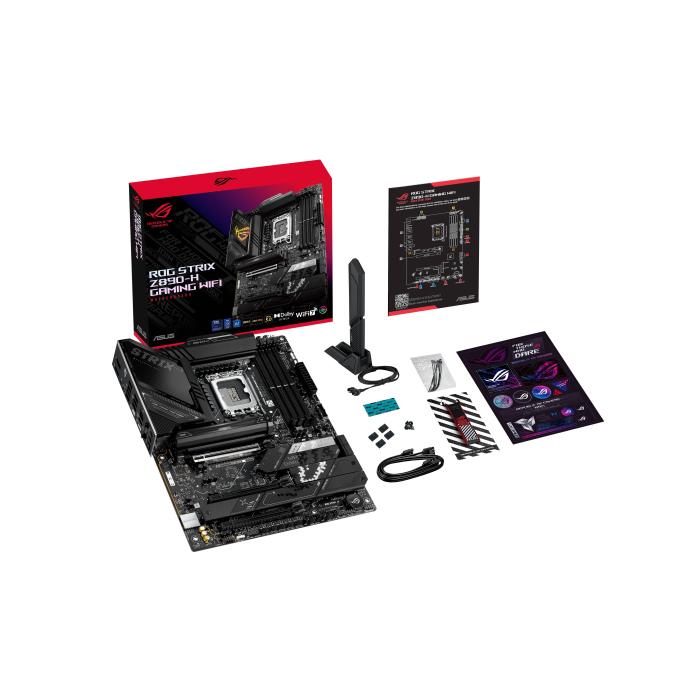

Packaging content
- Cables included: SATA
- Antenna included: Yes
