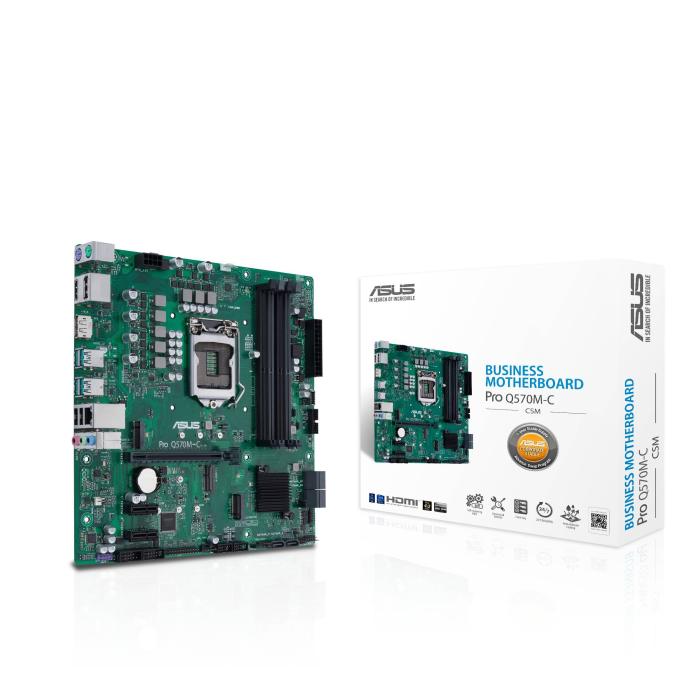

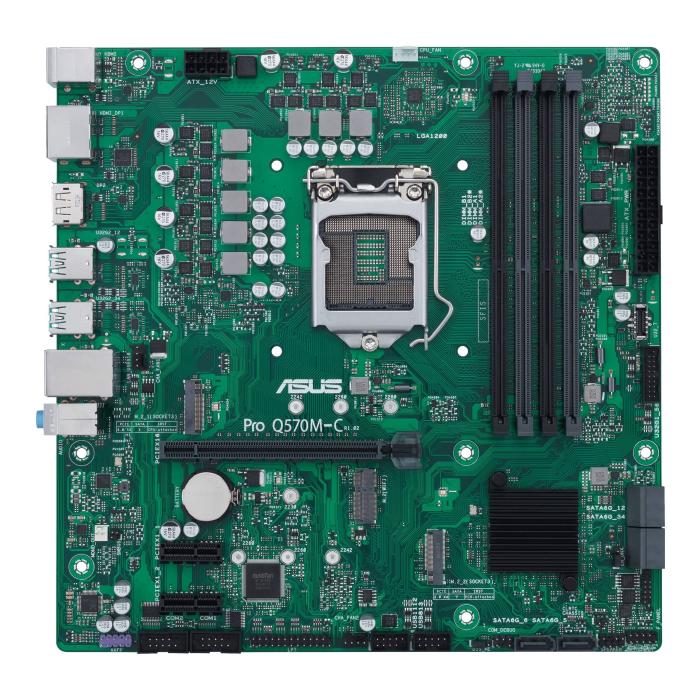

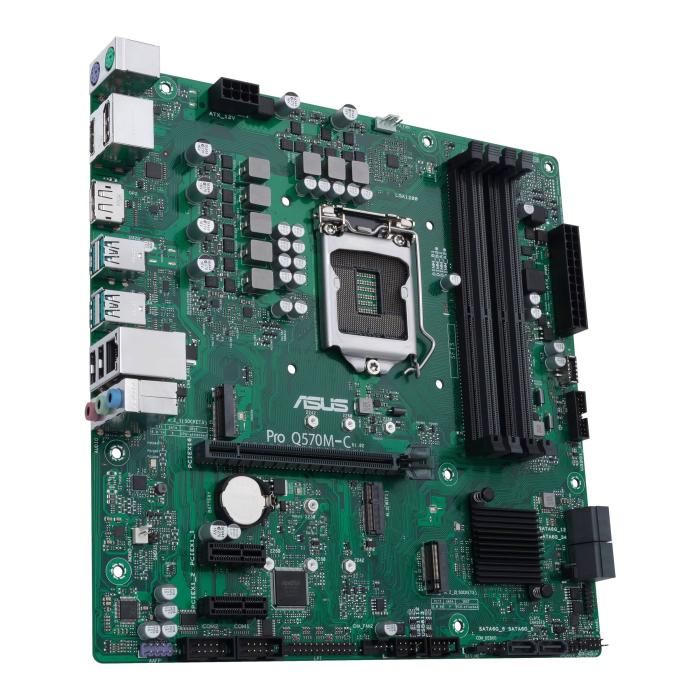

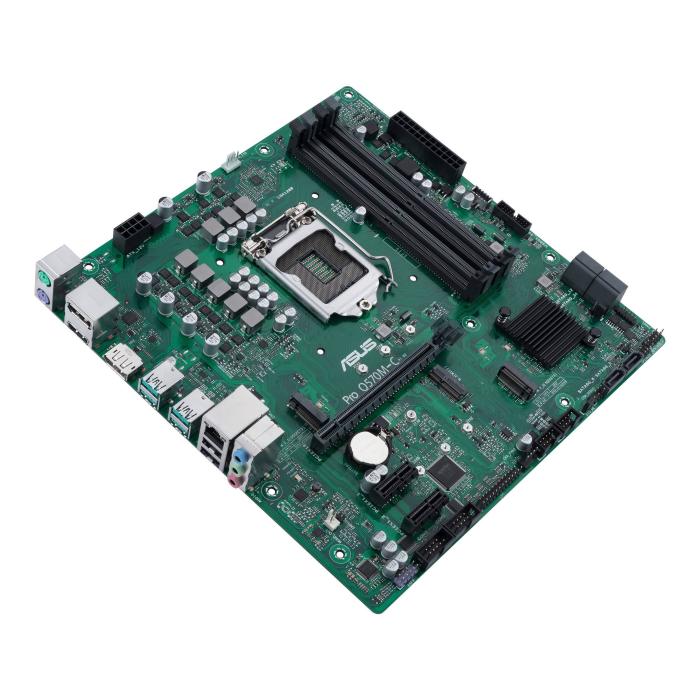

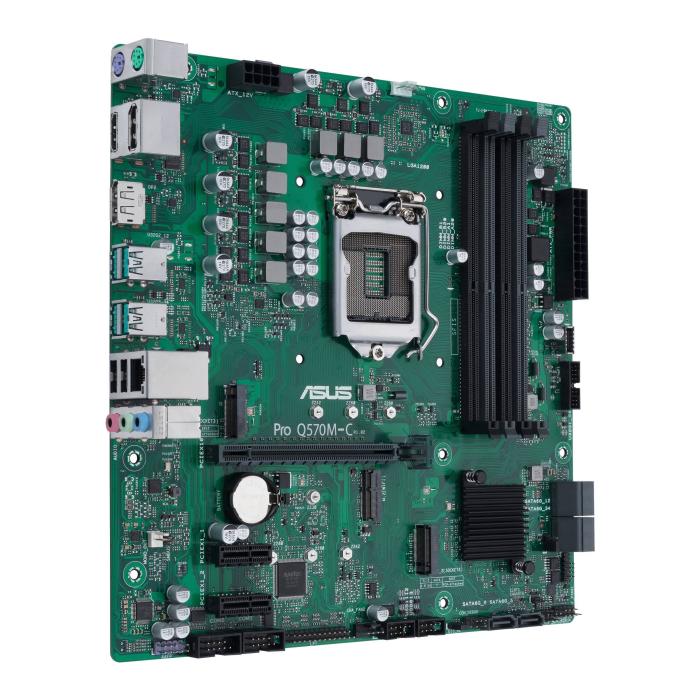

Name: ASUS PRO Q570M-C/CSM Intel Q570 LGA 1200 (Socket H5) micro ATX
Brand: ASUS
Availability: OutOfStock

ASUS PRO Q570M-C/CSM Intel Q570 LGA 1200 (Socket H5) micro ATX

Not avaliable

ASUS PRO Q570M-C/CSM Intel Q570 LGA 1200 (Socket H5) micro ATX. More info

Amount

Brand: ASUS

SKU: 92733 PRC: 366412 EAN: 4711081165248 PN: 90MB1700-M0EAYC

Description

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors: 1

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3200 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 6
Audio connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 2

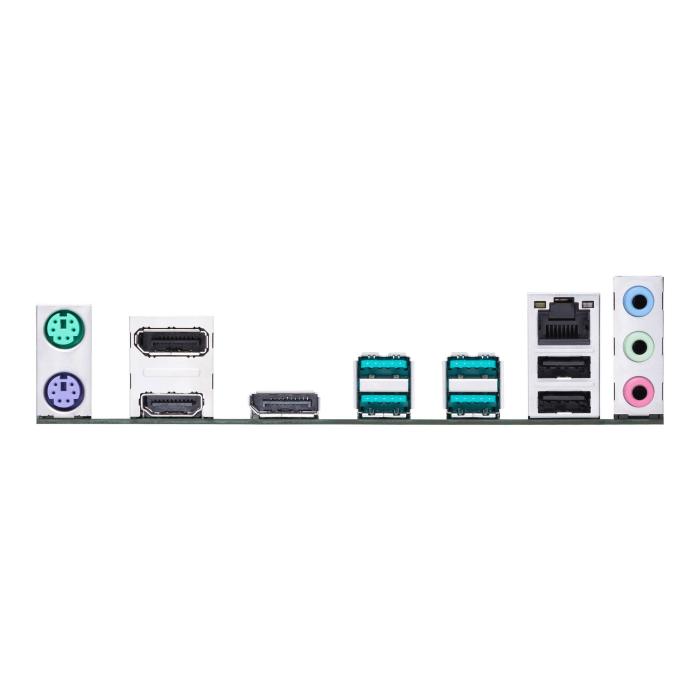

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
HDMI ports quantity: 1
HDMI version: 1.4/2.0
DisplayPorts quantity: 2
DisplayPort version: 1.4

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel® I219-V
Wake-on-LAN ready: Yes
Wi-Fi: No

Features

Motherboard chipset: Intel Q570
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 slots: 1
Number of M.2 (M) slots: 2

BIOS

BIOS memory size: 192 Mbit
Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 51 mm

Packaging content

Cables included: SATA

Other features

Weight: 634 g
