ASUS PRIME H510M-K R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX

Name: ASUS PRIME H510M-K R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
Brand: ASUS
Price: 63.8 USD
Availability: InStock

$63.80

$63.80 without VAT

ASUS PRIME H510M-K R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX. More info

Amount

Brand: ASUS

SKU: 100379 PRC: 439507 EAN: 4711387113189 PN: 90MB1E80-M0EAY0

Description

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz
Maximum internal memory: 64 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 5

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
TPM connector: Yes
12V power connector: Yes

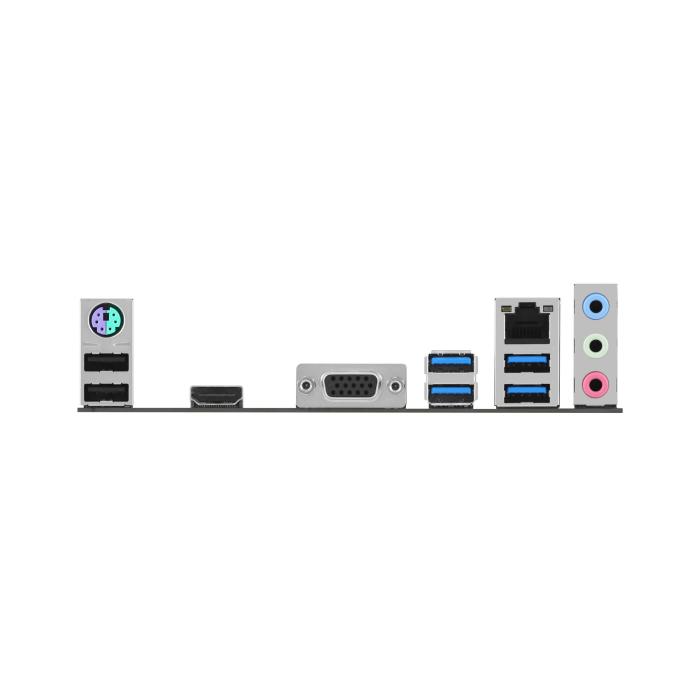

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
COM ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Wi-Fi: No

Features

Windows operating systems supported: Windows 10 x64
Motherboard chipset: Intel H510
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1

BIOS

BIOS type: EFI AMI
BIOS memory size: 128 Mbit

Weight & dimensions

Width: 226 mm
Depth: 203 mm
