Description

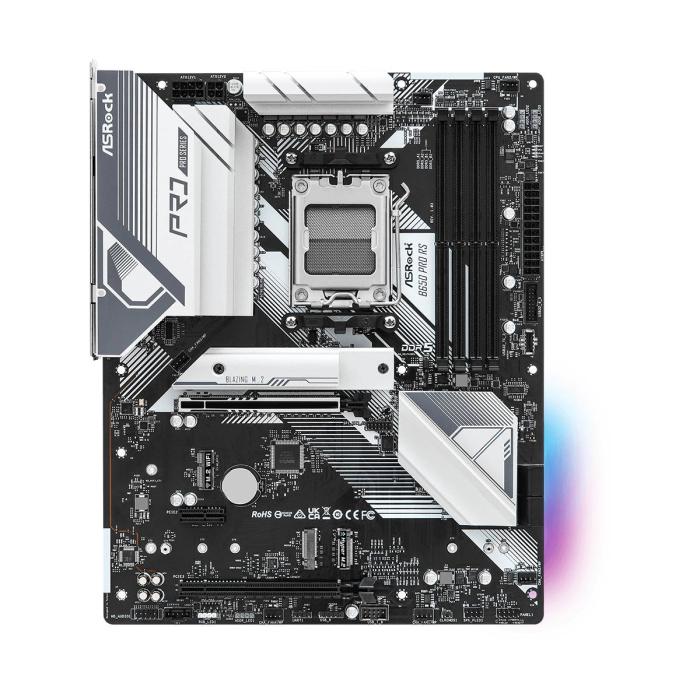

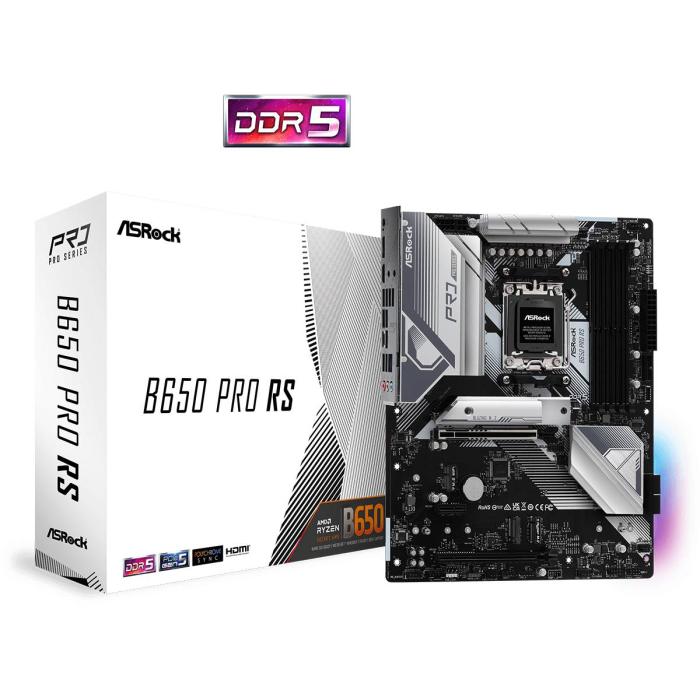

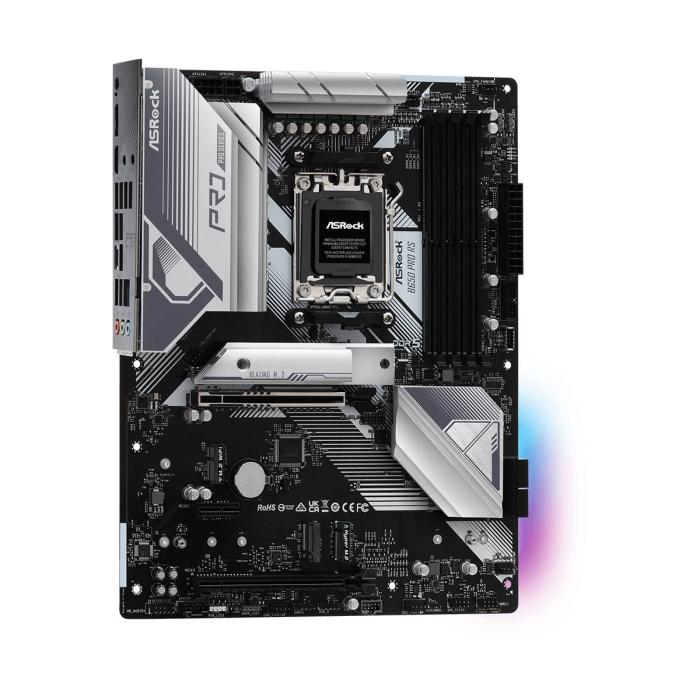

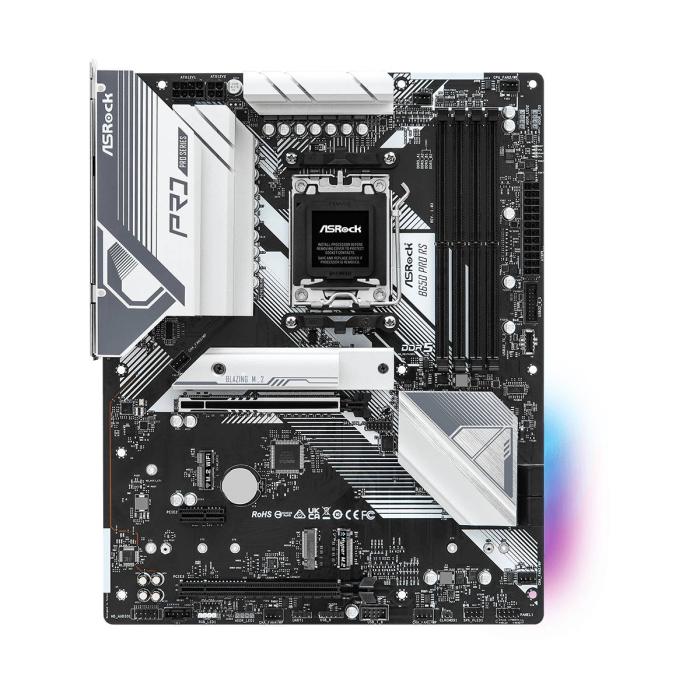

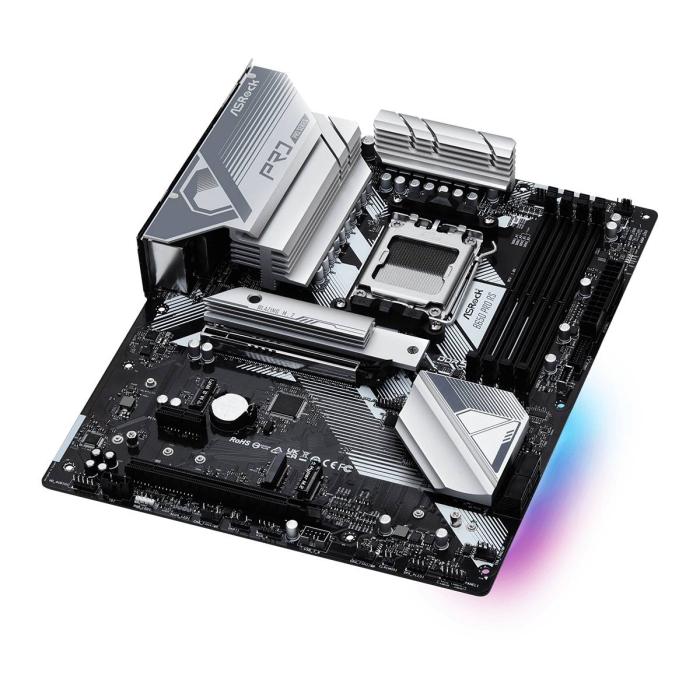

ASRock B650 Pro RS motherboard in ATX form factor and AM5 socket, ready for AMD Ryzen 7000 Series processors in a single-socket configuration. This board supports up to 128 GB of DDR5-SDRAM across four dual-channel DIMM slots, with clock speeds of up to 7200 MHz and compatibility with both ECC and non-ECC, unbuffered modules. For storage, it features M.2 and SATA III interfaces, with support for HDDs and SSDs, and supports RAID levels 0, 1 and 10. It includes two SATA III connectors and one RGB LED strip connector, allowing you to manage your system's lighting.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- Maximum number of SMP processors: 1
Memory
- Supported memory clock speeds: 7200 MHz
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 10
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- TPM connector: Yes
- Thunderbolt headers: 1
- RGB LED pin header: Yes

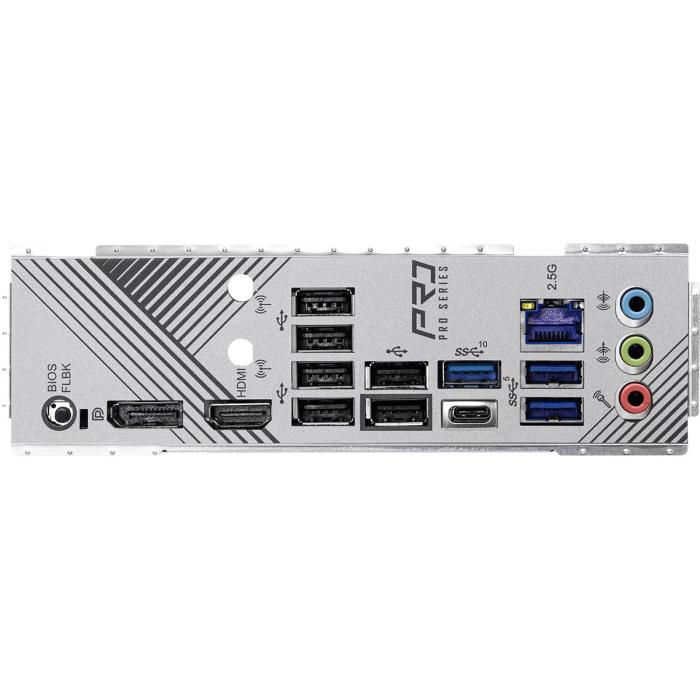

Rear panel I/O ports
- USB 2.0 ports quantity: 6
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- Wi-Fi: No
Features
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10 Pro x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
