Description

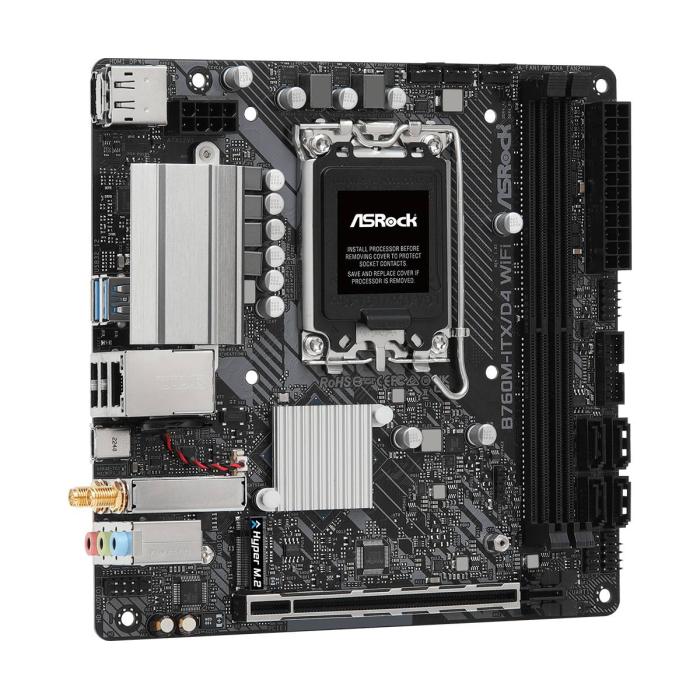

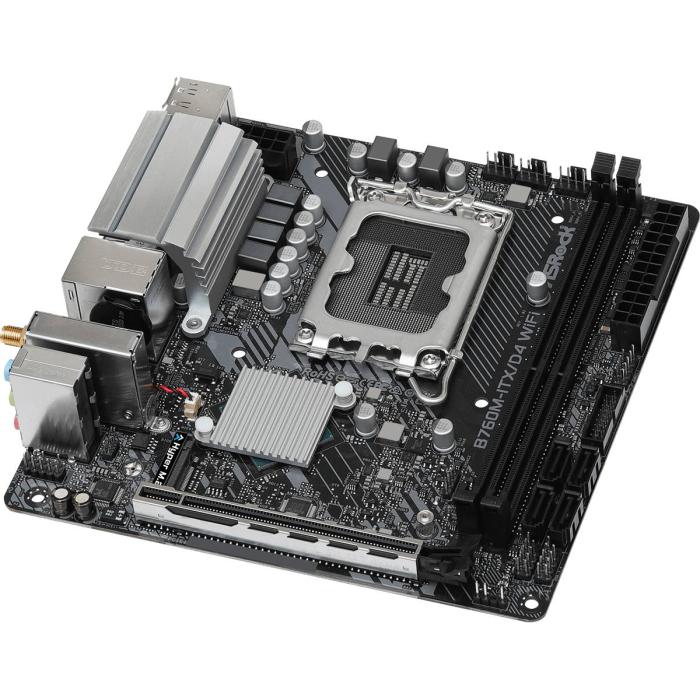

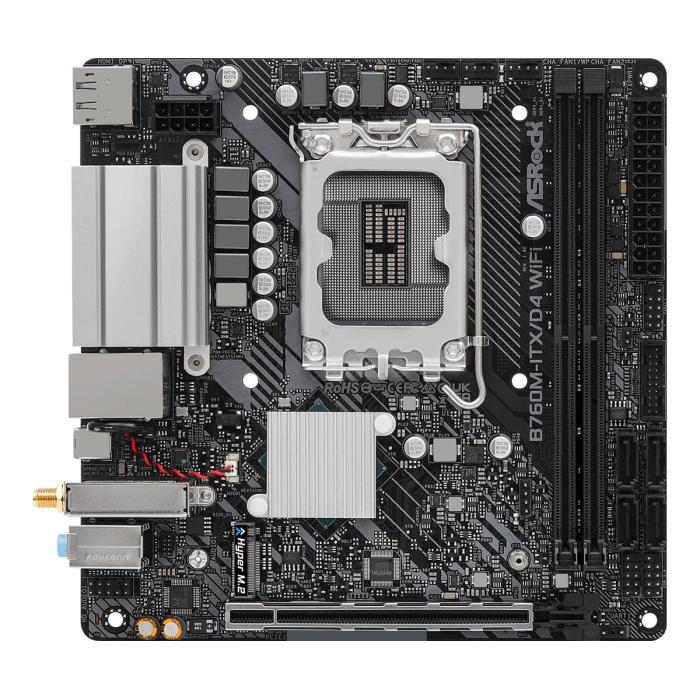

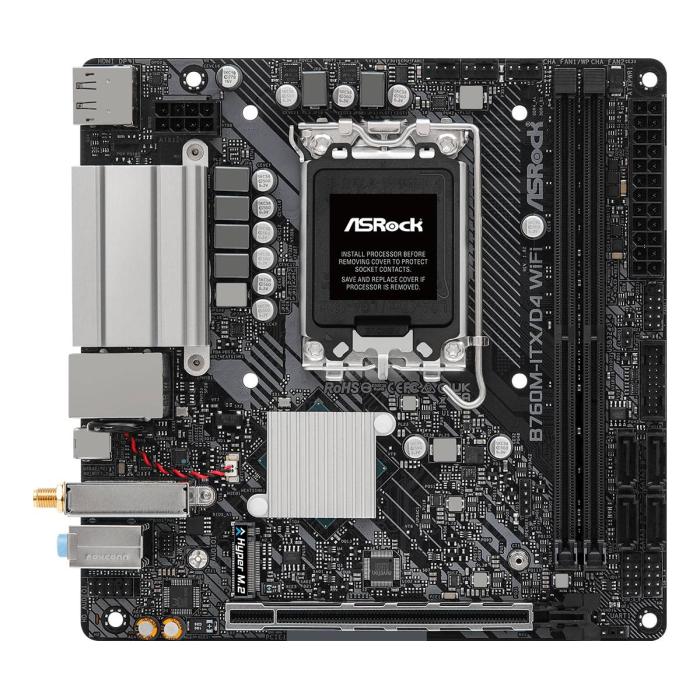

The ASROCK B760M-ITX/D4 WiFi motherboard, in mini ITX format, integrates Intel's LGA 1700 socket and supports Core i3, i5, i7 and i9 processors. It features two DIMM slots for up to 64 GB of DDR4 memory in dual channel, along with four SATA III connectors and one M.2 interface for HDD or SSD storage, including RAID support at levels 0, 1, 5 and 10. It incorporates internal connectors for front audio, a 24-pin ATX power connector and an 8-pin EPS connector, as well as two internal USB 2.0 ports to expand connection options.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- Maximum internal memory: 64 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Features
- Motherboard chipset: Intel B760
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: mini ITX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
Weight & dimensions
- Width: 170 mm
- Depth: 170 mm
