Description

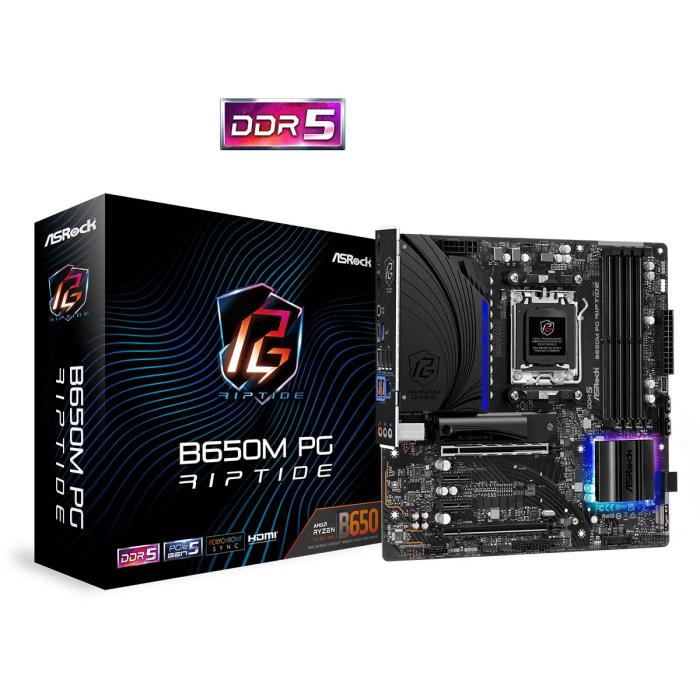

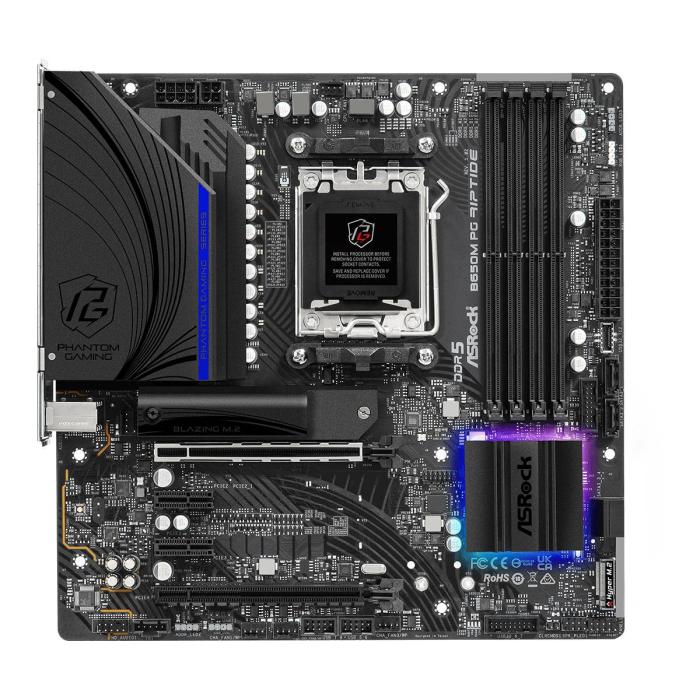

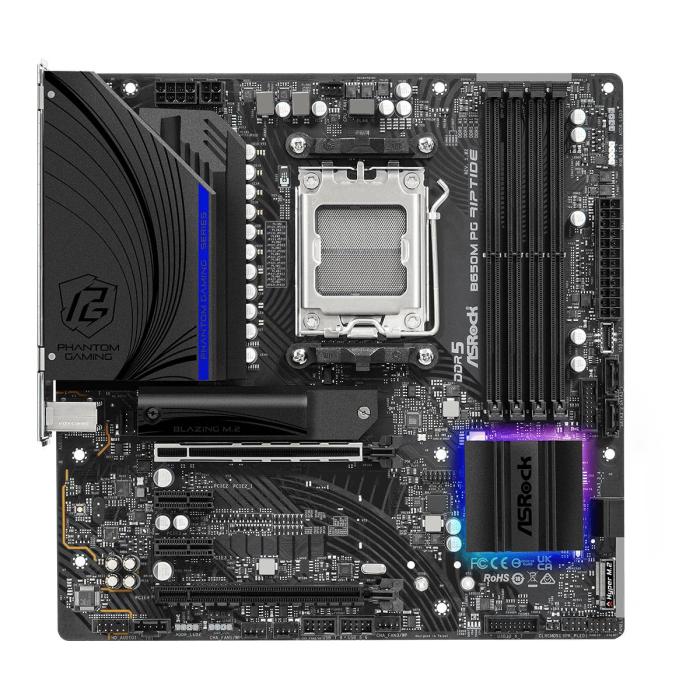

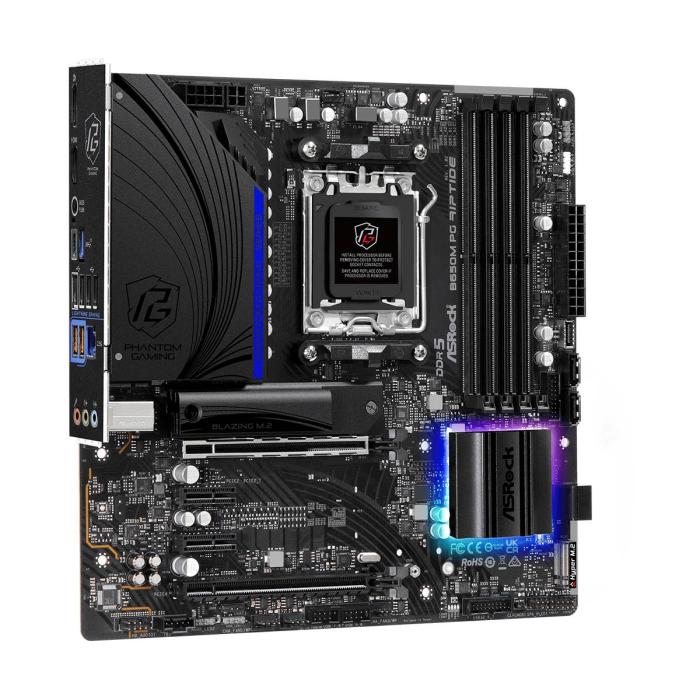

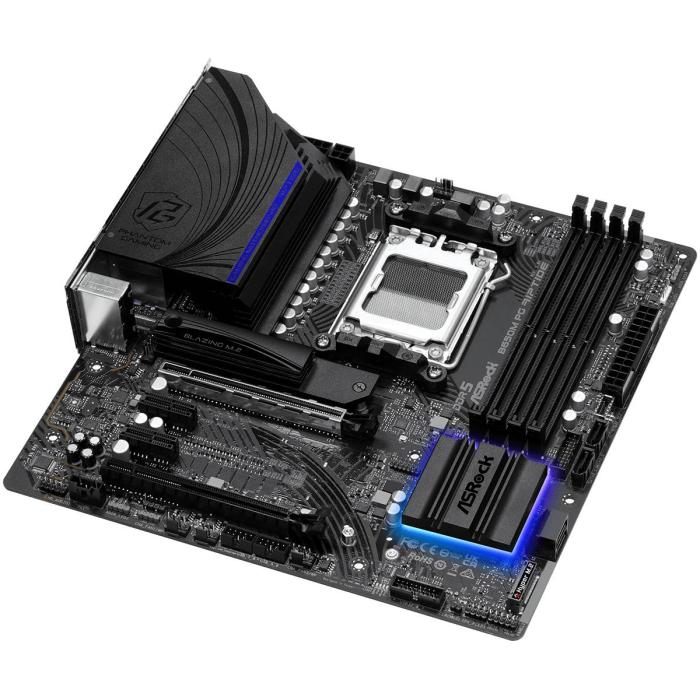

ASROCK B650M PG Riptide motherboard in micro ATX form factor for the AMD AM5 socket, ready for next-generation Ryzen processors. Its compact design integrates four DIMM slots supporting up to 128 GB of DDR5-SDRAM memory, with support for ECC and non-ECC modules in dual-channel configuration. Storage is expanded through M.2 and SATA III interfaces, with RAID 0, 1 and 10 compatibility to organise your drives. It includes integrated AMD graphics and USB 3.2 Gen 1 connectors, as well as audio output for the front panel, all designed to build a balanced system without complications.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- On-board graphics card: Yes
- Graphics card family: AMD
- HDCP: Yes
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- TPM connector: Yes
- RGB LED pin header: Yes

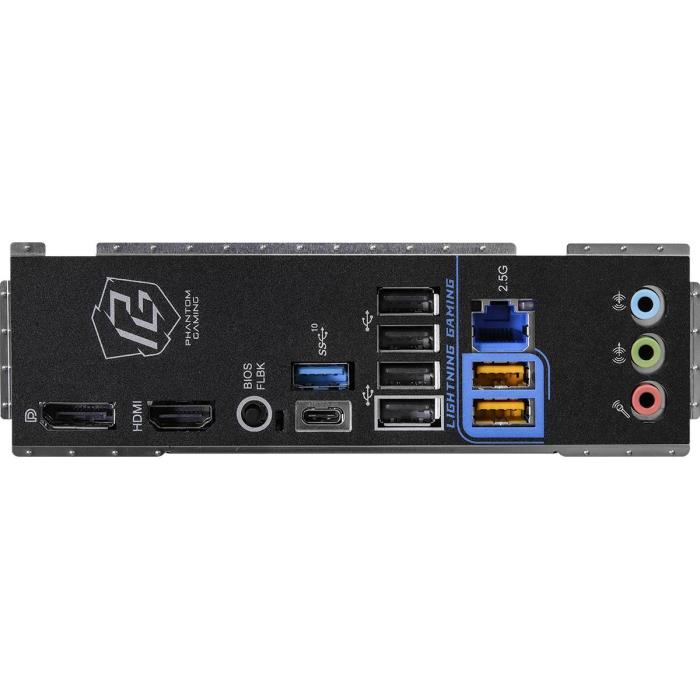

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- Wi-Fi: No
Features
- Motherboard chipset: AMD B650
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm
Packaging content
- Cables included: SATA
