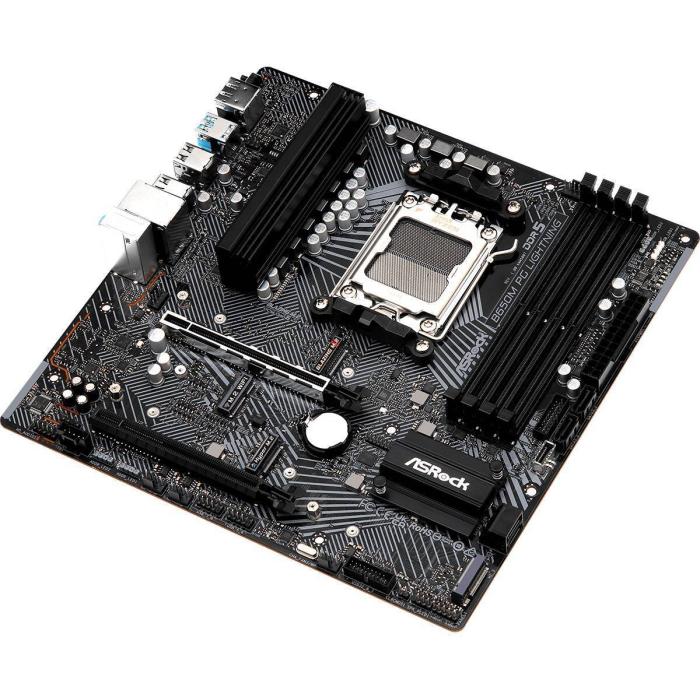

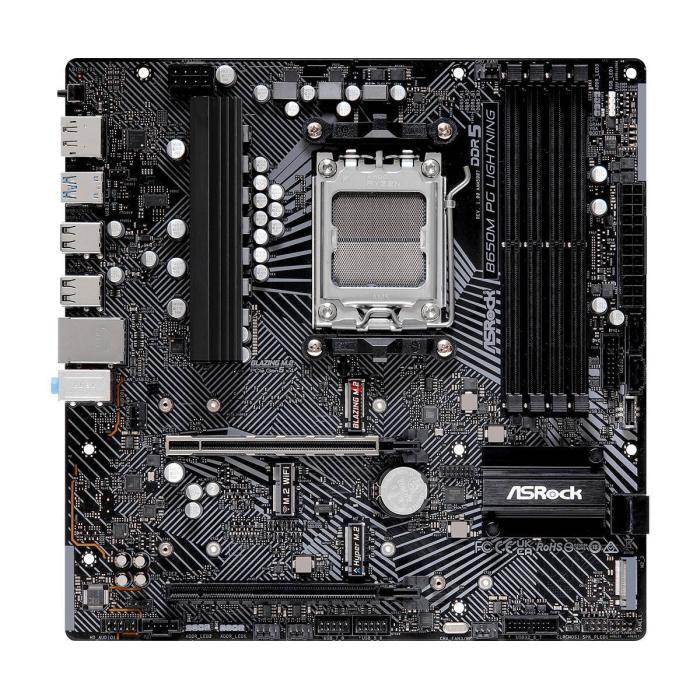

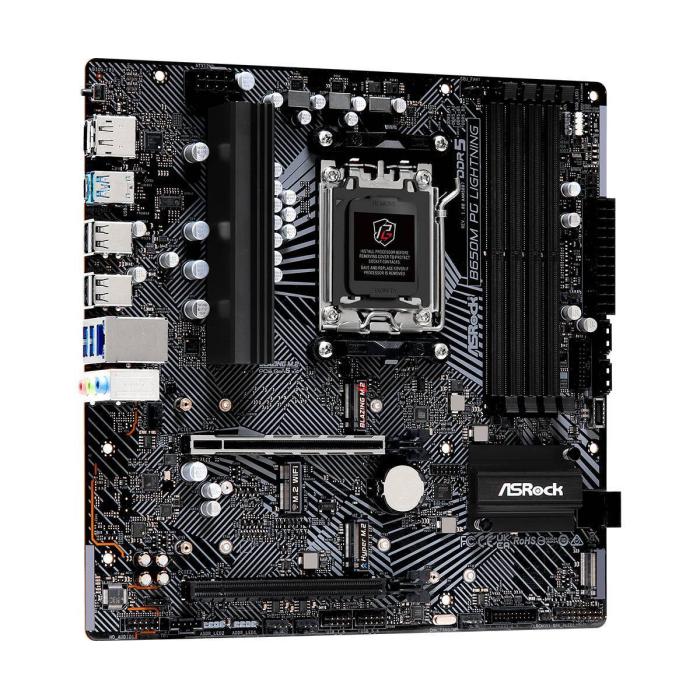

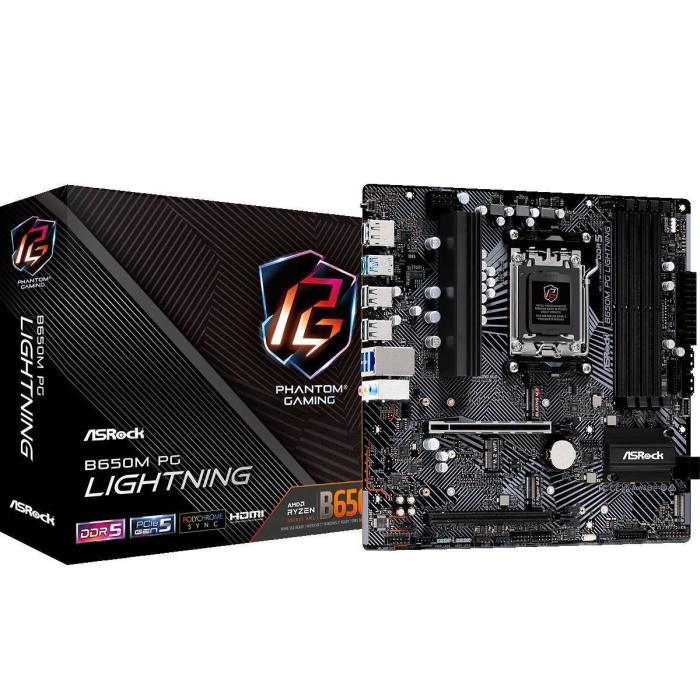

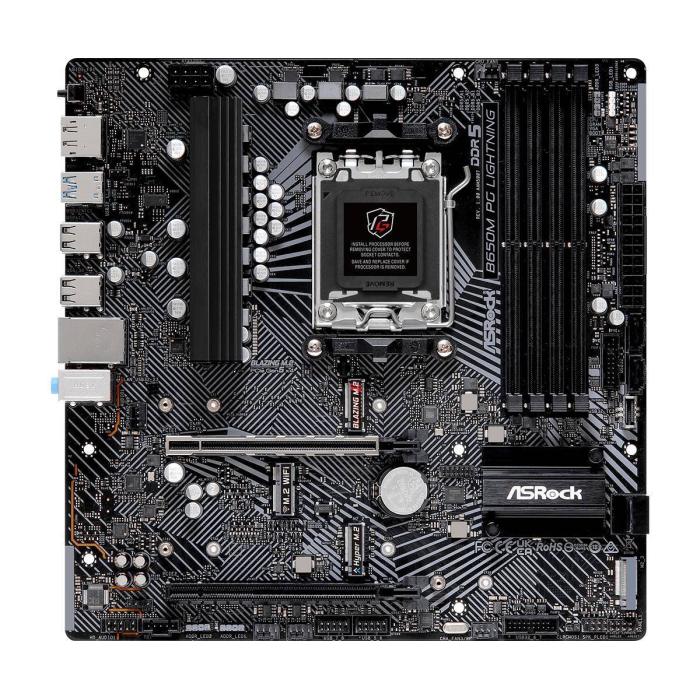

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX

Not avaliable

Amount

Brand: ASROCK

SKU: 107240 PRC: 536890 EAN: 4710483943829 PN: 90-mxbmv0-a0uayz

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
Supported memory clock speed (max): 7200 MHz
Maximum internal memory: 192 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported: 7
RAID support: Yes
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: CrossFire
Maximum resolution: 3840 x 2160 pixels
HDCP: Yes

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
Thunderbolt headers: 1
12V power connector: Yes
RGB LED pin header: Yes

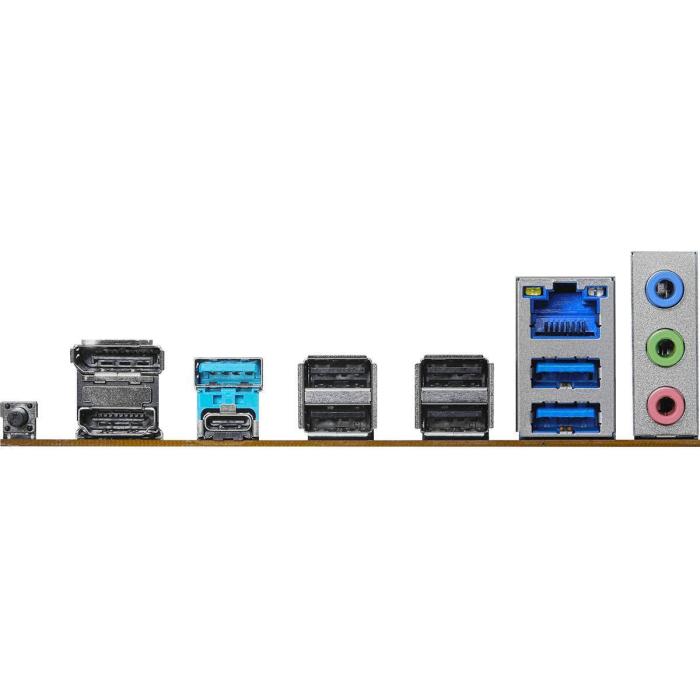

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 3
Microphone in: Yes
USB connector type: USB Type-A, USB Type-C

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Dragon RTL8125BG
Wi-Fi: No

Features

Motherboard chipset: AMD B650
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Certification: FCC, CE, ErP/EuP

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Weight & dimensions

Width: 244 mm
Depth: 244 mm

Packaging content

Cables included: SATA
Screws included: Yes
