Description

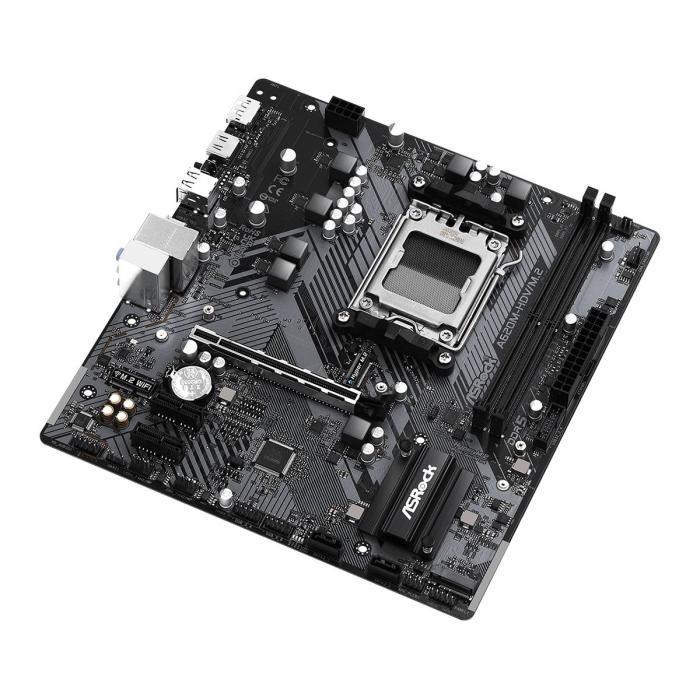

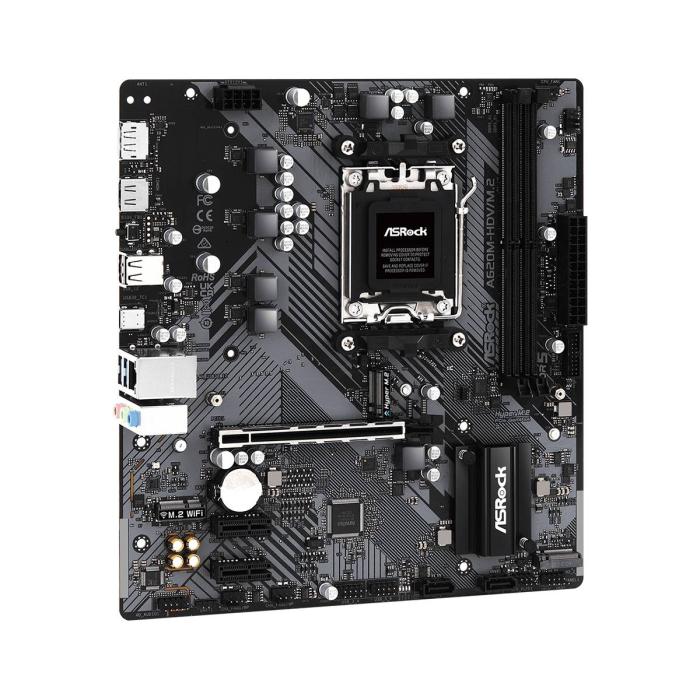

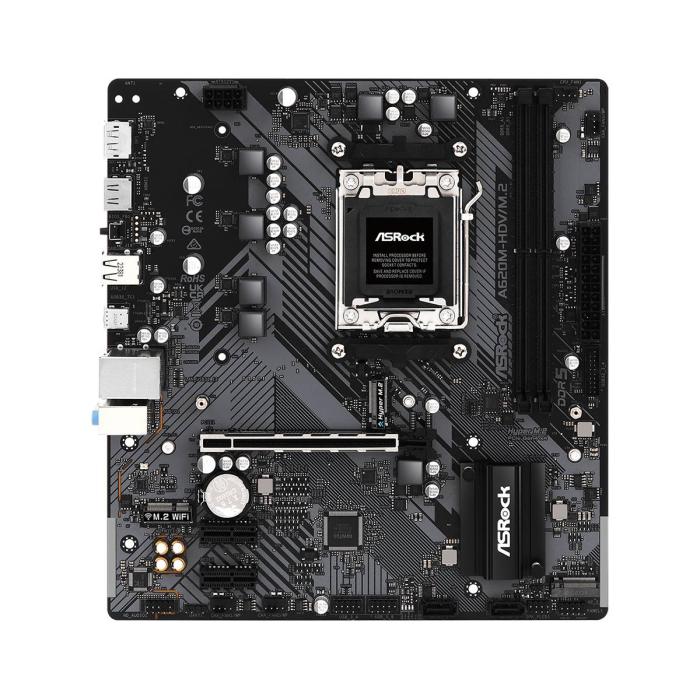

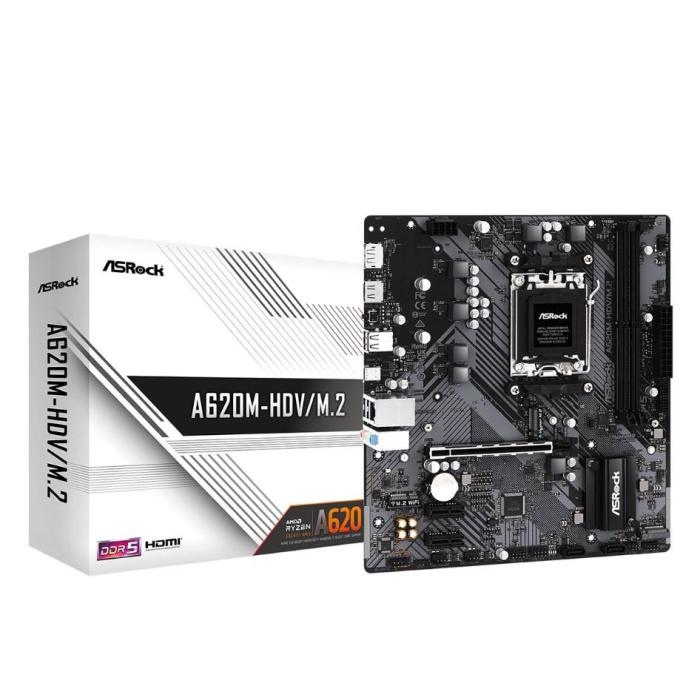

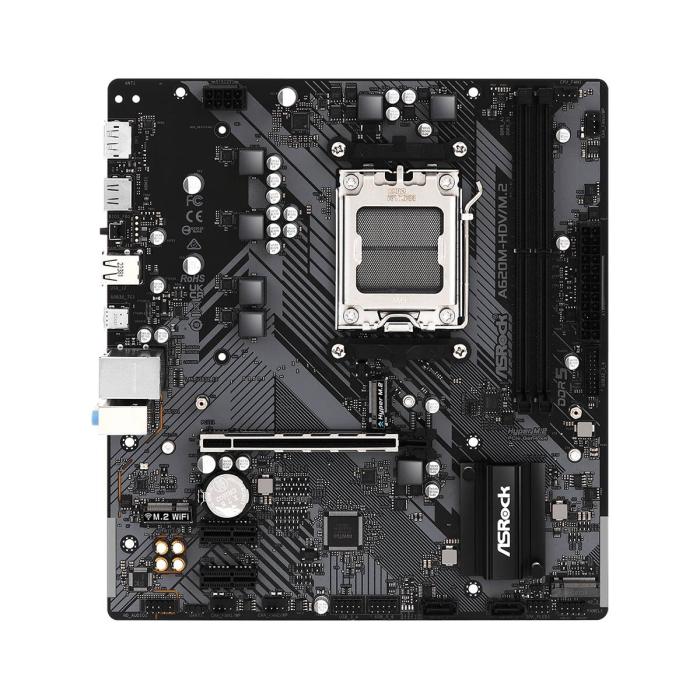

Asrock A620M-HDV/M.2 motherboard in micro ATX form factor for socket AM5, compatible with AMD Ryzen 7000 Series processors. It features two DIMM slots for dual-channel DDR5-SDRAM memory, without ECC support, and supports up to 96 GB of RAM. For storage, it includes M.2 and SATA III interfaces, with RAID support for levels 0, 1, and 10, and two SATA II connectors, along with two internal USB 2.0 headers and a front panel audio connector. This motherboard does not offer support for parallel processing, so it is aimed at standard configurations without advanced graphics computing needs.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Maximum internal memory: 96 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Number of SATA II connectors: 2
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes

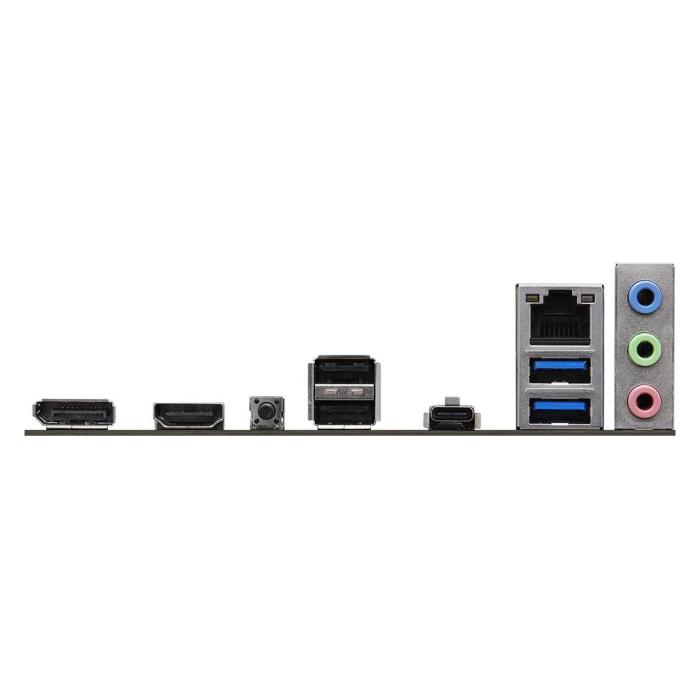

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: No
Features
- Motherboard chipset: AMD A620
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: EFI AMI
- BIOS memory size: 256 Mbit
Weight & dimensions
- Width: 244 mm
- Depth: 226 mm
