Aruba, a Hewlett Packard Enterprise company AP-ANT-19 Omni-directional antenna RP-SMA 6dBi network antenna
Aruba, a Hewlett Packard Enterprise company AP-ANT-19, 6 dBi, 2.4 - 2.5 / 5.1 - 5.875, IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, 3 dBi, 6 dBi, 50 Ω.
More infoBrand: ARUBA, A HEWLETT PACKARD ENTERPRISE COMPANY
162,00 €Stock available: 0 units.
Unavailable
SKU:
80134
PRC:
198504
EAN:
190017019048
PN:
AP-ANT-19
Description

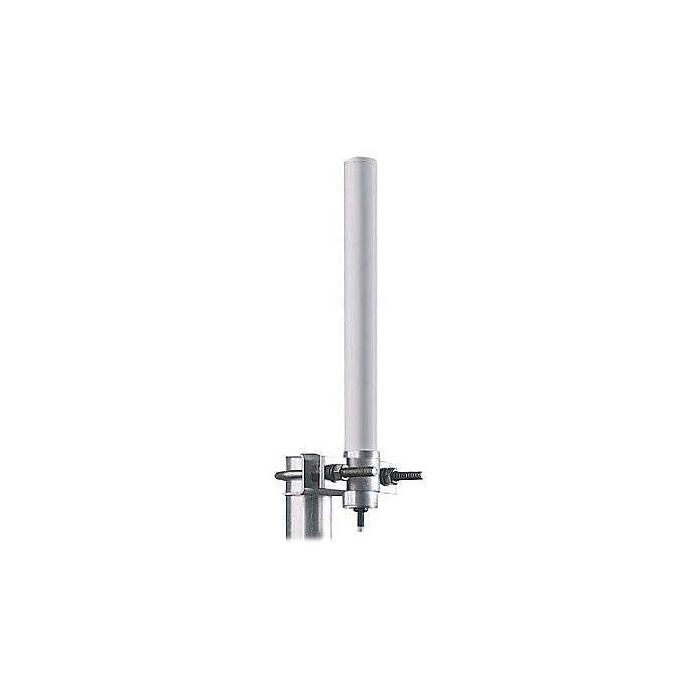

The Aruba AP-ANT-19 antenna, in white, is an omni-directional mast-mount antenna designed to deploy wifi coverage indoors and outdoors. It covers the 2.4 to 2.5 GHz and 5.1 to 5.875 GHz bands, with a gain of 3 dBi at 2.4 GHz and 6 dBi at 5 GHz, which boosts the signal on both 2.4 and 5 GHz networks. Its horizontal beamwidth is 360° on both bands, so it distributes coverage in all directions, while the vertical beamwidth is 50° at 2.4 GHz and 20° at 5 GHz. It is compatible with the IEEE 802.11a, IEEE 802.11b, IEEE 802.11g and IEEE 802.11n standards, and features vertical polarisation with an impedance of 50 Ω and a voltage standing wave ratio of 2.0:1. It incorporates an RP-SMA connector and a 0.914 m cable to facilitate installation, and its polycarbonate housing keeps the assembly lightweight, with a weight of 140 g.
Specifications
Performance
- Frequency band: 2.4 - 2.5 / 5.1 - 5.875
- Networking standards: IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
- Antenna gain (5 GHz): 6 dBi
- Antenna gain (2.4 GHz): 3 dBi
- Impedance: 50 Ω
- Vertical beam width (2.4 GHz): 50°
- Horizontal beam width (2.4 GHz): 360°
- Vertical beam width (5 GHz): 20°
- Horizontal beam width (5 GHz): 360°
- Antenna gain level (max): 6 dBi
Features
- Antenna type: Omni-directional antenna
- Antenna connector type: RP-SMA
- Polarization: Vertical polarization
- Voltage Standing Wave Ratio (VSWR): 2.0:1
- Mounting: Pole
- Cable length: 0.914 m
- Purpose: Indoor & outdoor
- Housing material: Polycarbonate
- Colour of product: White
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Weight & dimensions
- Height: 245 mm
- Weight: 140 g
Packaging content
- Quantity: 1
