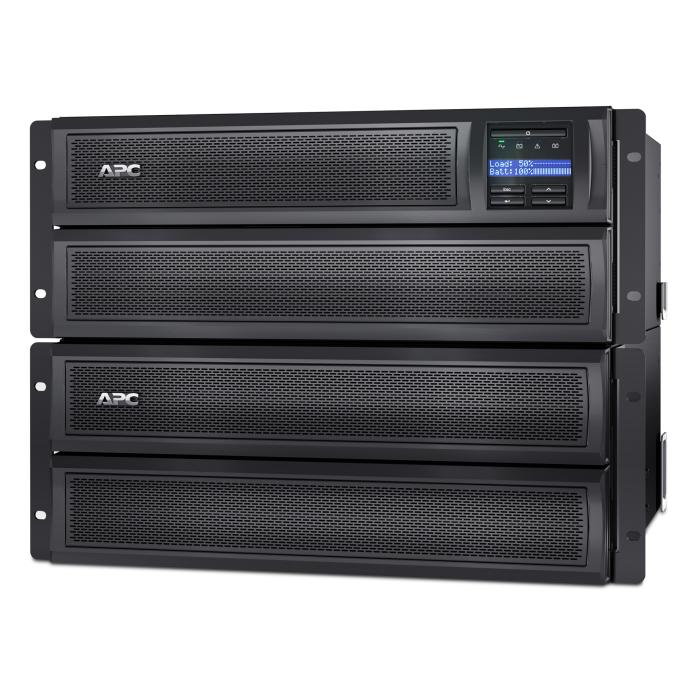

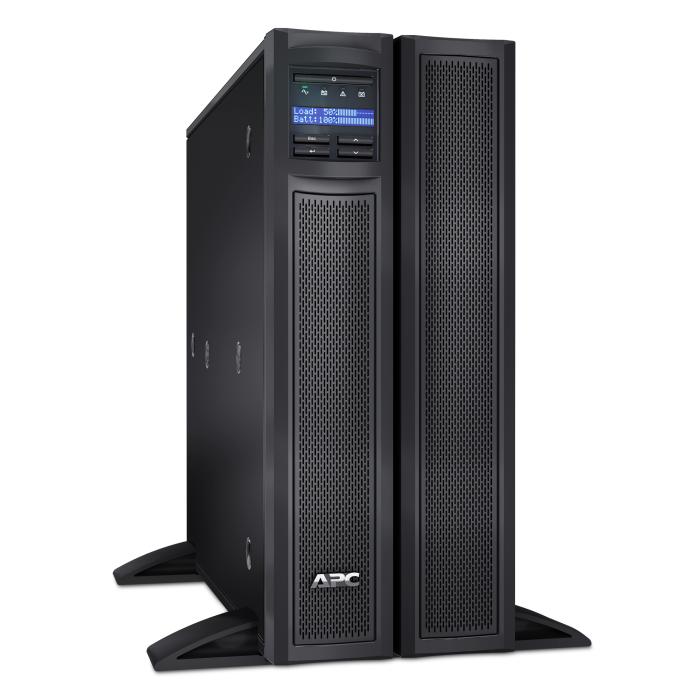

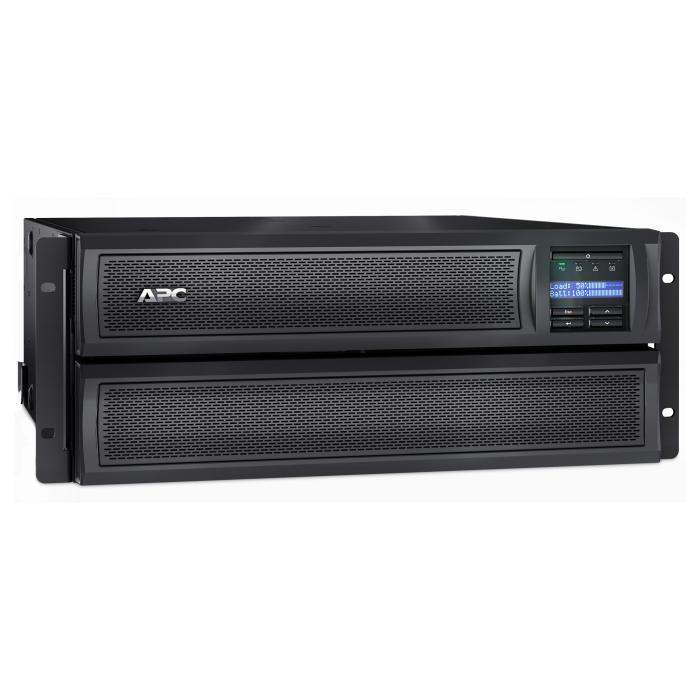

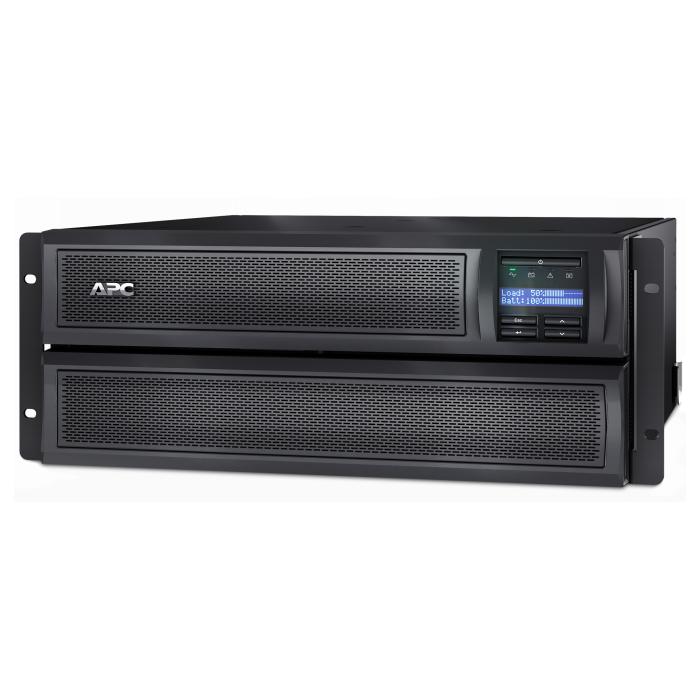

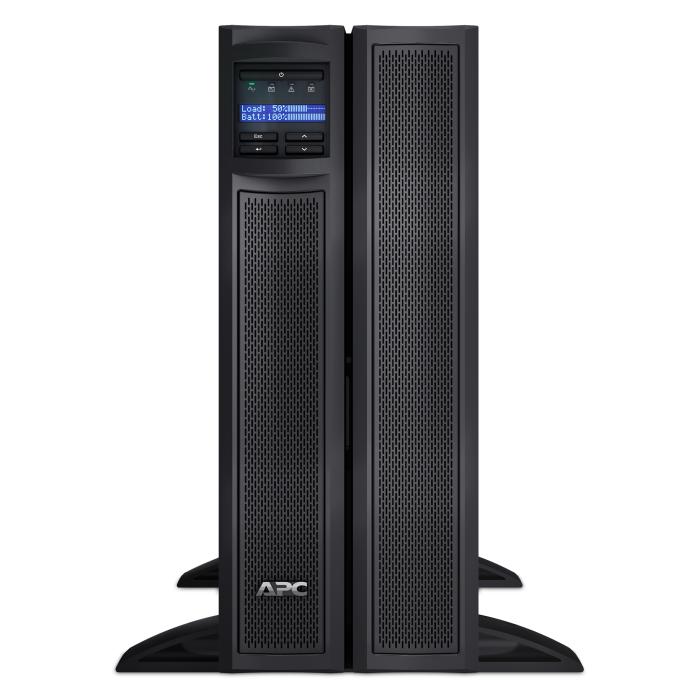

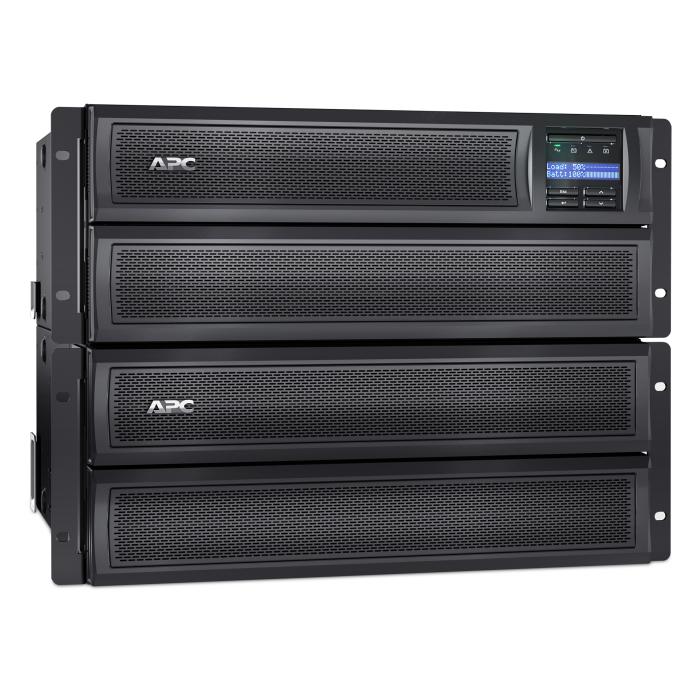

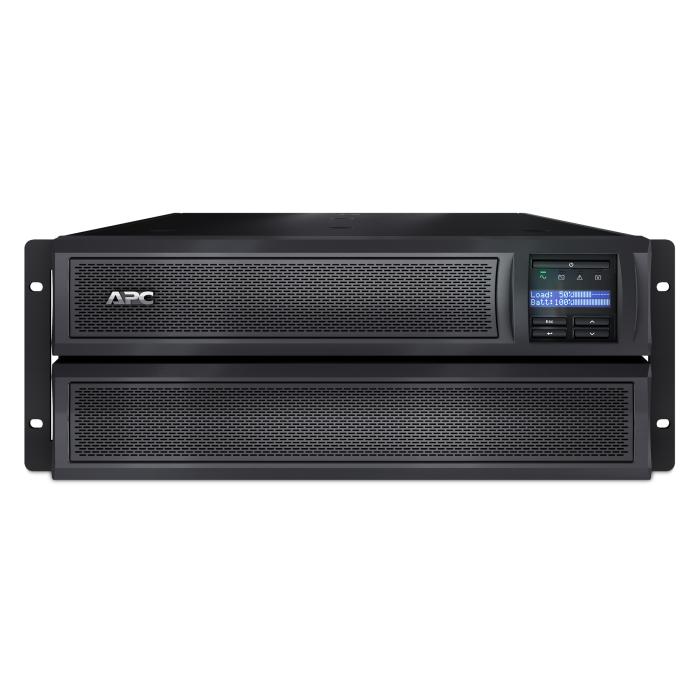

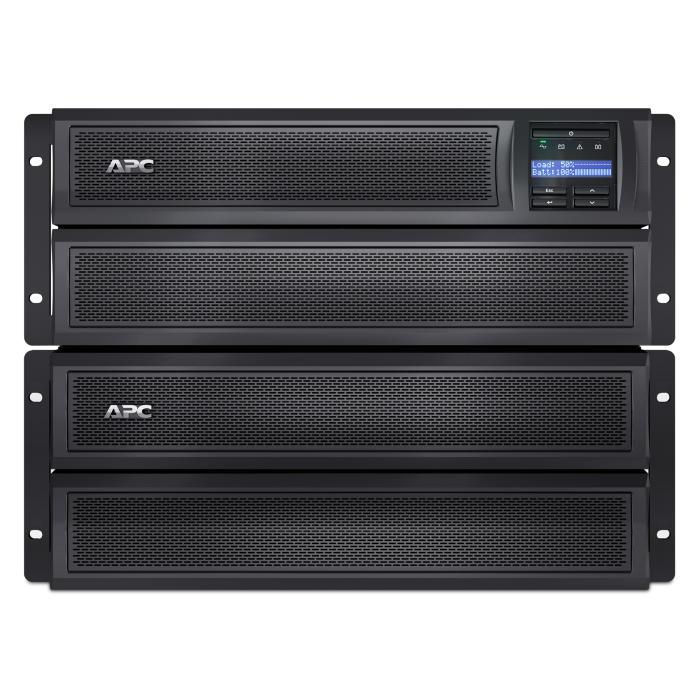

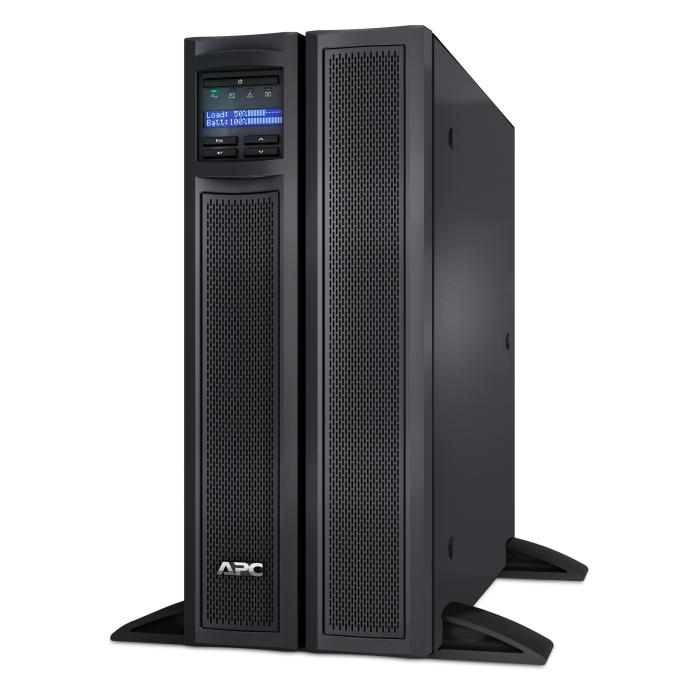

APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth

$1,949.11

$1,949.11 without VAT

Amount

Brand: APC

SKU: 74925 PRC: 73956 EAN: 731304292609 PN: SMX2200HV

Description

APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth, Line-Interactive, 2.2 kVA, 1980 W, Sine, 140 V, 280 V

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 2.2 kVA
Output power: 1980 W
Waveform: Sine
Input operation voltage (min): 140 V
Input operation voltage (max): 280 V
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 645 J
Hold time (min): 2 ms
Hold time (max): 10 ms
Efficiency: 98.1%
Emergency Power Off (EPO): Yes
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Auto-restart: Yes

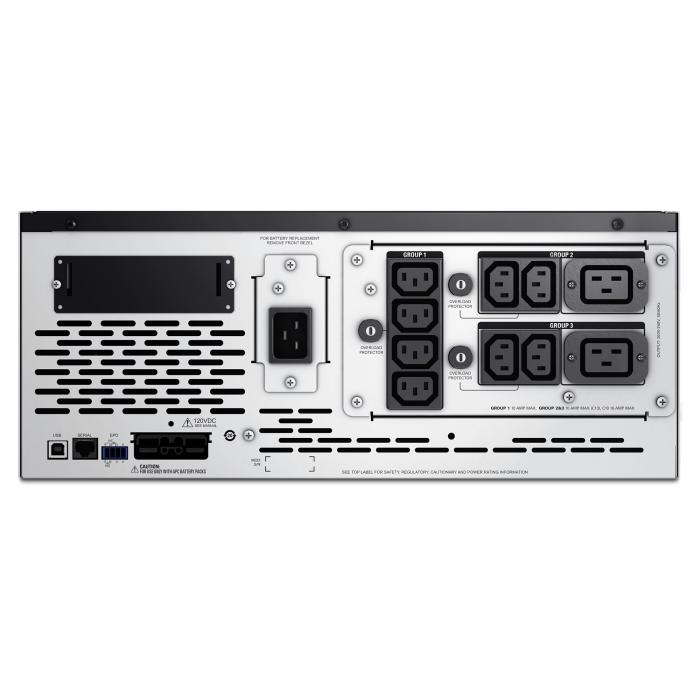

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 2
USB port: Yes
SmartSlot: Yes

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 702 VAh

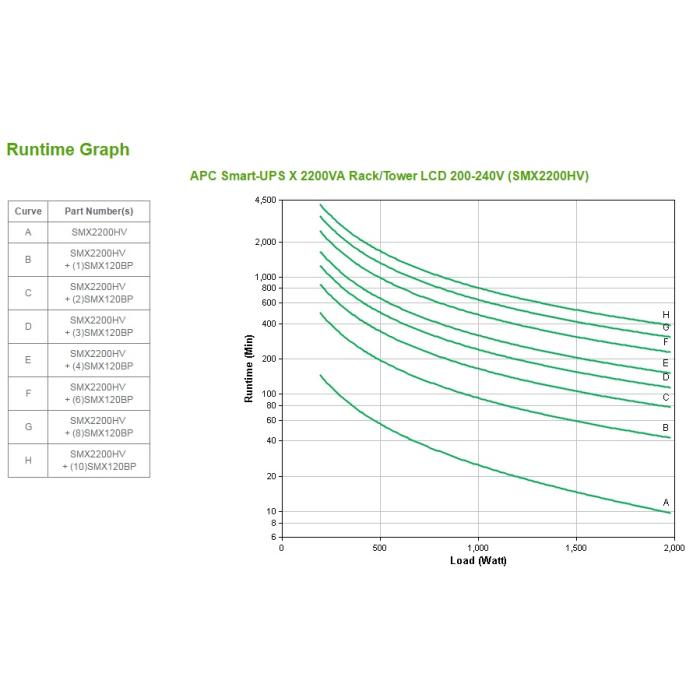

Typical backup time at full load: 9.8 min
Typical backup time at half load: 25.3 min
Battery life (max): 5 year(s)
Battery recharge time: 3 h
Hot-swap battery: Yes
Automatic battery test: Yes
Cold start: Yes

Design

Form factor: Rackmount/Tower
Rack capacity: 4U
Cable length: 2 m
Product colour: Black, Stainless steel
Display type: LCD
LED indicators: Status, Battery replacement

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE
