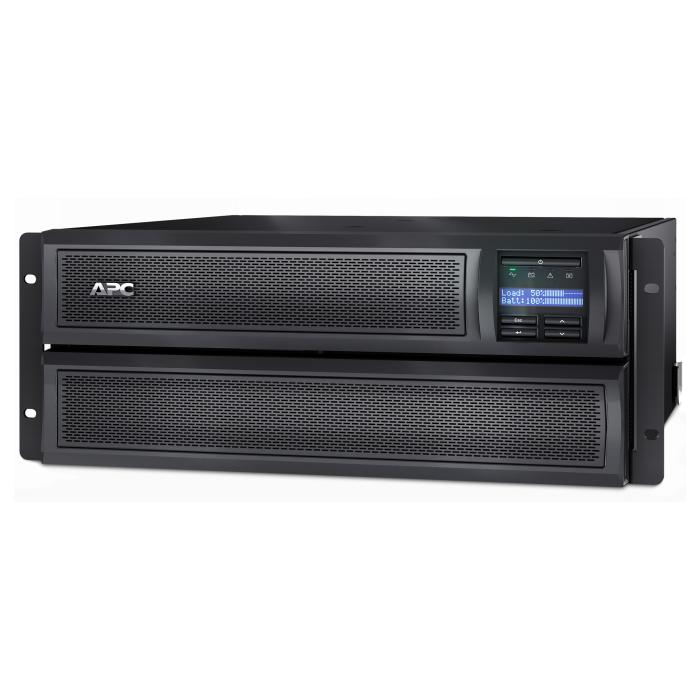

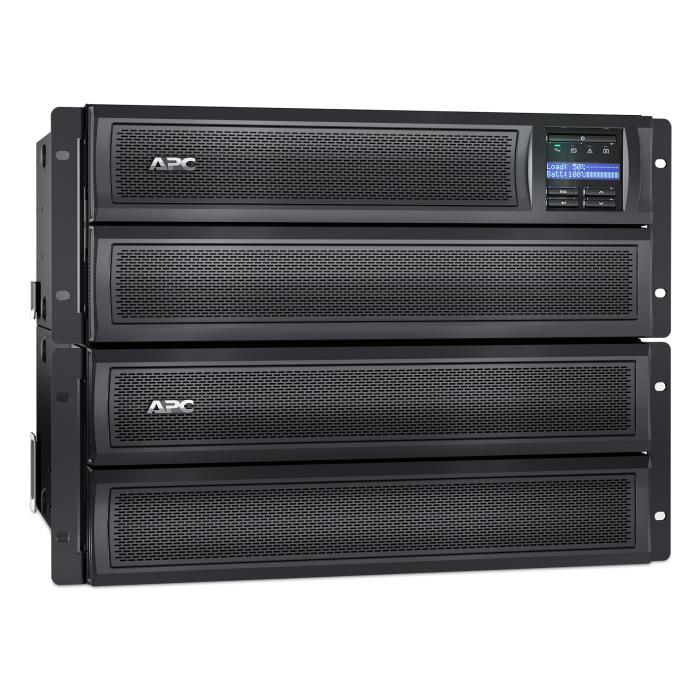

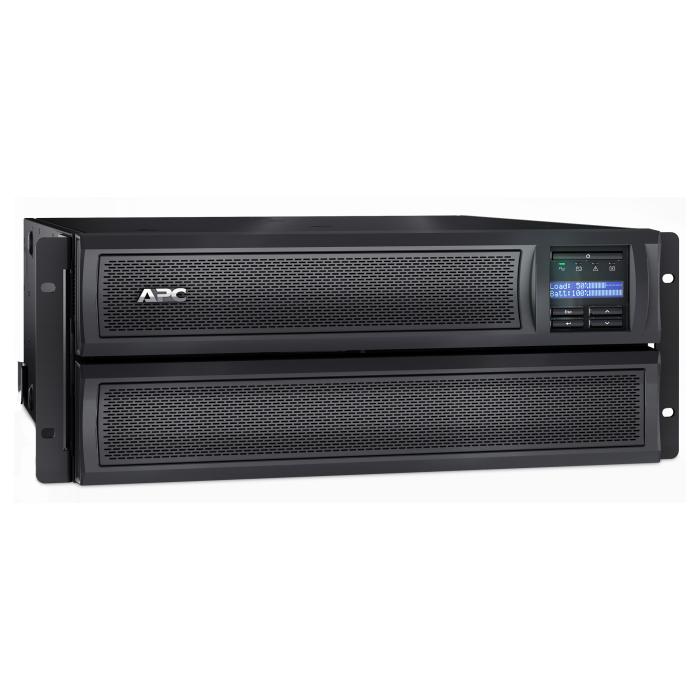

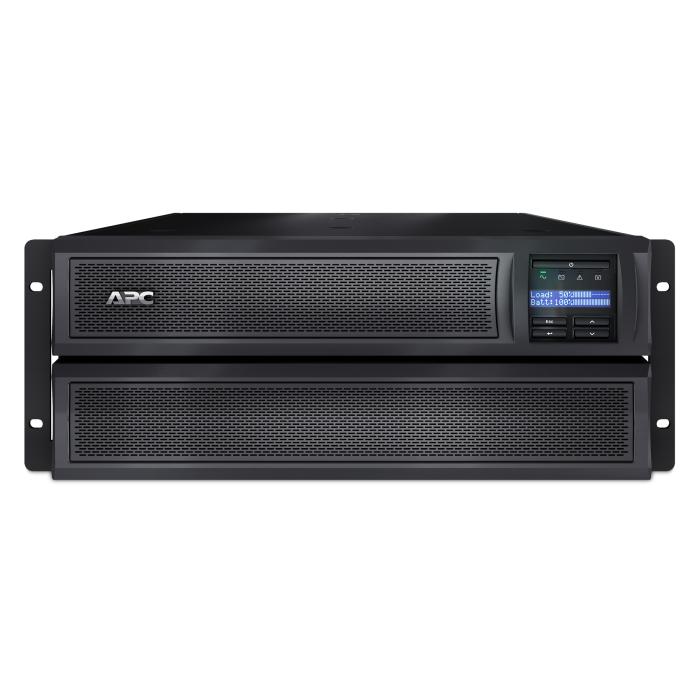

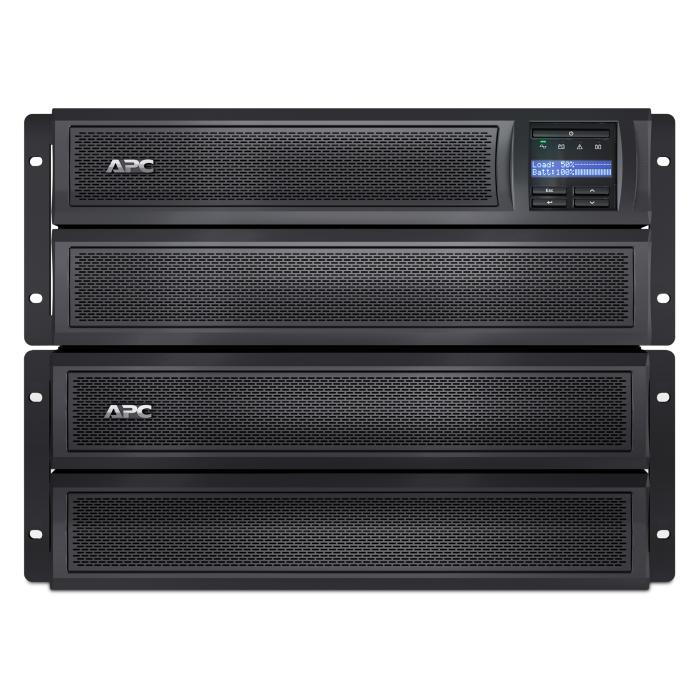

APC Smart-UPS X SMX3000HVNC - 3000VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth, NMC

Not avaliable

APC Smart-UPS X SMX3000HVNC - 3000VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth, NMC. More info

Amount

Brand: APC

SKU: 74926 PRC: 73957 EAN: 7313042926232 PN: SMX3000HVNC

Description

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Sine
Input operation voltage (min): 140 V
Input operation voltage (max): 280 V
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 645 J
Hold time (min): 2 ms
Hold time (max): 10 ms
Efficiency: 98.5%
Emergency Power Off (EPO): Yes
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Auto-restart: Yes

Ports & interfaces

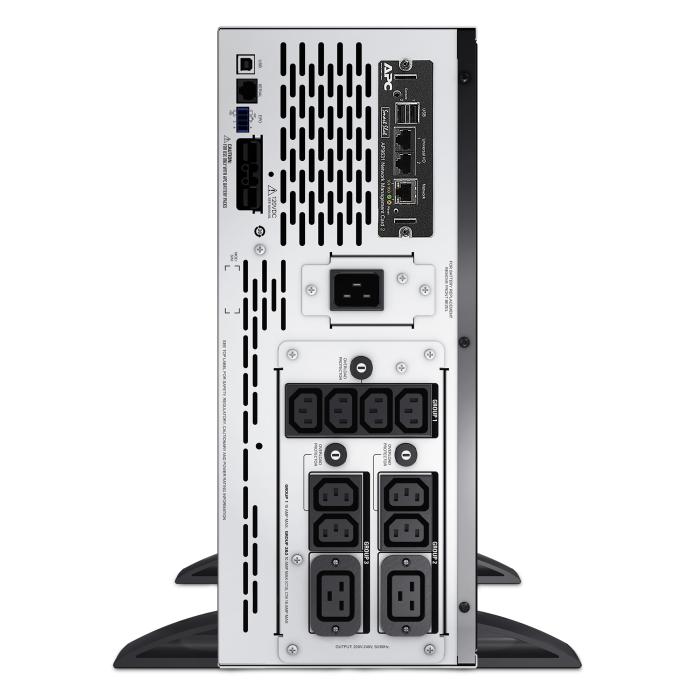

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 2
SmartSlot: Yes

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 738 VAh

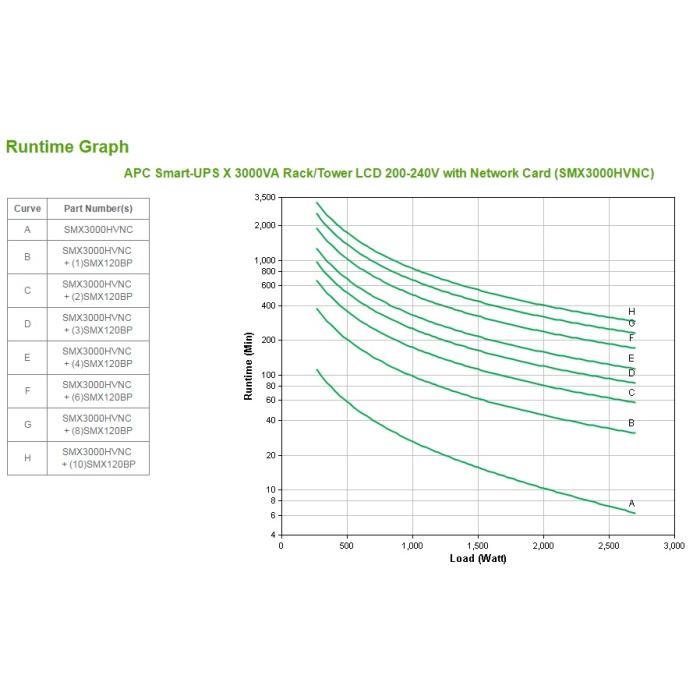

Typical backup time at full load: 6.25 min
Typical backup time at half load: 18 min
Battery life (max): 5 year(s)
Battery recharge time: 3 h
Hot-swap battery: Yes
Automatic battery test: Yes

Design

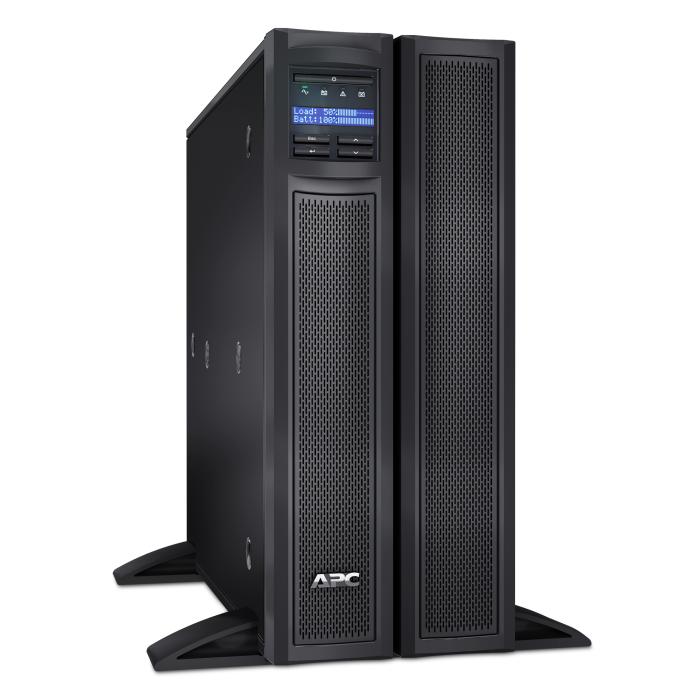

Form factor: Rackmount/Tower
Rack capacity: 4U
Cable length: 2.44 m
Product colour: Black
Display type: LCD
LED indicators: Status, Battery replacement

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH

Packaging content

Rack mount kit: Yes
Cables included: RS-232
Manual: Yes

Weight & dimensions

Width: 178 mm
Depth: 483 mm
Height: 432 mm
Weight: 38.6 kg

Packaging data

Temperature sensor: Yes
Software CD: Yes
Package width: 586 mm
Package depth: 633 mm
Package height: 330 mm
Package weight: 47.7 kg

Logistics data

Products per pallet: 6 pc(s)
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 2790.64

Other features

Nominal output voltage: 230 V
Packaging content: Web/SNMP Management Card
