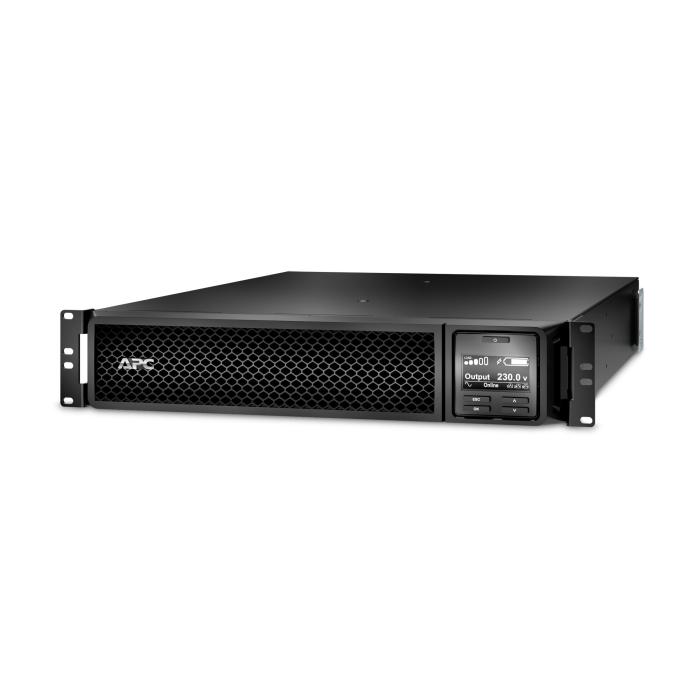

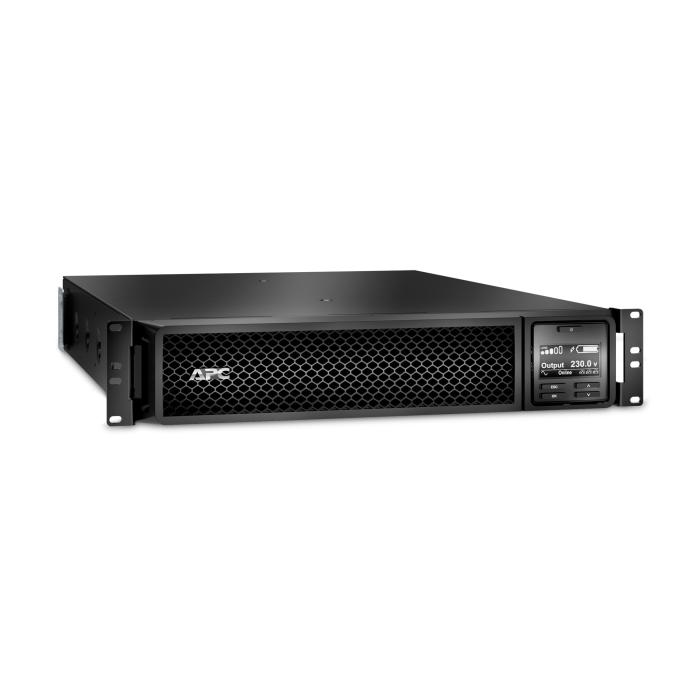

APC Smart-UPS On-Line SRT2200RMXLI - 2200VA, 8x C13 & 2x C19, rack mount

$2,313.79

$2,313.79 without VAT

APC Smart-UPS On-Line SRT2200RMXLI - 2200VA, 8x C13 & 2x C19, rack mount. More info

Amount

Brand: APC

SKU: 75943 PRC: 96477 EAN: 731304317623 PN: SRT2200RMXLI

Description

Specifications

Features

UPS topology: Double-conversion (Online)
Output power capacity: 2.2 kVA
Output power: 1980 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 275 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Surge energy rating: 340 J
Efficiency: 92.2%
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Web-based management: Yes
Auto-restart: Yes

Ports & interfaces

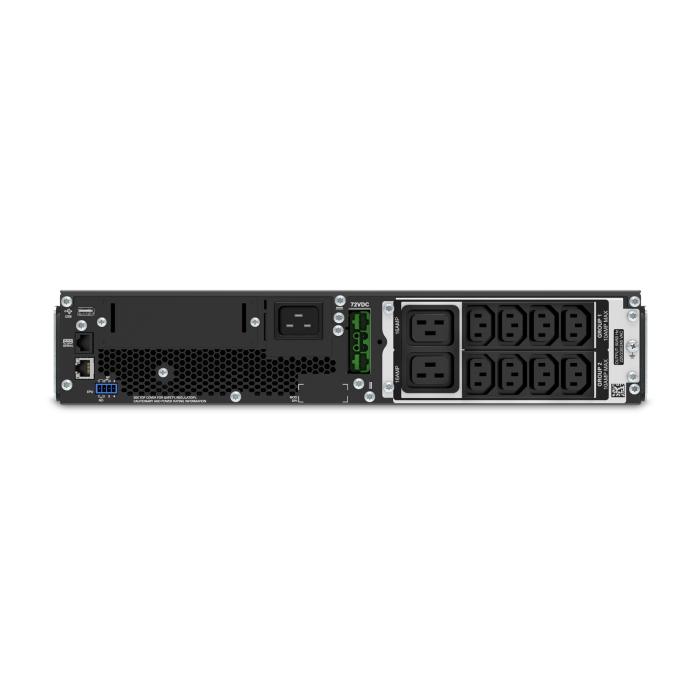

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 2
USB port: Yes
Serial interface: Yes
Serial interface type: RJ-45
SmartSlot: Yes

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 367 VAh
Number of batteries supported: 1

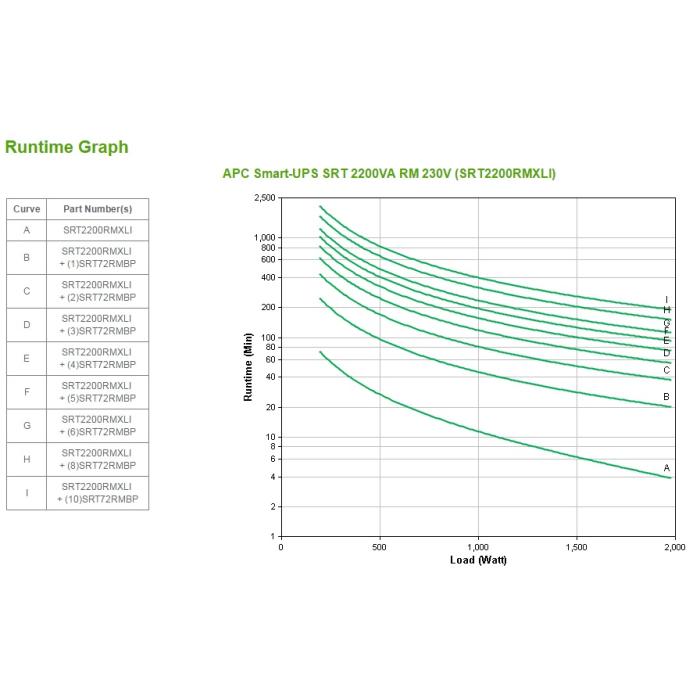

Typical backup time at full load: 3.9 min
Typical backup time at half load: 11.6 min
Battery life (max): 5 year(s)
Battery recharge time: 3 h
Hot-swap battery: Yes
Automatic battery test: Yes
Cold start: Yes

Design

Form factor: Rackmount/Tower
Rack capacity: 2U
Cable length: 2.44 m
Product colour: Black

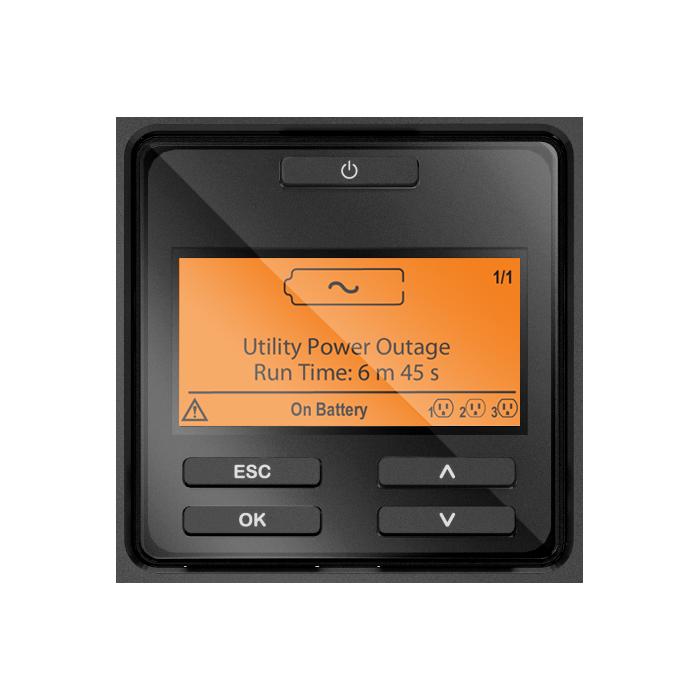

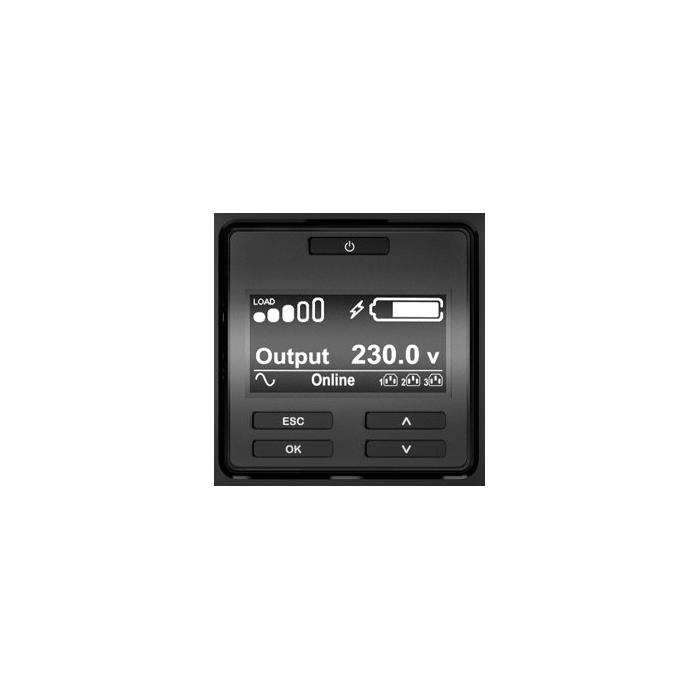

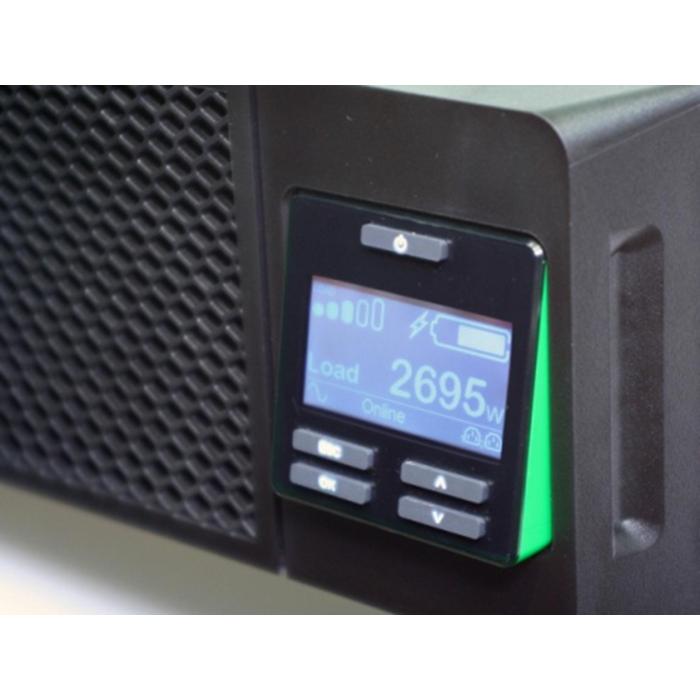

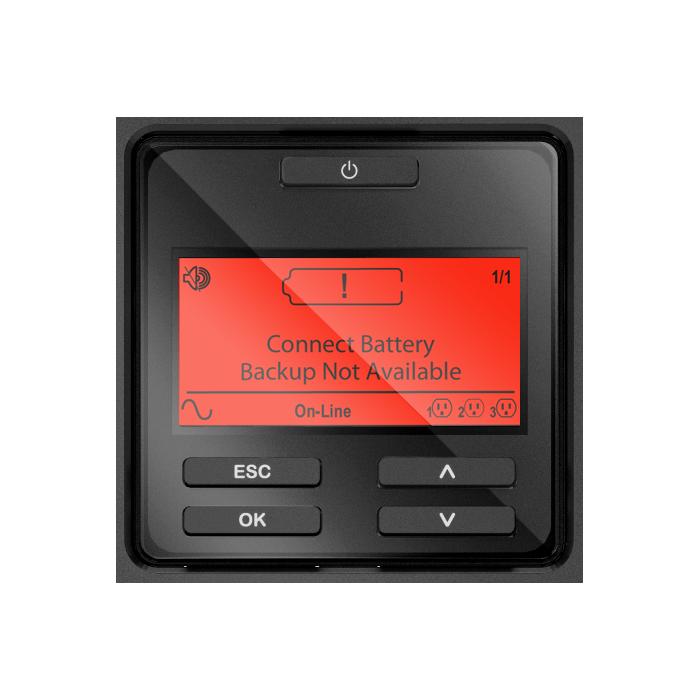

Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

Packaging content

Rack mount kit: Yes
Cables included: USB cable
Quick installation guide: Yes

Sustainability

Sustainability certificates: ENERGY STAR, Green Premium

Weight & dimensions

Width: 432 mm
Depth: 584 mm
Height: 85 mm
Weight: 25 kg

Packaging data

Bracket: Yes
Software CD: Yes
Package width: 599 mm
Package depth: 810 mm
Package height: 246 mm
Package weight: 34 kg

Logistics data

Products per pallet: 12 pc(s)
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 3656.4

Other features

Nominal output voltage: 230 V
Nominal input voltage: 230 V
