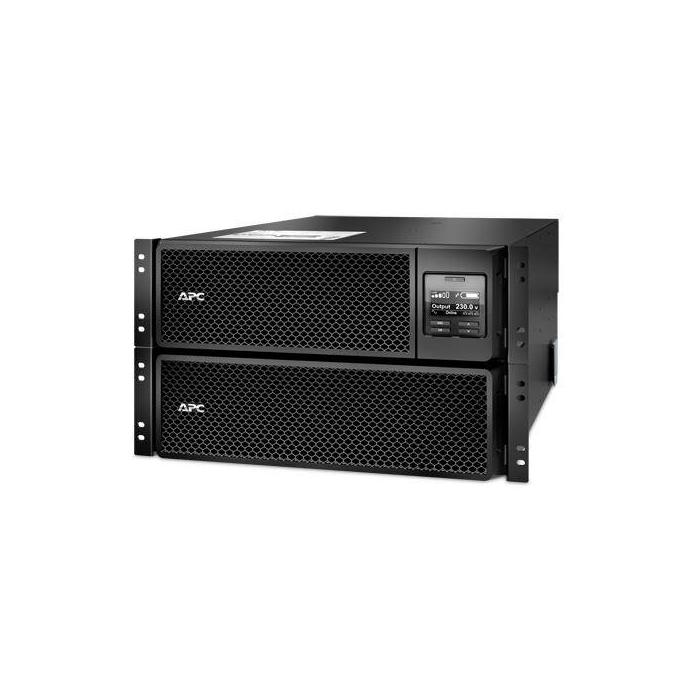

APC Smart-UPS On-Line SRT8KRMXLI - 8kW/VA, 6x C13 + 4x C19 + hardwire 1phase output, rack mountable, Embedded NMC

Return

Few units

APC Smart-UPS On-Line SRT8KRMXLI - 8kW/VA, 6x C13 + 4x C19 + hardwire 1phase output, rack mountable, Embedded NMC

$8,170.64

$8,170.64 without VAT

More info

Amount

Brand: APC

SKU: 112364 PRC: 74240 EAN: 7313043042962 PN: SRT8KRMXLI

Description

APC Smart-UPS On-Line SRT8KRMXLI - 8kW/VA, 6x C13 + 4x C19 + hardwire 1phase output, rack mountable, Embedded NMC, Double-conversion (Online), 8 kVA, 8000 W, Sine, 100 V, 476 V

Specifications

Features

UPS topology: Double-conversion (Online)
Output power capacity: 8 kVA
Output power: 8000 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 476 V
Input frequency: 40 - 70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Surge energy rating: 480 J
Number of output phases: 1
Efficiency: 94.8%
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Output voltage Total Harmonic Distortion (THD): 3%
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Auto-restart: Yes

Ports & interfaces

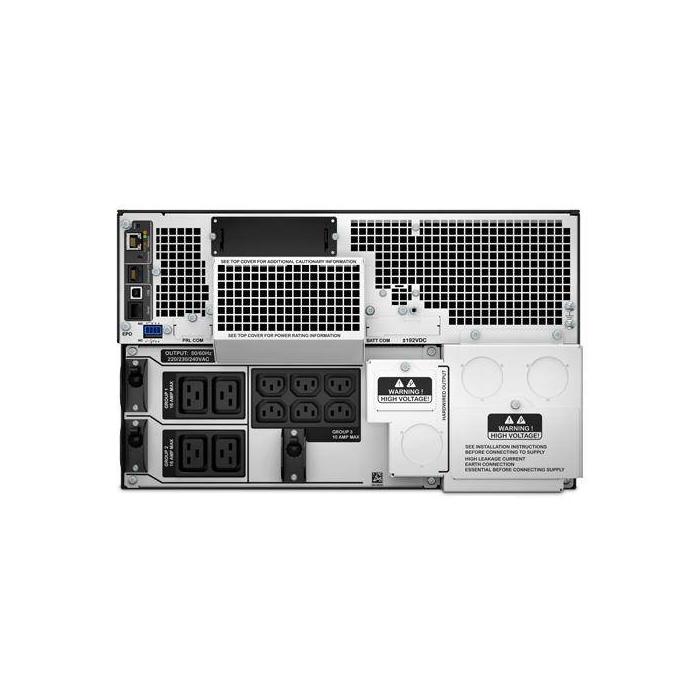

AC outlet types: C13 coupler, C19 coupler
Power plug: Hardwire
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 3
USB port: Yes
Serial interface: Yes
Serial interface type: RJ-45
SmartSlot: Yes

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 1728 VAh
Typical backup time at full load: 5.2 min
Typical backup time at half load: 14.5 min
Battery life (max): 5 year(s)
Battery recharge time: 1.5 h
Hot-swap battery: Yes
Automatic battery test: Yes
Cold start: Yes

Design

Form factor: Rackmount/Tower
Rack capacity: 6U
Product colour: Black
Display type: LCD
LED indicators: Status

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Packaging content

Rack mount kit: Yes
Cables included: USB cable
Quick installation guide: Yes

Weight & dimensions

Width: 715 mm
Depth: 432 mm
Height: 263 mm
Weight: 111.8 kg

Packaging data

Bracket: Yes
Temperature sensor: Yes
Warranty card: Yes
Software CD: Yes
Package width: 600 mm
Package depth: 1000 mm
Package height: 461 mm
Package weight: 130 kg

Logistics data

Products per pallet: 1 pc(s)
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 18632.76

Other features

Packaging content: Web/SNMP Management Card
