Description
The APC SRT2200RMXLI-NC online double-conversion UPS delivers 2.2 kVA and 1980 W of power with 12 AC outputs, ideal for protecting critical network equipment. It features an audible alarm, emergency power-off, and pure sine wave output with a total harmonic distortion of 2%. Its input voltage range spans from 160 to 275 V and frequency from 40 to 70 Hz, while the output adjusts between 220 and 240 V. It has 2 IEC output banks, an RJ-45 Ethernet port, and USB connection for management. Its noise level is 55 dB and the surge energy rating reaches 340 joules, with a crest factor of 3:1.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 2.2 kVA
- Output power: 1980 W
- Waveform: Sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 275 V
- Input frequency: 40 - 70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Surge energy rating: 340 J
- Crest factor: 3:1
- Emergency Power Off (EPO): Yes
- Output voltage Total Harmonic Distortion (THD): 2%
- Noise level: 55 dB
- Audible alarm(s): Yes

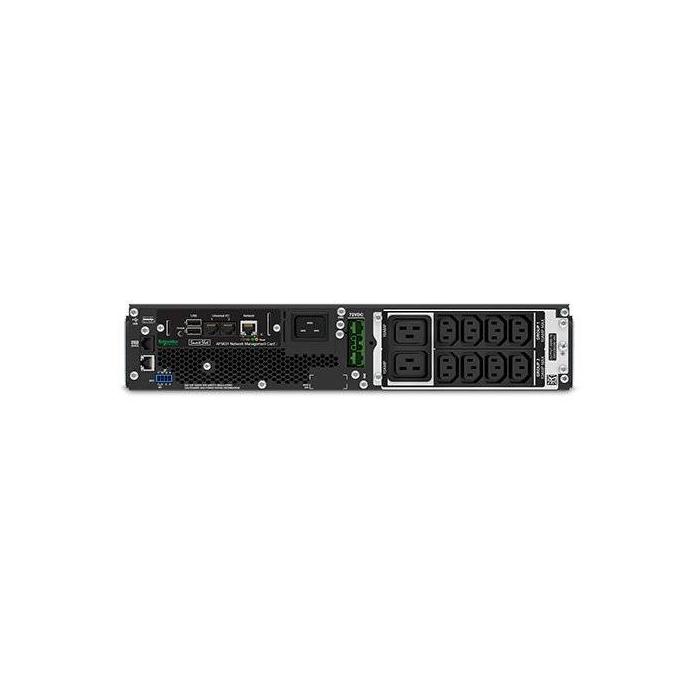

Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- AC outlets quantity: 12 AC outlet(s)
- Number of output IEC jumpers: 2
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RJ-45
- Ethernet LAN (RJ-45) ports: 1
- SmartSlot: Yes
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 367 VAh
- Number of batteries supported: 1
- Battery life (max): 5 year(s)
- Battery recharge time: 3 h
Design
- Form factor: Rackmount
- Rack capacity: 2U
- Cable length: 2.44 m
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
- International Protection (IP) code: IP20
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Certificates
- Compliance certificates: RoHS
- Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Sustainability
- Sustainability certificates: ENERGY STAR, Green Premium
Weight & dimensions
- Width: 432 mm
- Depth: 584 mm
- Height: 85 mm
- Weight: 25 kg
Packaging data
- Package width: 599 mm
- Package depth: 810 mm
- Package height: 246 mm
- Package weight: 34 kg
Logistics data
- Harmonized System (HS) code: 85078000
- Total carbon footprint (kg of CO2e): 3656.79
Other features
- Output voltage: 230 V
