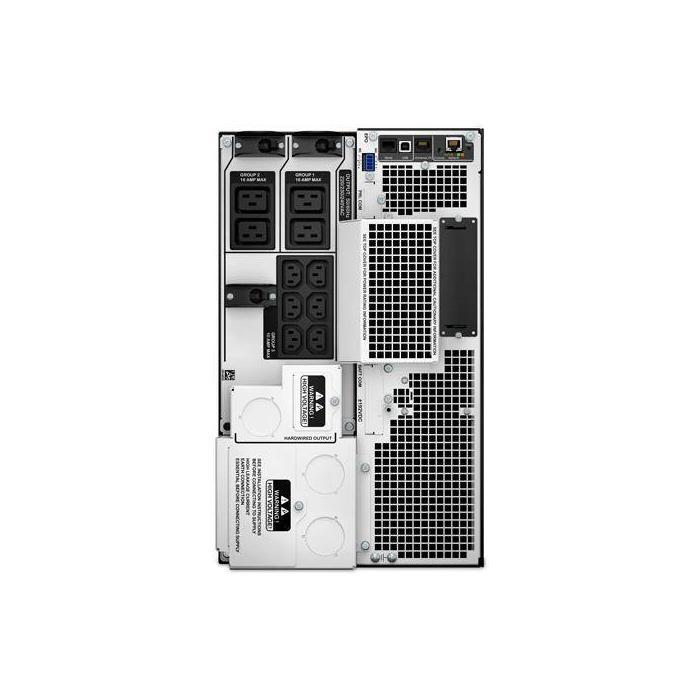

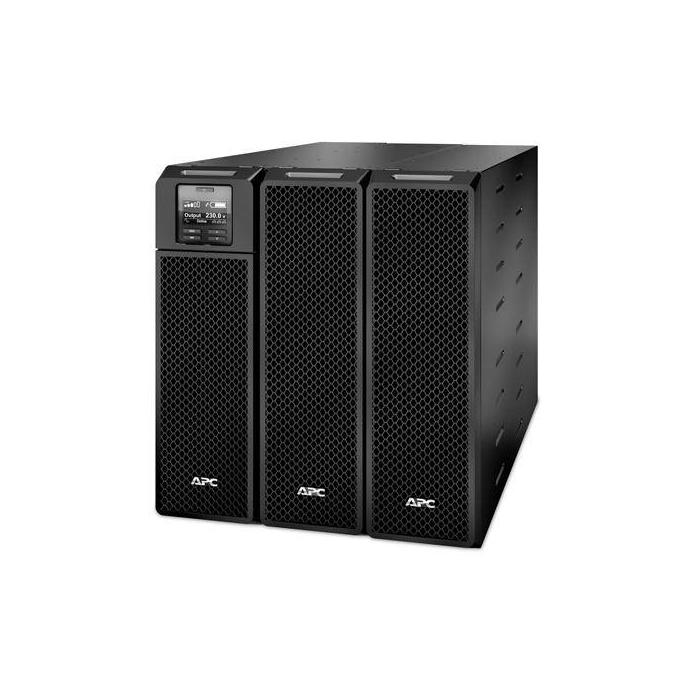

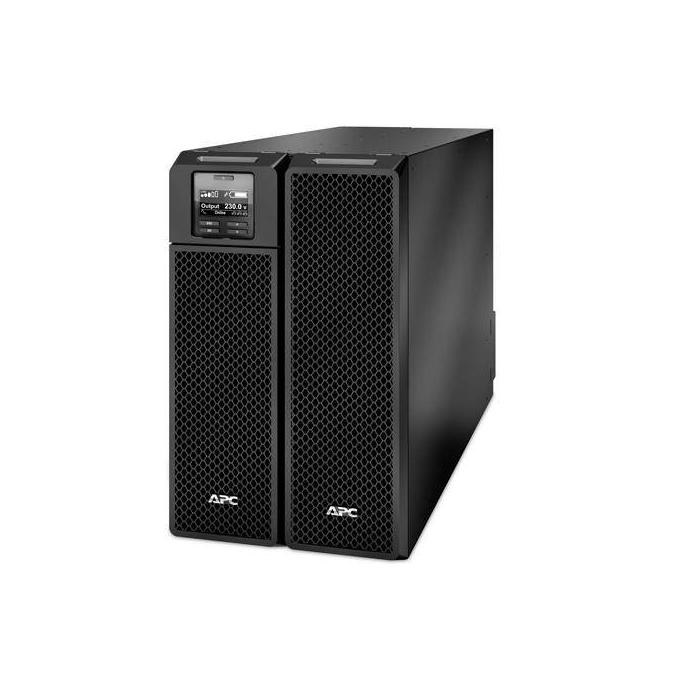

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Return

Few units

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

$9,563.67

$9,563.67 without VAT

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit. More info

Amount

Brand: APC

SKU: 113341 PRC: 55749 EAN: 7313043042726 PN: SRT10KXLI

Description

Specifications

Features

UPS topology: Double-conversion (Online)
Output power capacity: 10 kVA
Output power: 10000 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 476 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Surge energy rating: 480 J
Number of output phases: 1
Efficiency: 94.6%
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Noise level: 55 dB
Audible alarm(s): Yes
Auto-restart: Yes

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: Hardwire
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 3
USB port: Yes
Serial interface: Yes
Serial interface type: RJ-45
SmartSlot: Yes

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 1805 VAh
Typical backup time at full load: 3.8 min
Typical backup time at half load: 11.5 min
Battery life (max): 5 year(s)
Battery recharge time: 1.5 h
Hot-swap battery: Yes
Automatic battery test: Yes
Cold start: Yes

Design

Form factor: Rackmount/Tower
Product colour: Black
LED indicators: Yes
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

Packaging content

Cables included: USB cable
Quick installation guide: Yes

Sustainability

Sustainability certificates: ENERGY STAR

Weight & dimensions

Width: 263 mm
Depth: 715 mm
Height: 432 mm
Weight: 111.8 kg

Packaging data

Temperature sensor: Yes
Warranty card: Yes
Software CD: Yes
Package width: 600 mm
Package depth: 1000 mm
Package height: 461 mm
Package weight: 126.8 kg

Logistics data

Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 22851.99

Other features

Interface: RJ-45 10/100 Base-T
Nominal output voltage: 230 V
Nominal input voltage: 230 V
Packaging content: Web/SNMP Management Card
