APC Smart-UPS On-Line, 5kVA, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Return

Few units

APC Smart-UPS On-Line, 5kVA, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

$4,849.44

$4,849.44 without VAT

More info

Amount

Brand: APC

SKU: 71865 PRC: 31350 EAN: 731304301615 PN: SRT5KXLI

Description

APC Smart-UPS On-Line, 5kVA, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit, Double-conversion (Online), 5 kVA, 4500 W, Sine, 100 V, 275 V

Specifications

Features

UPS topology: Double-conversion (Online)
Output power capacity: 5 kVA
Output power: 4500 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 275 V
Input frequency: 40 - 70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Surge energy rating: 480 J
Efficiency: 94.1%
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Auto-restart: Yes

Ports & interfaces

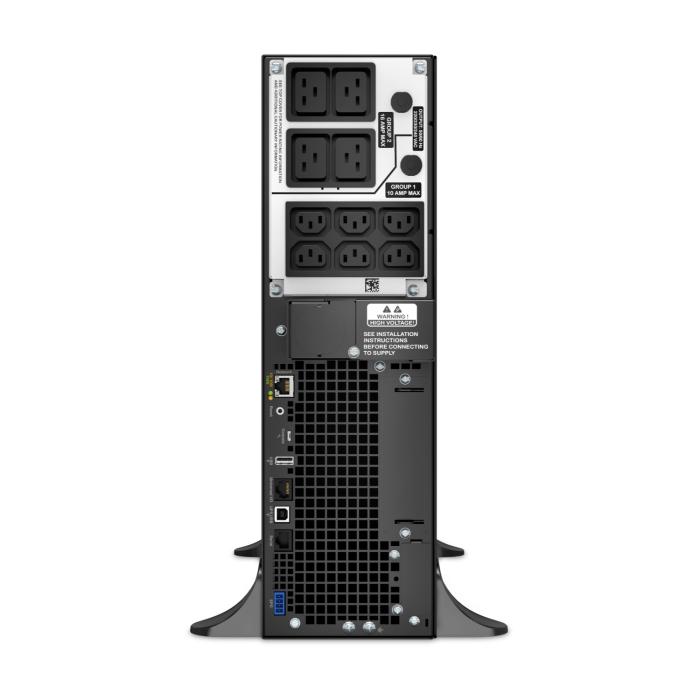

AC outlet types: C13 coupler, C19 coupler
Power plug: Hardwire
AC outlets quantity: 12 AC outlet(s)
Number of output IEC jumpers: 2
USB port: Yes
Serial interface: Yes
Serial interface type: RJ-45
SmartSlot: Yes

Battery

Battery recharge time: 1.5 h
Hot-swap battery: Yes
Automatic battery test: Yes
Cold start: Yes
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 845 VAh

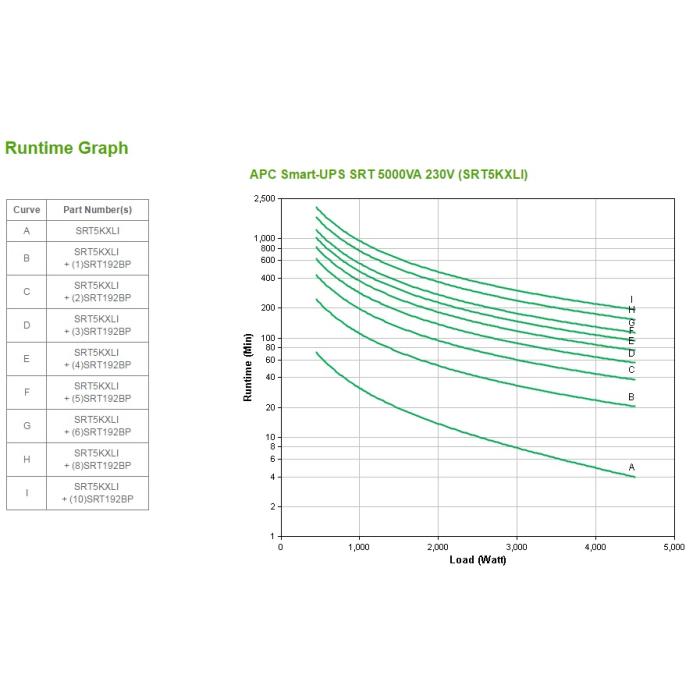

Typical backup time at full load: 4 min
Typical backup time at half load: 11.8 min
Battery life (max): 5 year(s)

Design

Product colour: Black
Display type: LCD
LED indicators: Status
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Packaging content

Cables included: USB cable
Quick installation guide: Yes

Sustainability

Sustainability certificates: ENERGY STAR

Weight & dimensions

Width: 130 mm
Depth: 719 mm
Height: 432 mm
Weight: 54.4 kg

Packaging data

Temperature sensor: Yes
Warranty card: Yes
Software CD: Yes
Package width: 610 mm
Package depth: 960 mm
Package height: 330 mm
Package weight: 63.6 kg

Logistics data

Products per pallet: 6 pc(s)
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 8386.06

Other features

Packaging content: Comms cable Removable support feet Web/SNMP Management Card
