Description

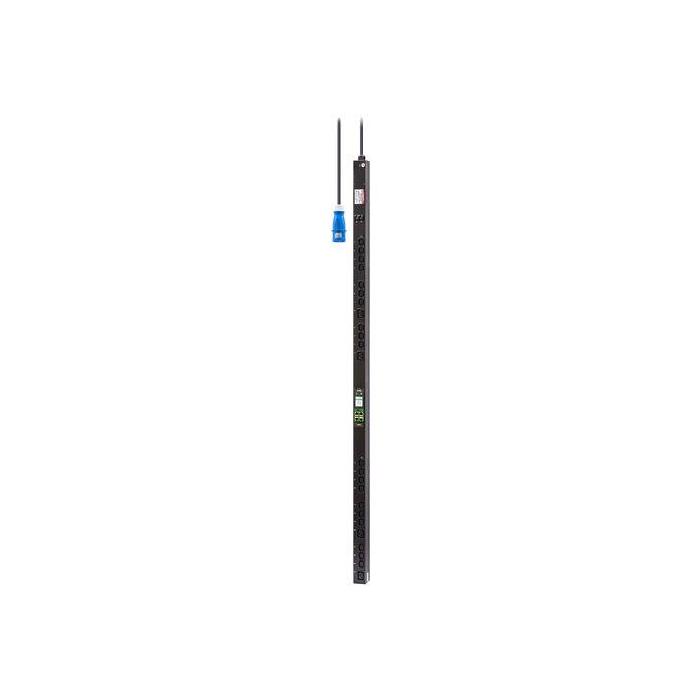

The APC EPDU2132MBO energy distribution unit, in its black 0U vertical-mount variant, is a metered single-phase PDU with a metal housing and LCD screen. It offers 24 AC outlets distributed among C13 and C19 couplers, with an IEC 60309 input connector, and manages up to 7360 VA of load at 230 V, with a maximum current of 32 A. It includes an RJ-45 Ethernet port and a USB port for monitoring, plus a 3-metre cable that facilitates installation in the rack. Its vertical, zero-U design frees up useful rack space for other equipment, while the direct panel readout provides real-time electrical status information.
Specifications
Design
- PDU types: Metered
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Housing material: Metal
- Product colour: Black
- Display: LCD
Ports & interfaces
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC 60309
- AC outlet types: C13 coupler, C19 coupler
- Ethernet LAN (RJ-45) ports: 1
- USB ports quantity: 1
Features
- Cable length: 3 m
Power
- Nominal input voltage: 230 V
- AC input frequency: 50/60 Hz
- Maximum current: 32 A
- Output voltage: 200-240 V
- Load capacity: 7360 VA
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 55 mm
- Depth: 56 mm
- Height: 1800 mm
- Weight: 7.12 kg
Packaging data
- Package weight: 8.29 kg
- Package width: 195 mm
- Package depth: 130 mm
- Package height: 2030 mm
