Description

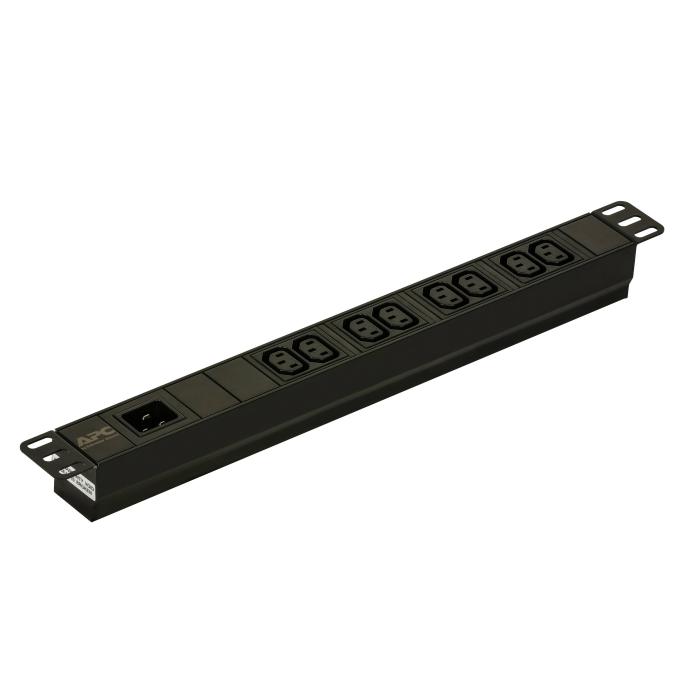

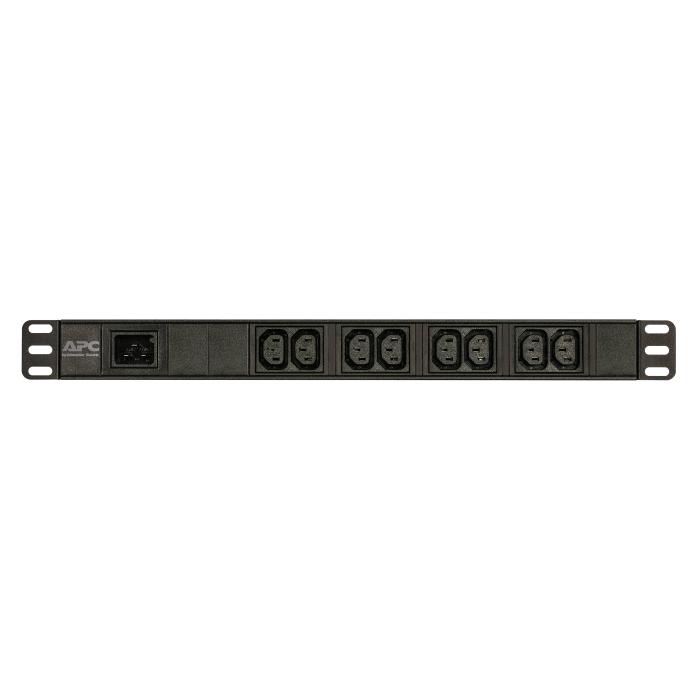

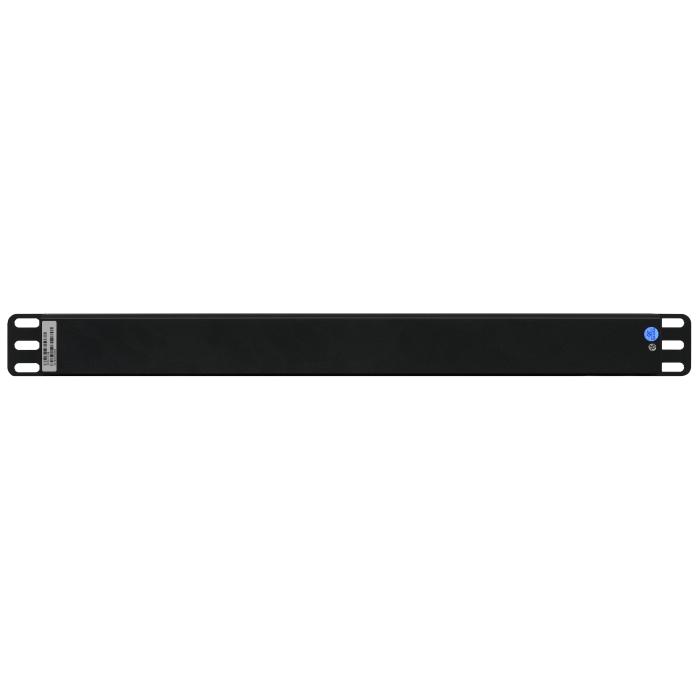

APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet, Basic, 1U, Single-phase, Horizontal, Aluminium, Black
Specifications
Design
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 1U
- Mounting: Horizontal
- Housing material: Aluminium
- Product colour: Black
- On/off switch: No
Ports & interfaces
- AC outlets quantity: 8 AC outlet(s)
- Power plug: C20 coupler
- AC outlet types: C13 coupler
Features
- Daisy chain: No
- Cable length: 2.5 m
Power
- Nominal input voltage: 200/208/230 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 16 A
- Nominal output voltage: 208/230 V
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum power: 3680 W
Certificates
- Compliance certificates: RoHS
- Certification: CE, TUV
Operational conditions
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Weight & dimensions
- Width: 482 mm
- Depth: 44 mm
- Height: 44 mm
- Weight: 580 g
Packaging content
- Manual: Yes
Packaging data
- Package weight: 1.18 kg
- Package width: 560 mm
- Package depth: 80 mm
- Package height: 150 mm
