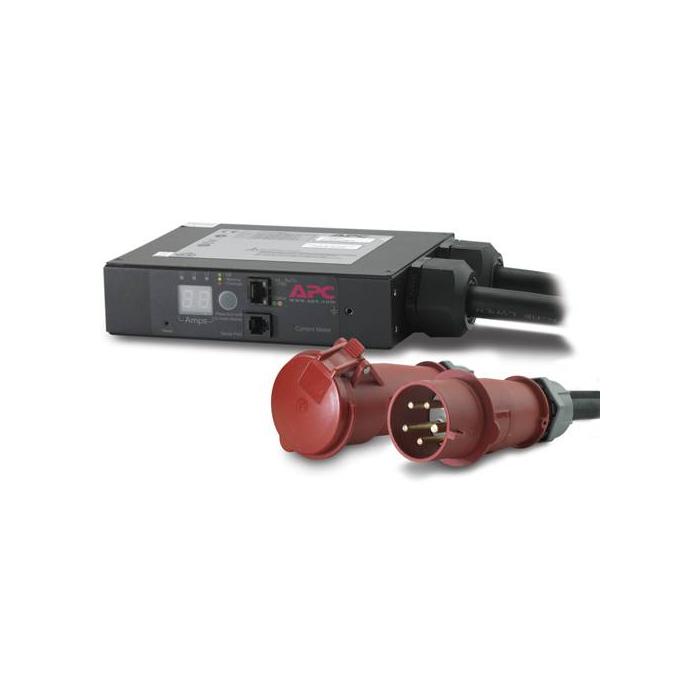

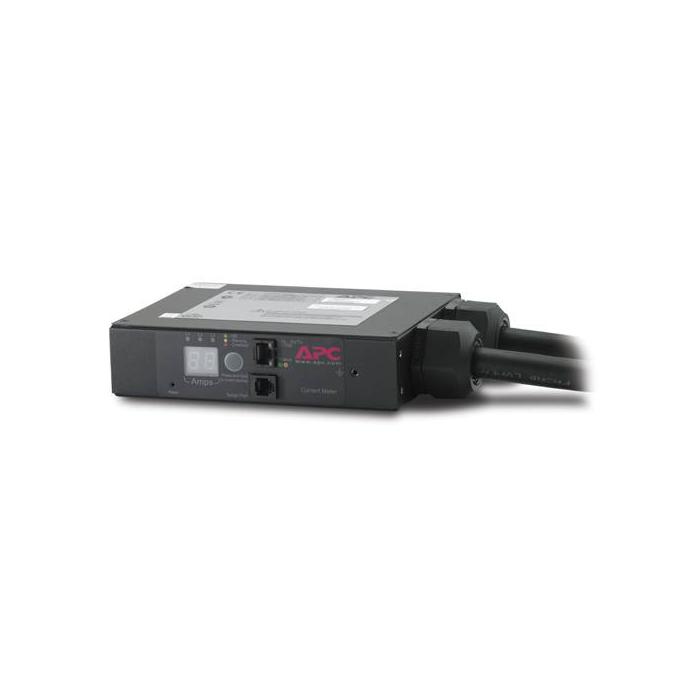

APC AP7175B power distribution unit (PDU) 1 AC outlet(s) Black

640.00 €
528.93 € without VAT

More info

Brand: APC
SKU: 79103 PRC: 158564 EAN: 731304331445 PN: AP7175B

Description

APC AP7175B, Metered, Three-phase, Black, LED, 1 AC outlet(s), IEC 309 32A 3P+N+E

Specifications

Design

  • PDU types: Metered
  • Type: Three-phase
  • Product colour: Black
  • Display: LED

Ports & interfaces

  • AC outlets quantity: 1 AC outlet(s)

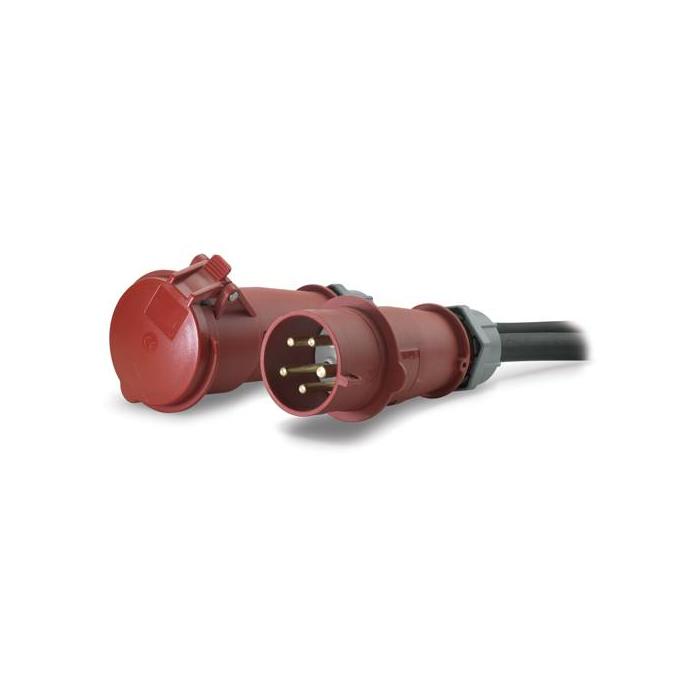

  • Input connection type: IEC 309 32A 3P+N+E
  • Output connections: IEC 309 32A 3P+N+E

Features

  • Cable length: 0.91 m

Management features

  • Monitoring: Current

Power

  • Nominal input voltage: 400 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 32 A
  • Nominal output voltage: 230 V
  • Load capacity: 22080 VA

Certificates

  • Compliance certificates: RoHS

Operational conditions

  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 15000 m

Weight & dimensions

  • Width: 178 mm
  • Depth: 140 mm
  • Height: 44 mm
  • Weight: 2.89 kg

Packaging content

  • Cables included: RS-232
  • Manual: Yes

Packaging data

  • Package weight: 3.52 kg
  • Package width: 330 mm
  • Package depth: 185 mm
  • Package height: 246 mm
