Description

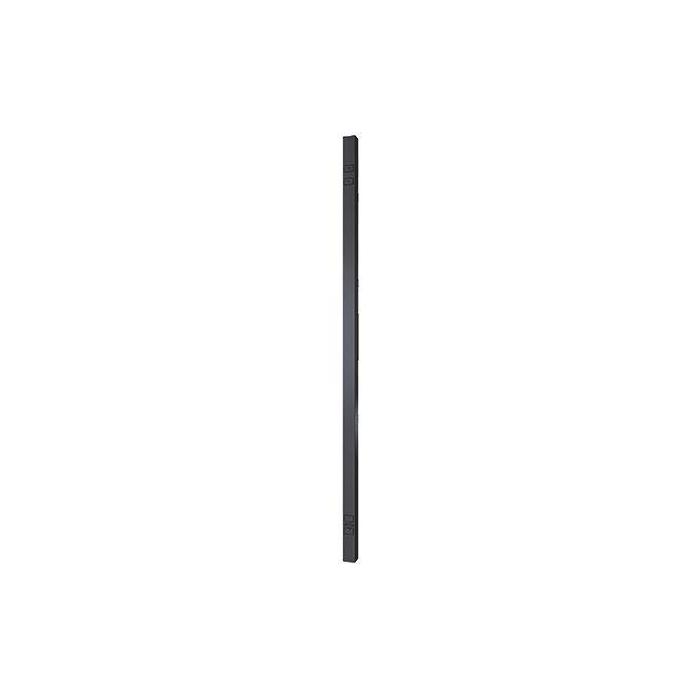

APC AP8453 power distribution unit (PDU) 0U black vertical rack mount, designed for installation in server racks. It offers 24 AC outlets combined between C13 and C19 couplers, with an IEC309 connection and a 3.05-metre cable. It allows current, power and voltage monitoring, and supports a maximum load of 7680 VA or 7680 W at 230 V, with a maximum current of 32 A per phase. Its single-phase type and EN 55022 A, EN 55024 and VDE certifications guarantee regulated and supervised operation in professional environments.
Specifications
Design
- PDU types: Metered, Metered-by-outlet
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
Ports & interfaces
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler
Features
- Cable length: 3.05 m
Management features
- Monitoring: Current, Power, Voltage
Power
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Nominal output voltage: 230 V
- Load capacity: 7680 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Maximum power: 7680 W
Certificates
- Compliance certificates: RoHS
- Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Operational conditions
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
Weight & dimensions
- Width: 56 mm
- Depth: 51 mm
- Height: 1829 mm
- Weight: 8.21 kg
Packaging data
- Package weight: 10.5 kg
- Package width: 163 mm
- Package depth: 117 mm
- Package height: 2037 mm
Logistics data
- Total carbon footprint (kg of CO2e): 5046.47
