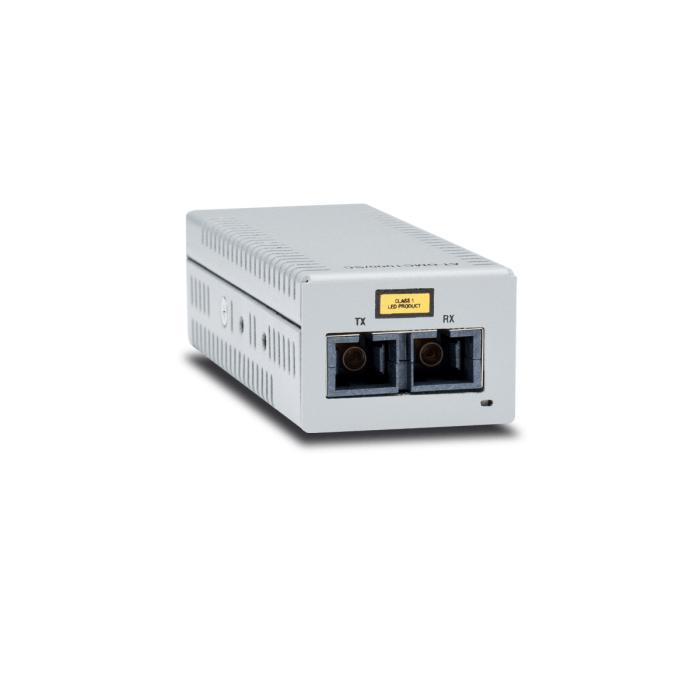

Allied Telesis DMC1000/SC network media converter 1000 Mbit/s 850 nm Multi-mode Grey

Not avaliable

Allied Telesis DMC1000/SC network media converter 1000 Mbit/s 850 nm Multi-mode Grey.   More info

Brand: ALLIED TELESIS
SKU: 78828 PRC: 155719 EAN: 767035206691 PN: 990-004825-50

Description

Specifications

Network

  • Maximum data transfer rate: 1000 Mbit/s
  • Converter input interface: 1000Base-T
  • Converter output interface: 1000Base-SX
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Duplex system: Full, Half
  • Link Loss Carry Forward (LLCF) supported: Yes
  • Link Loss Return (LLR) supported: Yes

Performance

  • Maximum transfer distance: 550 m
  • Wavelength: 850 nm
  • Fiber mode structure: Multi-mode
  • Fiber cable diameters supported (core/cladding): 50/125, 62.5/125 µm
  • Tx power (min): -9.5 dBmW
  • Tx power (max): -4 dBmW
  • Rx power (min): -17 dBmW
  • Rx power (max): -20 dBmW

Features

  • Internal: No
  • LED indicators: Yes
  • Product colour: Grey
  • DIN rail mounting: Yes

Ports & interfaces

  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 1
  • Fiber optic connector: SC

Weight & dimensions

  • Width: 31.8 mm
  • Depth: 91.4 mm
  • Height: 21.6 mm
  • Weight: 113 g

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3048 m

Certificates

  • Compliance certificates: RoHS
