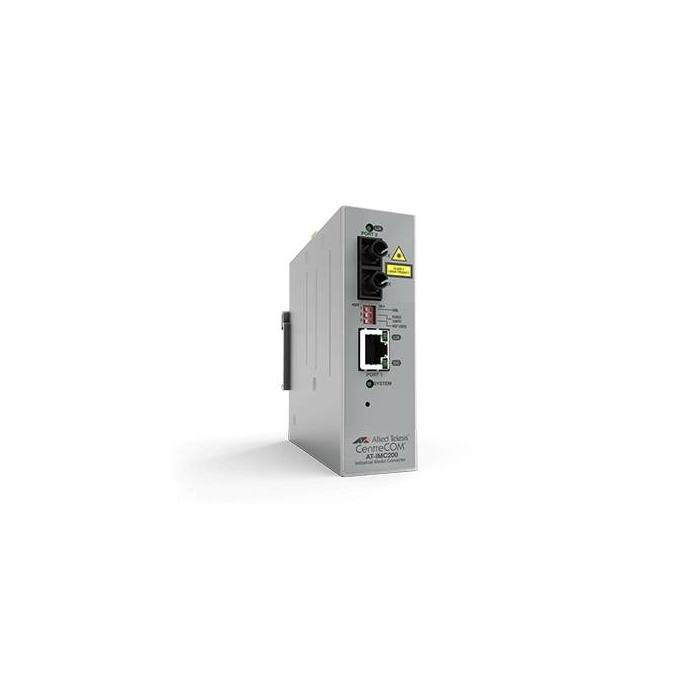

Allied Telesis AT-IMC200T/SC-980 network media converter 100 Mbit/s 1310 nm Grey

Return

Product 1 image

Allied Telesis AT-IMC200T/SC-980 network media converter 100 Mbit/s 1310 nm Grey

Not avaliable

Allied Telesis AT-IMC200T/SC-980 network media converter 100 Mbit/s 1310 nm Grey. More info

Amount

Brand: ALLIED TELESIS

SKU: 115930 PRC: 268182 EAN: 767035210520 PN: 990-005558-980

Description

Specifications

Network

Store-and-forward: Yes
Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-T, 1000Base-T
Converter output interface: 100Base-FX
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10, 100 Mbit/s
Packet forwarding rate (10 Mbps): 14880 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (1 Gbps): 1488000 pps
Jumbo frames support: Yes
Jumbo frames: 10000
VLAN support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes

Performance

Maximum transfer distance: 2000 m
Wavelength: 1310 nm
Tx power (min): -19 dBmW
Tx power (max): -14 dBmW
Rx power (min): -32 dBmW
Rx power (max): -3 dBmW

Features

Internal: No
LED indicators: Yes
Product colour: Grey
International Protection (IP) code: IP30
DIN rail mounting: Yes

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Input voltage: 12 - 48 V

Weight & dimensions

Width: 111 mm
Depth: 96 mm
Height: 35 mm
Weight: 748 g

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m

Certificates

Compliance certificates: RoHS
Safety: UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark)
Certification: TAA EMI/Emission & Stability FCC Class A EN55024 (immunity standard) EN55032 Class A EN55035 VCCI Class A
